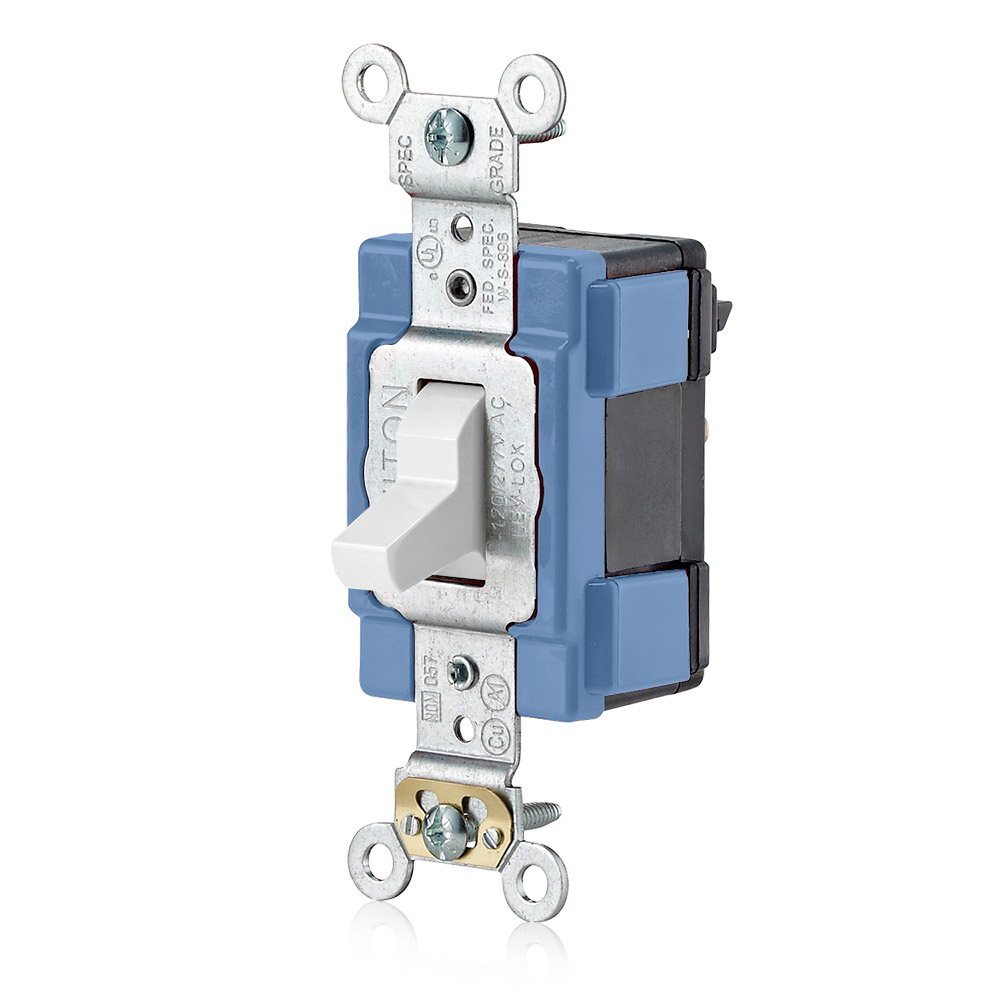

Lev-Lok 3-Way Illuminated Toggle Switch 15 Amp, 120 Volt, Extra Heavy Duty Specification Grade, Self Grounding, Lev-Lok Modular

• Calculate Time & Money Saved!

Patents

• CA2655707
• CA2667092
• US7357652
• US7666010
• US7955096
• US8096818
• US8613624

NEMA

• WD-1
• WD-6

Color Variations

• White

• Country of Origin: Mexico
• RoHS Compliant: Yes

AC Horsepower Ratings

• HP Rating: 1/2HP-120V, 12A Max

Electrical Specifications

• Amperage: 15 A
• Dielectric Voltage: Withstands 1500V for 1 minute
• Endurance: 50,000 cycles minimum
• Grounding: Self-Grounding
• Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
• Temperature Rise: Maximum 30 degrees C rise
• Voltage: 120 VAC

Environmental Specifications

• Flammability: Rated V-2 per UL 94
• Operating Temperature: -40°C to 65°C

Material Specifications

• Base Material: PBT
• Contact Material: Silver Alloy
• Cover Material: Nylon
• Dome: Nylon
• Ground Clips: Brass
• Strap Material: Galvanized Steel
• Toggle: Polycarbonate

Product Features

• Color: White
• Brand: Lev-Lok
• Device Type: Toggle Switch
• Feature: Illuminated - Load OFF
• Function: 3 Way
• Grade: Extra Heavy-Duty Industrial Specification Grade

Mechanical Specifications

• Product ID: Markings are permanently marked on device
• Termination: Modular

Standards and Certifications

• ANSI: C-73
• NEMA: WD-1 & WD-6
• NOM: 057
• RoHS: Compliant
• Warranty: 10-Year Limited
• cULus: File # E7458
