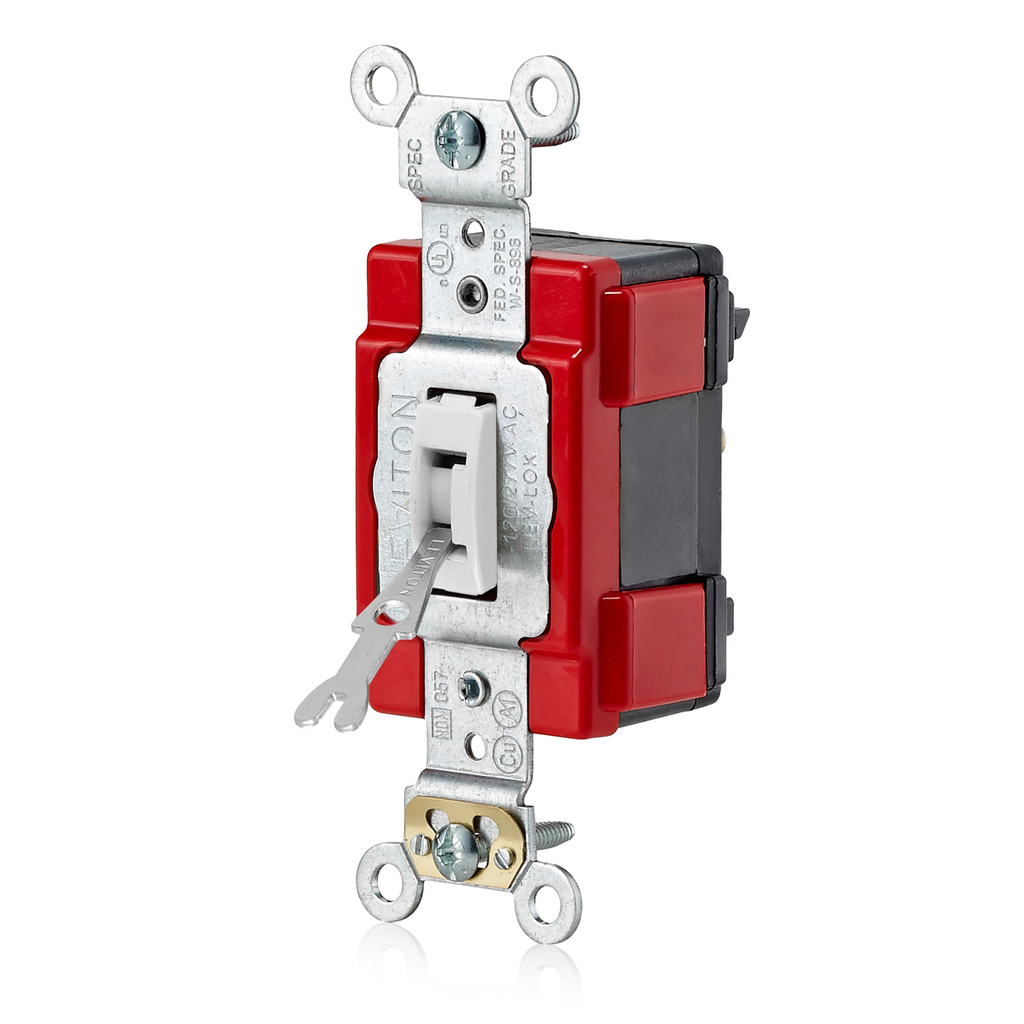

20 Amp, 120/277 Volt, 3 Way Tamper-Resistant Key Switch, Extra Heavy Duty Specification Grade, Self Grounding, Lev-Lok Modular WHITE

NEMA

• WD-1
• WD-6

Patents

• CA2655707
• CA2667092
• US7357652
• US7666010
• US7955096
• US8096818
• US8613624

• Country of Origin: Mexico

Electrical Specifications

• AC Horsepower Ratings: 1HP-120V 2HP-240V, 16A Max
• Amperage: 20 A
• Dielectric Voltage: Withstands 1500V for 1 minute
• Endurance: 50,000 cycles minimum
• Grounding: Self-Grounding
• Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
• Temperature Rise: Maximum 30 degrees C rise
• Voltage: 120/277 VAC

Environmental Specifications

• Flammability: Rated V-2 per UL 94
• Operating Temperature: -40°C to 65°C
• Storage Temperature: -40ºC to 65ºC

Material Specifications

• Base Material: PBT
• Contacts: Silver-Alloy
• Cover Material: Nylon
• Dome: Nylon
• Ground Clips: Brass
• Strap Material: Galvanized Steel
• Toggle: Polycarbonate

Mechanical Specifications

• Product ID: Markings are permanently marked on device
• Termination: Modular

Product Features

• Brand: Lev-Lok
• Color: White
• Device Type: Toggle Switch
• Function: 3-Way
• Grade: Extra Heavy-Duty Industrial Specification Grade

Standards and Certifications

• NEMA: WD-1 & WD-6
• NOM: 057
• UL Fed Spec: WS896
• UL Standard: UL 20
• cULus: File # E7458

Warranty

• Warranty: 10-Year Limited
