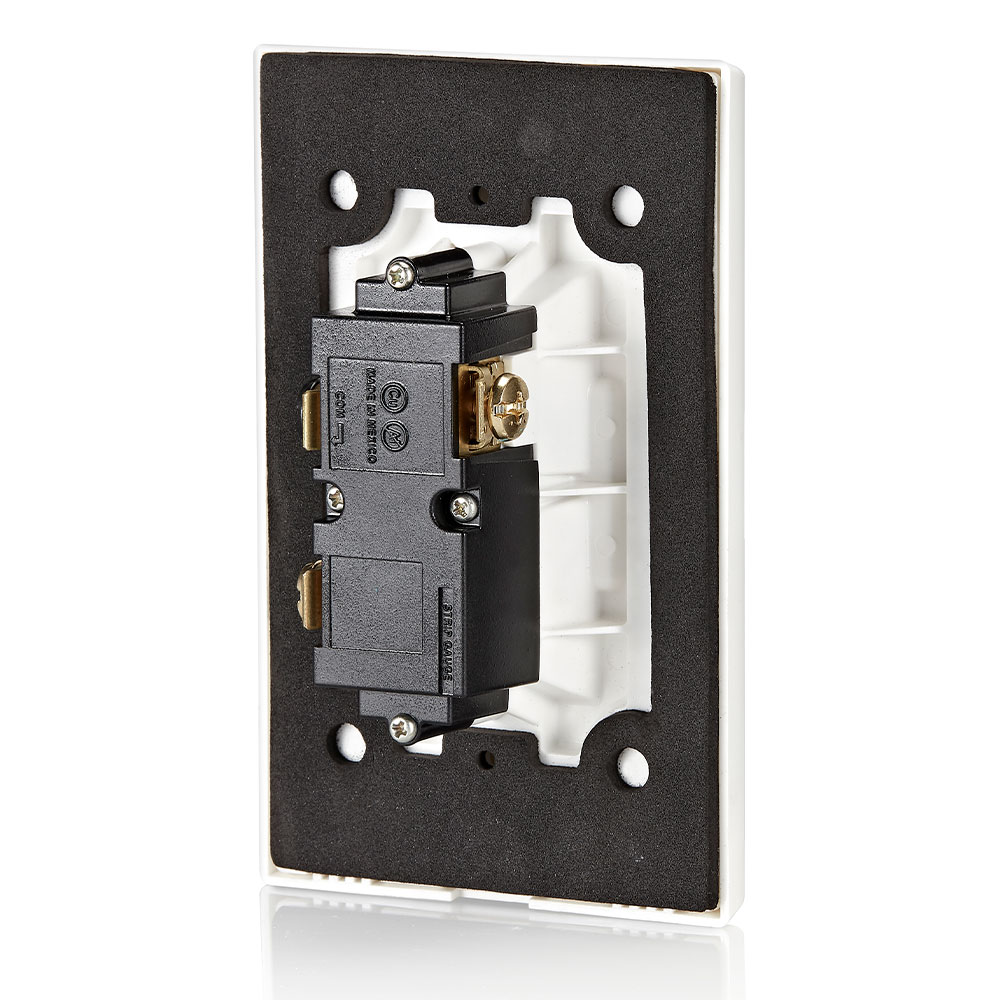

Decora Weather-Resistant 3-Way Switch White

• ATTRACTIVE – All-in-one weather-resistant switch solution, no outdoor cover required
• WEATHER-RESISTANT – Ideal for use for in wet and damp locations
• CONVENIENT – Controls light(s) from two locations
• EASY TO INSTALL – Side and back wire for easy installation
• CODE COMPLIANT – NEMA 3R Rated to meet exterior code
• ​All-in-one weather-resistant switch solution, no outdoor cover required
• Patent-pending actuation done with magnets, allowing the subplate/switch to be impervious to water intrusion
• Designed for wet and damp locations
• UV stabilized thermoplastic construction
• ​Rocker switch for smooth operation
• ​Side and back wire for easy installation
• ​NEMA 3R Rated to meet exterior Code
• Ideal for residential and commercial outdoor kitchens and bars, outdoor lighting, patio, pool and spa areas, sheds, gazebos, cabanas, outdoor ceiling fans, and fountains.
• 2-Year Limited Warranty

• Country of Origin: Mexico

Product Features

• Amperage: 15 A
• Color: White
• Device Type: Rocker Switch
• Feature: Weather-Resistant
• Grade: Residential
• Grounding: Grounding
• HP Rating: 1/2HP-120V 2HP-240V-277V
• Max. Amperage: 12 Amp
• Pole: 3
• Voltage: 120/277 VAC

Material Specifications

• Actuator Material: Thermoplastic
• Body Material: Thermoplastic
• Strap Material: Steel

Mechanical Specifications

• Terminal Accom.: Back Wire #10-#14 AWG; Side Wire #12-#14 AWG
• Termination: Side Wire, Back Wire
• Torque Range: 14 – 18 in.-lbs
• Type: Weather-Resistant Rocker Switch

Standards & Certifications

• NOM: NOM
• UL Standard: cULus

Warranty

• Warranty: 2-Year Limited
