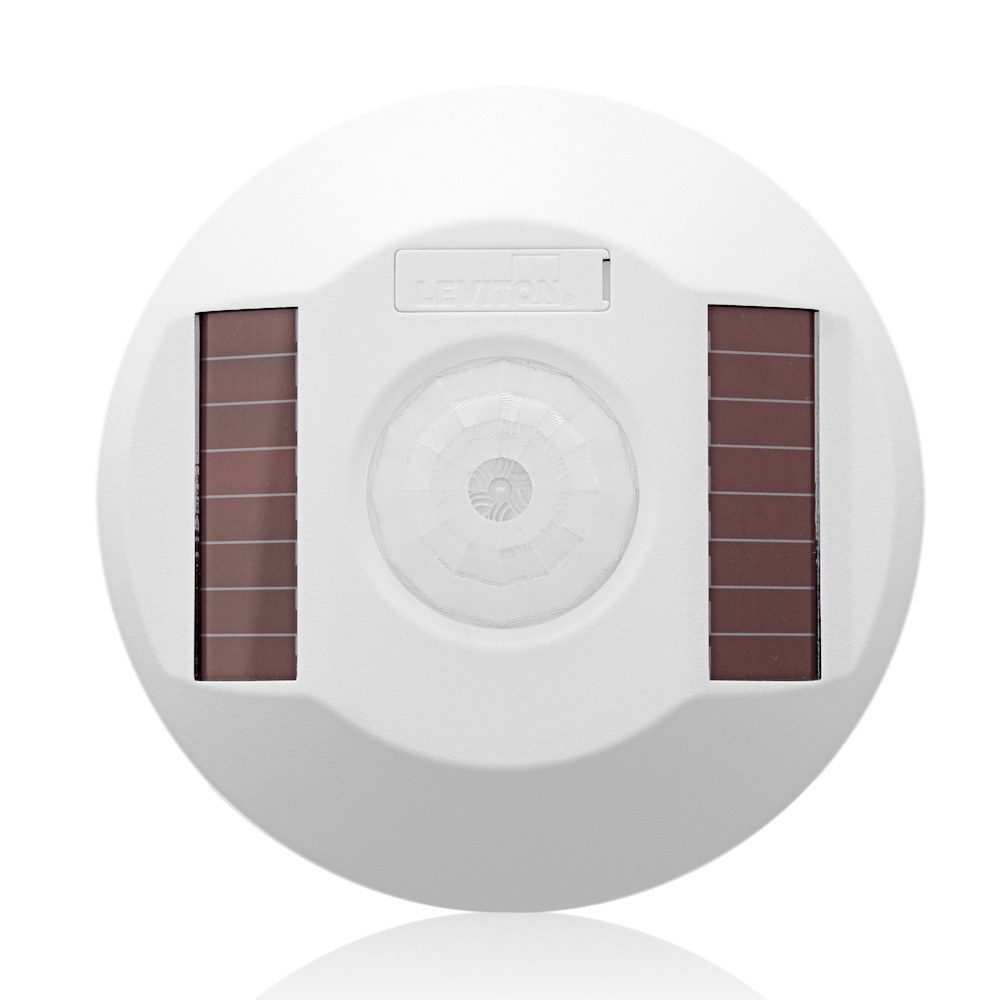

LevNet RF Self Powered PIR Occupancy Sensor, 1500SF

• The Wireless Occupancy Sensors (WSCxx-IRW) have built-in solar cells that draw on available ambient light to power themselves and can operate for up to 48 hours in total darkness. Batteries are not required for continuous operation, however batteries can be added as an option for applications without available ambient light. For improved detection, the sensors use an enhanced PIR element located directly behind a unique multi-zone optical lens. This exclusive Fresnel lens establishes twice as many zones of detection as traditional sensors. The zones can be configured (masked) to block out unwanted traffic zones (i.e. outside hallway traffic). The WSC15-IRW features superior detection for parallel and perpendicular motion. Innovative sensing technology detects motion moving directly towards the sensor. The self-powered wireless sensor design also overcomes the placement and coverage challenges of traditional sensors. Self-powered wireless sensors enable flexible placement allowing sensors to be mounted wherever needed without the complexity of moving or installing new wiring. Wireless receivers and transmitters sold separately. Do you have a question about an occupancy sensor or vacancy sensor? Contact us to learn more.
• Zero Power Consumption
• Zero External Power Required
• Self-Powered, Self-Charging
• Quick Charge Time to Operation
• True Wireless
• No Additional Wiring
• No Batteries or External Power Required
• Up to 48 Hours of Stored Power

Patents

• USD647413

Color Variations

• White

• Country of Origin: Mexico

Product Features

• Application: Retrofits, New construction, Restrooms, Conference rooms, Classrooms, Private offices, Executive offices, Daycare facilities
• Battery: 10 years
• Color: White
• Feature: Wireless
• Grade: Commercial
• Mounting: Ceiling Mount
• Mounting Height (Ft.): 8-12 FT
• Product Line: LevNet RF
• Sensor Technology: Passive Infrared (PIR)
• Sensor Type: Occupancy

Environmental Specifications

• Protocol: 315 MHz EnOcean
• Relative Humidity: 0% to 95% non-condensing
• Storage Temperature Range: -4° to 158°F (-20° to 70°C)

Performance Specifications

• Coverage (Sq.Ft.): 1500
• Frequency Range: Up to 100 FT
• Pattern: 360°

Electrical Specifications

• Frequency: 315 MHz

Standards and Certifications

• Listings: CEC Title 24 Compliant, FCC Certified for wireless communication

Mechanical Specifications

• Mounting Type: Ceiling Mount
• Size: Height 1.20" (30.5mm), Width 4.80" (121.9mm)

Type

• Product Type: Wireless Occupancy Sensor

Warranty

• Warranty: 5-Year Limited
