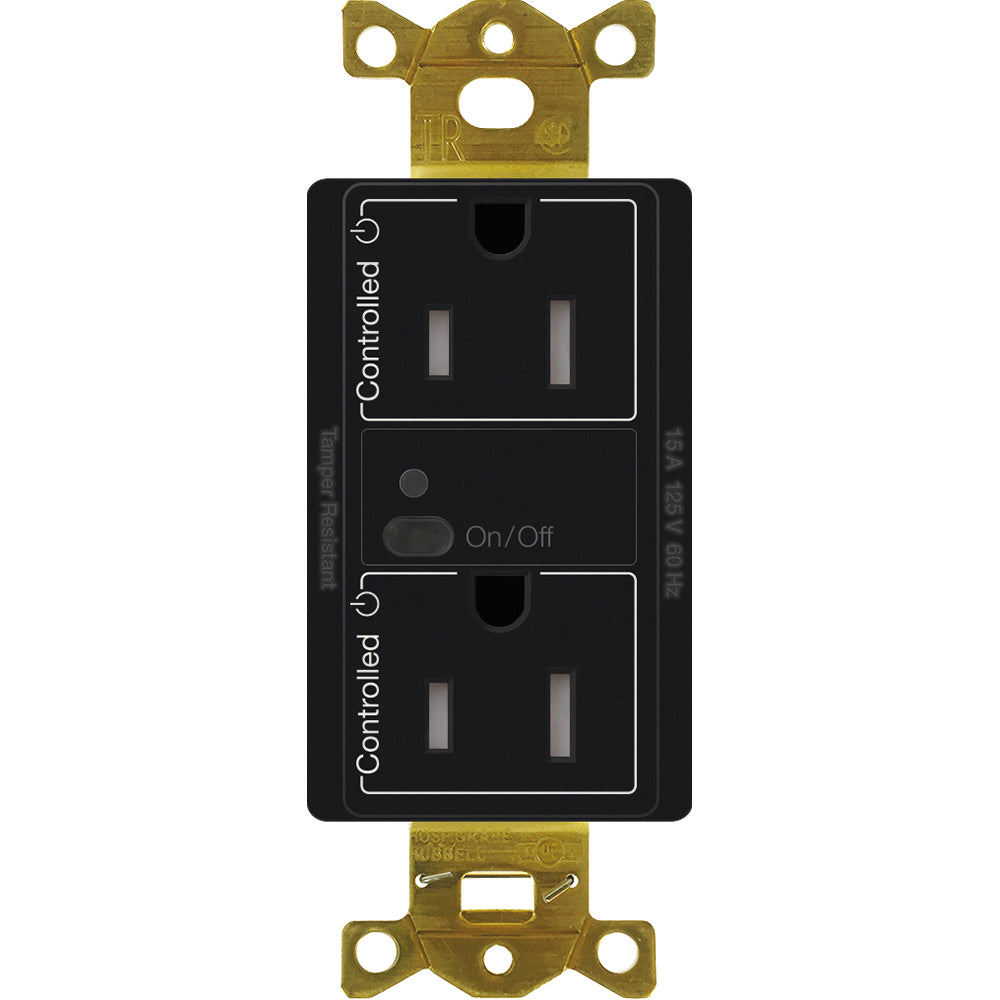

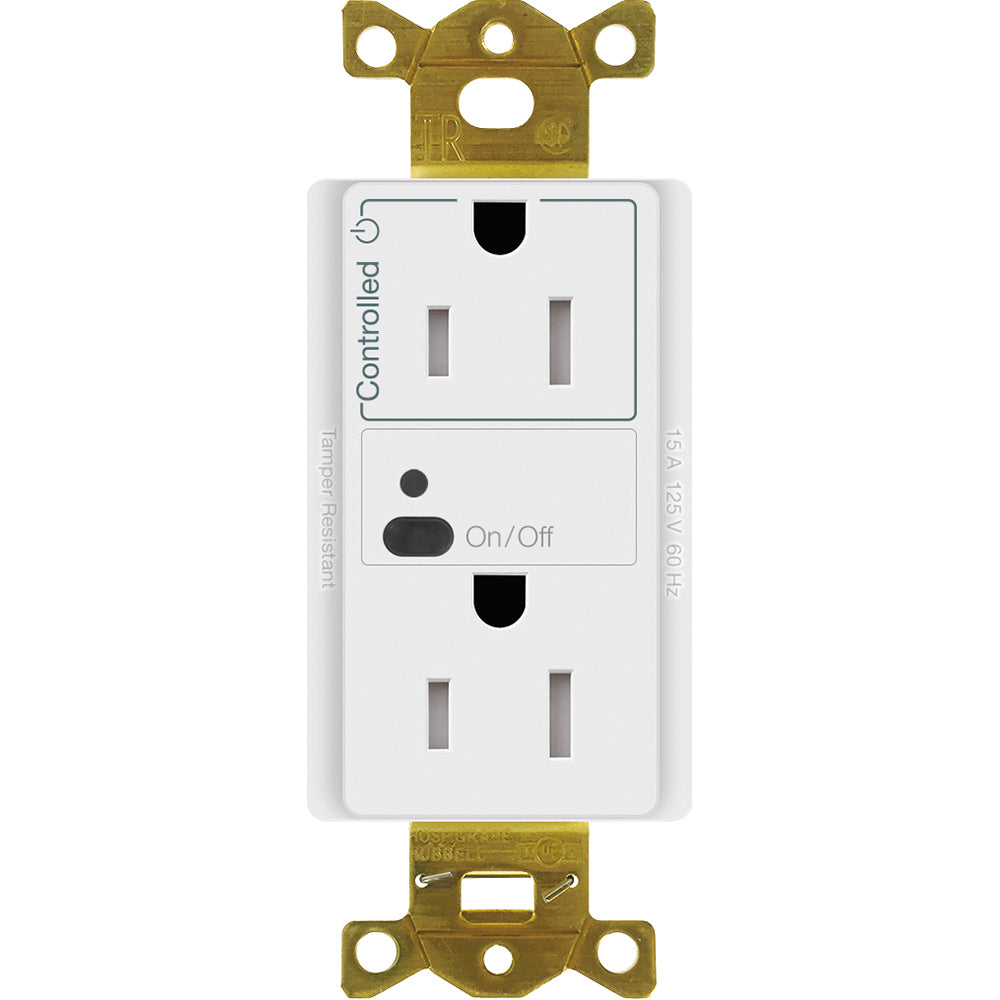

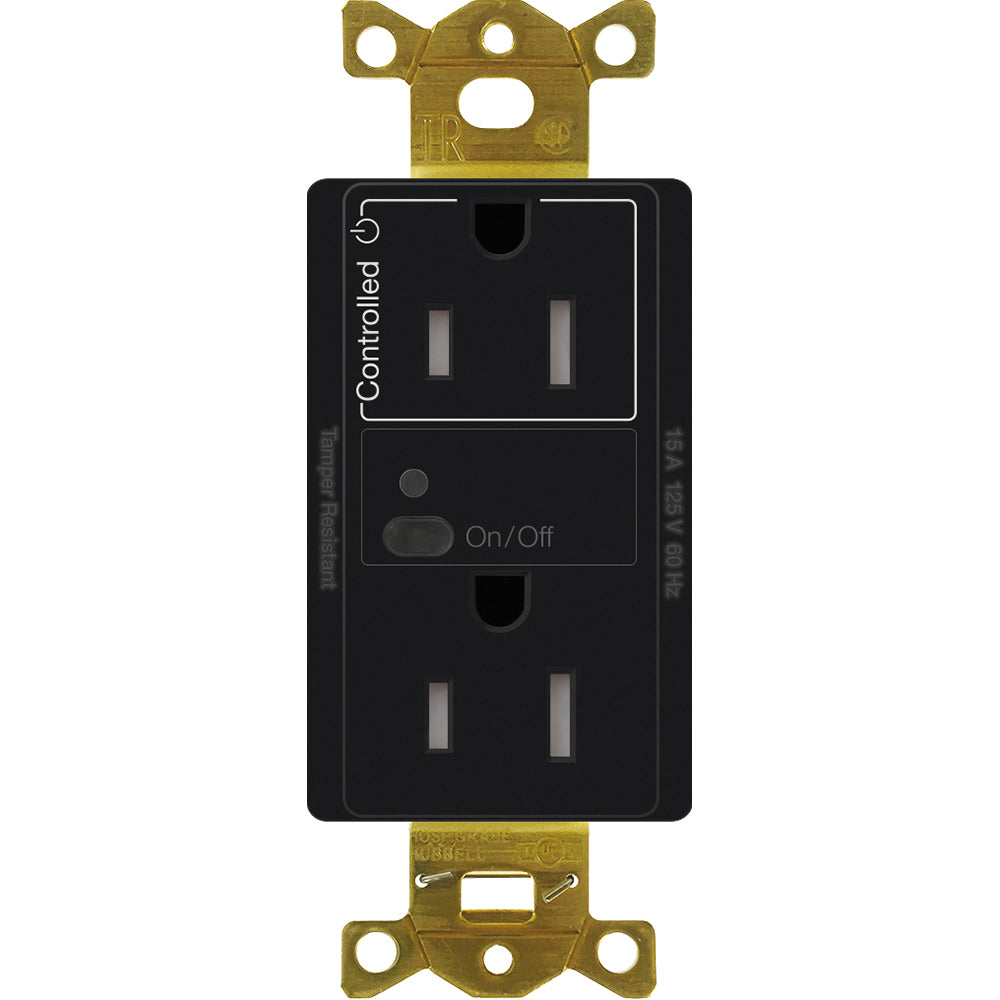

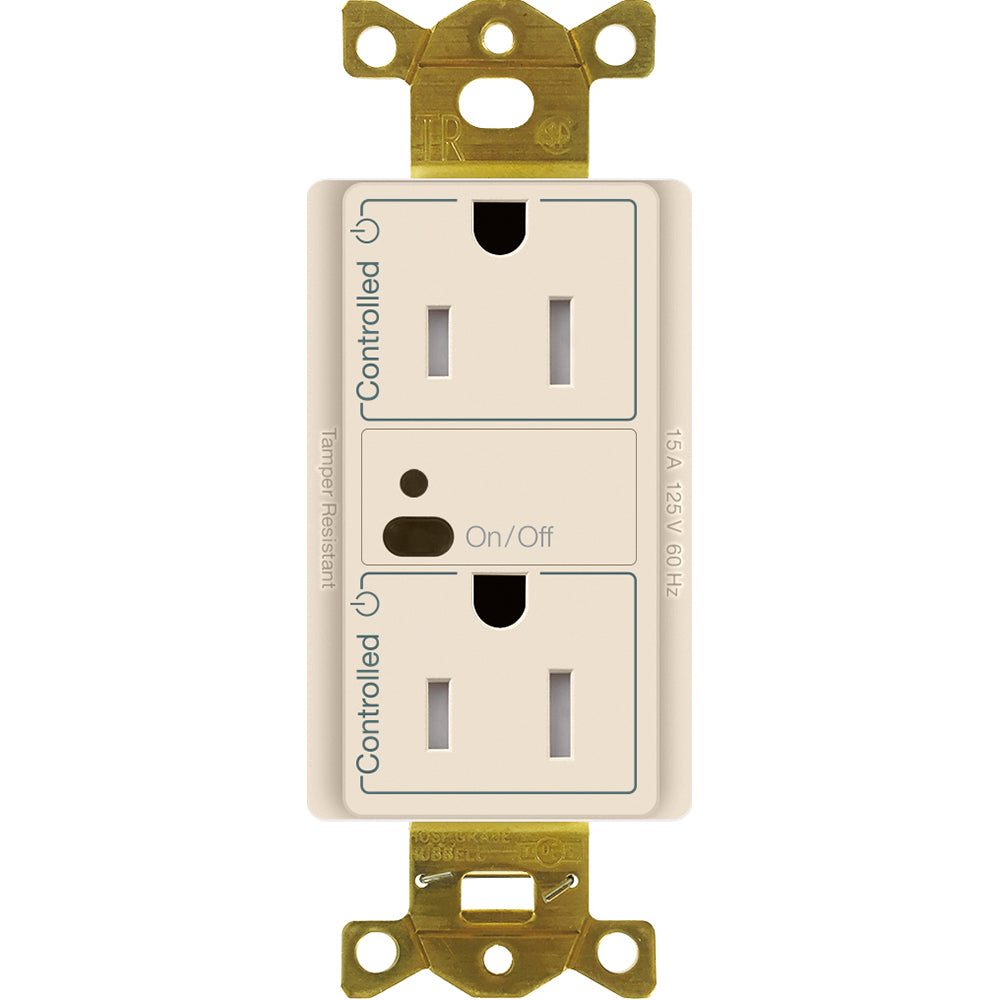

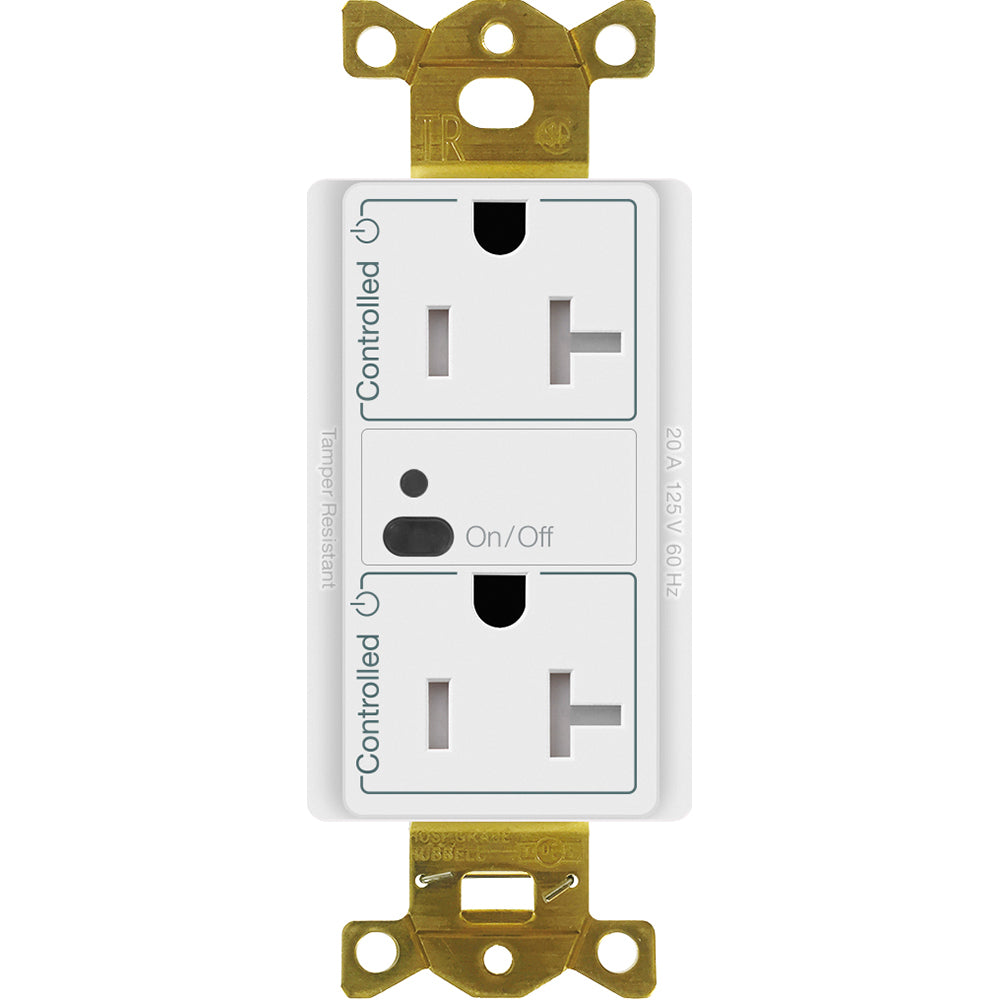

Vive wireless receptacle, 15 A duplex

The Wireless Receptacle is a radio-frequency (RF) receptacle switching solution that is capable of controlling 15 A or 20 A split or duplex style receptacles when paired with Pico wireless controls and Radio Powr Savr occupancy/vacancy sensors.

• Family/Collection: Vive
• Dual switching. Utilizes Clear connect RF technology to communicate wirelessly to Pico wireless controls and Radio powr Savr occupancy/vacancy sensors. Capable of switching general purpose loads and downstream receptacles. 434 MHz
• Compatible with the Vive wireless hub which enables a simple setup process using a standard web browser on any Wi-Fi enabled phone, tablet, or computer. The hub enables control and monitoring of all Vive devices and can be added any time.
• Utilizes Lutron Clear Connect RF Technology
• Receives wireless inputs from up to 10 Pico wireless controls and 10 Radio Powr Savr occupancy / vacancy sensors
• Capable Of Switching General-Purpose Loads
• Capable of switching downstream receptacles
• Adaptive Switching: maximizes relay life by switching at the point of minimum energy on the AC power curve
• Tamper resistant
• RoHS Compliant
• Includes required controlled outlet labels for code compliance
• Includes plastic screw terminal covers

• Amperage Rating: 15
• Brand Name: Lutron
• Color: Light Almond
• Connection: Screw terminal
• Insulation: Plastic
• Material: Plastic/Metal
• Mounting: Wallbox
• Number Of Poles: 2
• Number Of Wires: 3,4,5
• Size: 4.69 x 2.94
• Special Features: Dual switching. Utilizes Clear connect RF technology to communicate wirelessly to Pico wireless controls and Radio powr Savr occupancy/vacancy sensors. Capable of switching general purpose loads and downstream receptacles. 434 MHz
• Standard: cULus, FCC NOM, IFT
• Sub Brand: Vive
• Temperature Rating: 32 to 122
• Type: Wireless duplex receptacle
• Voltage Rating: 120
• Wattage: 1000
