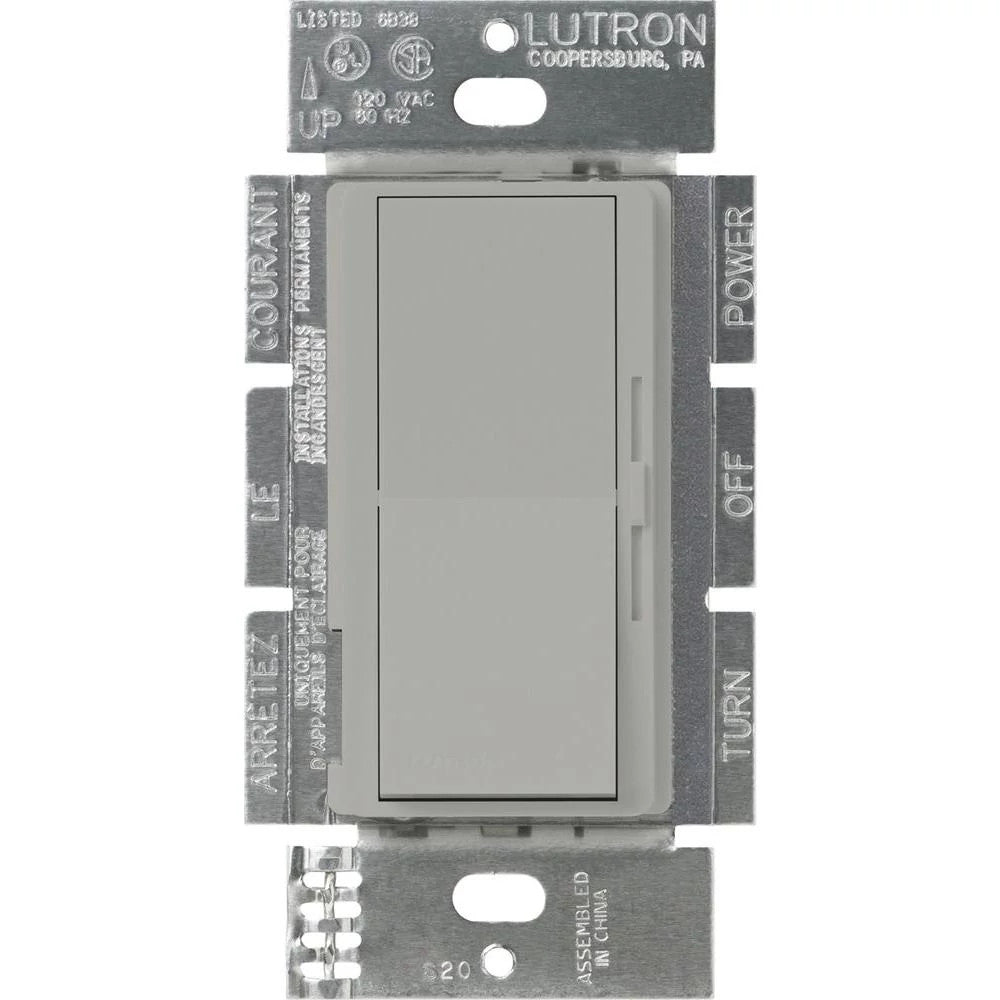

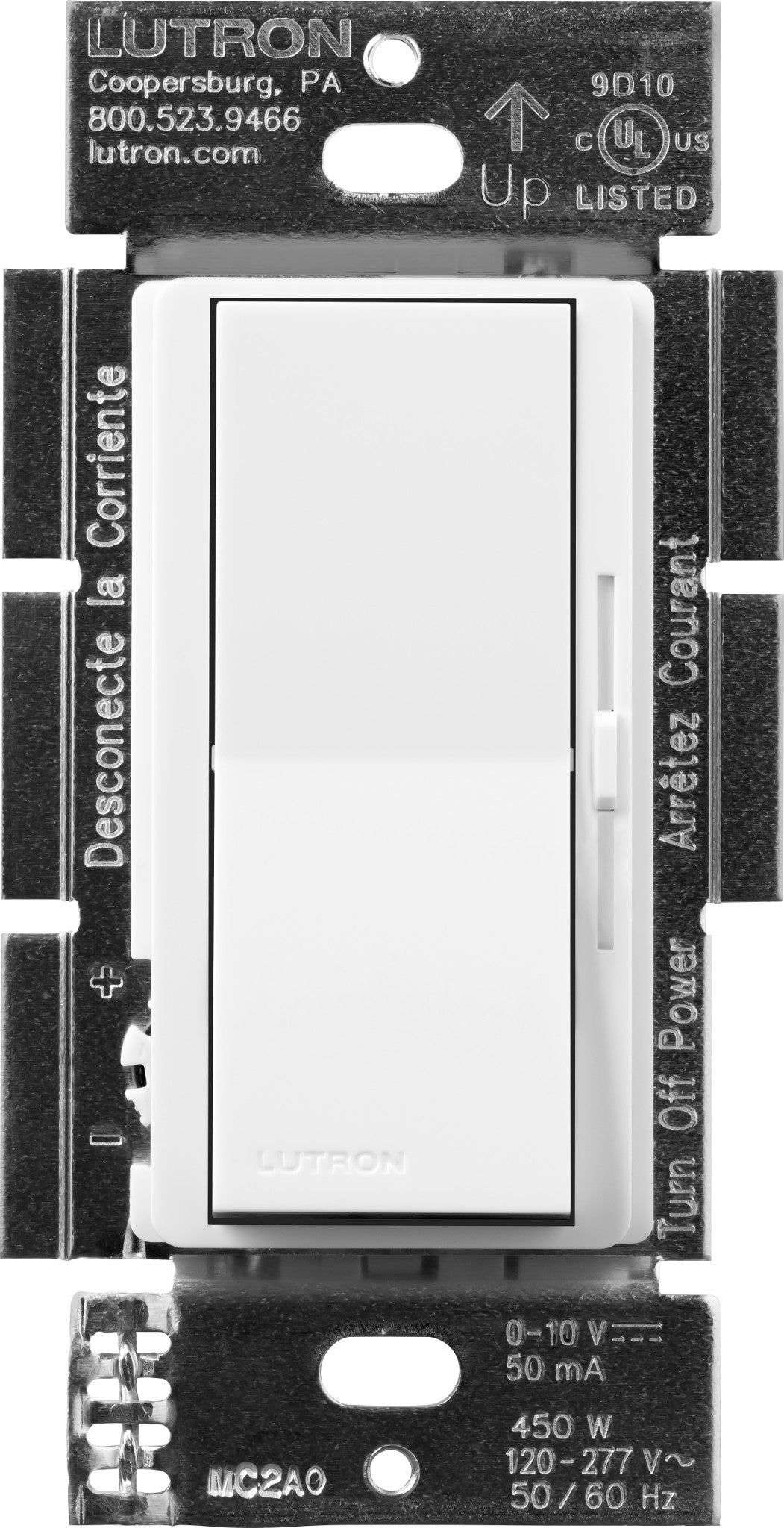

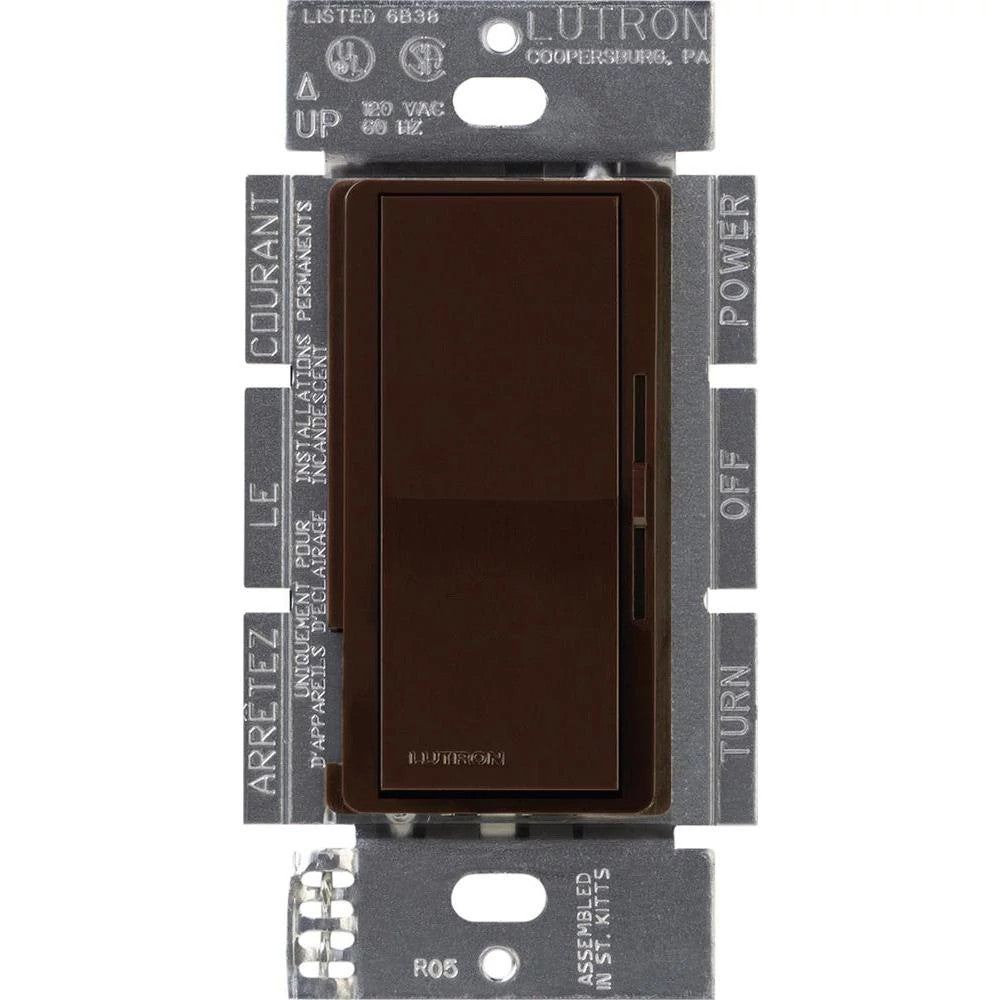

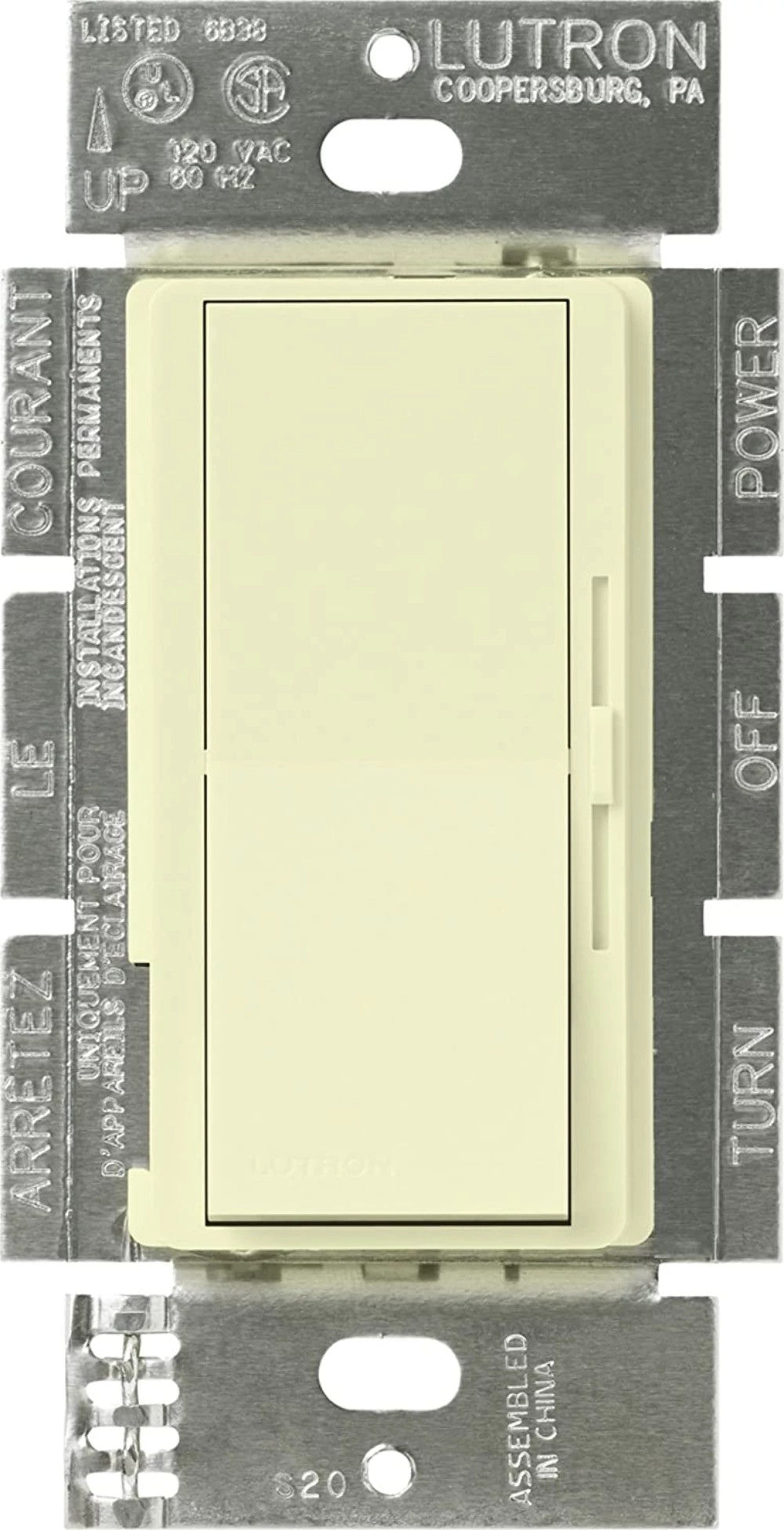

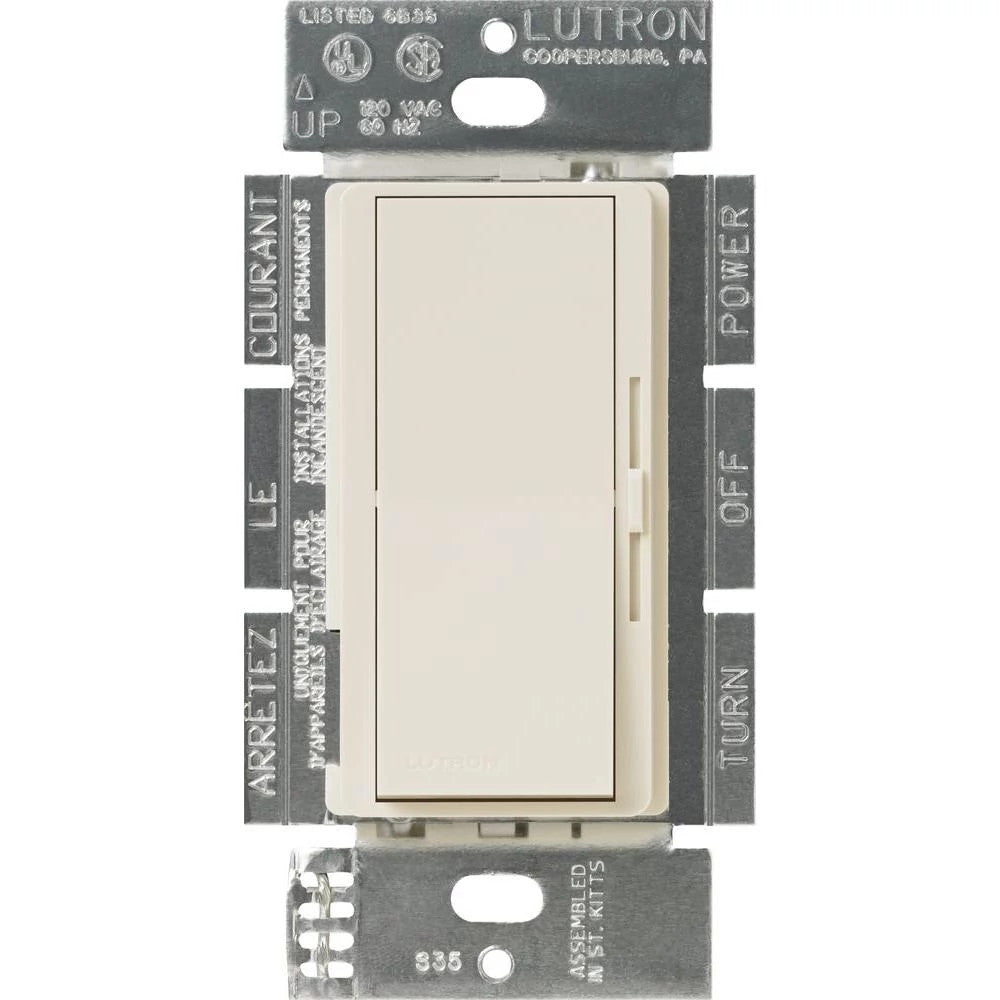

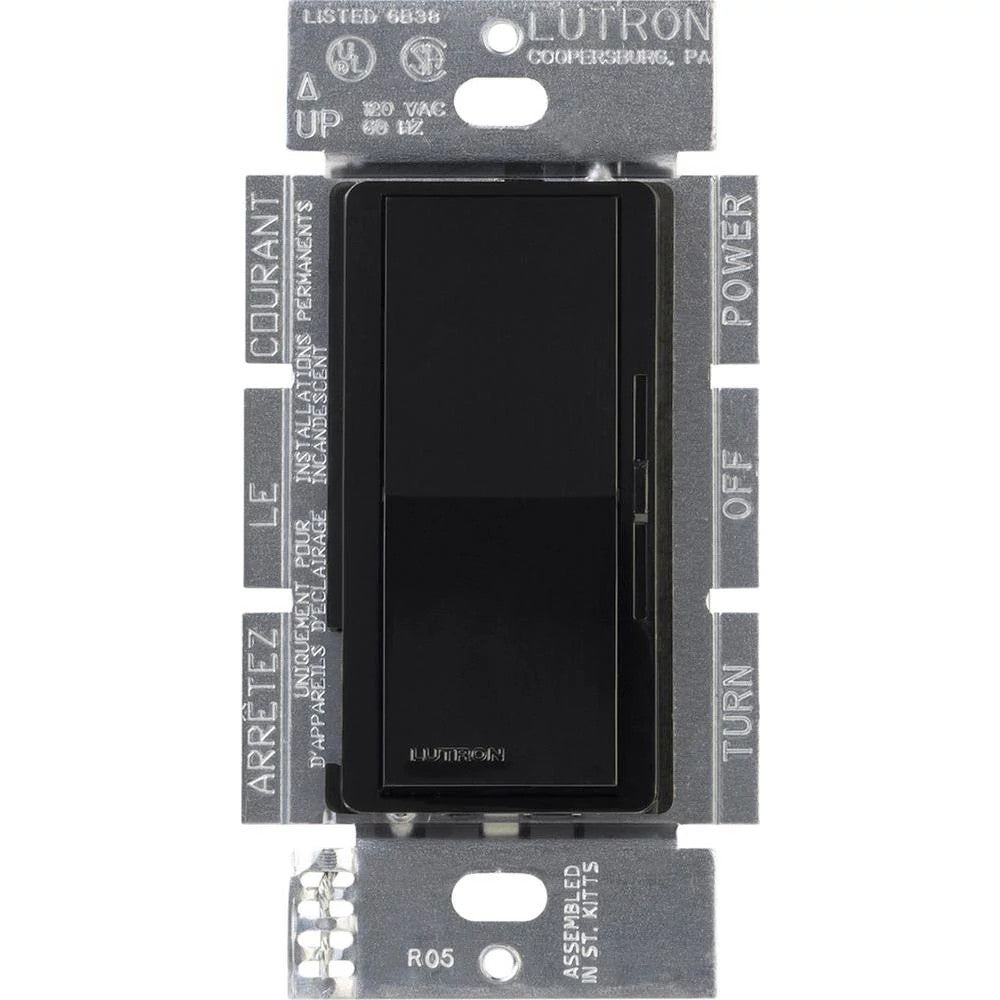

Diva Dimmer - Gloss Finish, Fluorescent or LED Dimming with 0-10V Ballasts and Drivers, Single-pole/3-way, 120-277V/50mA/8A

The Diva 0-10V dimmer switch is a simple solution is designed to match existing design style switches and accessories. Easily turn the lights on and off with a paddle switch, and use the slide control to adjust the lights to the perfect level. The new Diva 0 - 10-Volt dimmerswitch is a 0-10 VDC dimmer with 3-way functionality for 3rd party 0-10-Volt fixtures (LED and fluorescent), no separate power pack required. Coordinating wall plate sold separately.

• Family/Collection: Diva
• Controls 0-10 V LED or fluorescent fixture loads, 50 mA max control current. Paddle turns on/off. Slide up to brighten, down to dim.
• For use in controlling 0-10-Volt LED drivers and/or fluorescent ballasts
• No neutral wire or power pack required
• Large paddle switch with a captive linear-slide control for a standard designer-opening wall plate
• Can Be Used In Single Pole Or 3-Way Applications
• Easily replaces existing switch and installs in as little as 15 minutes (no neutral wire required)
• Includes (1) Diva 0-10V dimmer switch; coordinating wallplate sold separately

• Actuator: Paddle switch
• Amperage Rating: 8
• Application: Lighting Control
• Brand Name: Lutron
• Color: Light Almond
• Connection: Wire Leads
• Frequency Rating: 60
• Insulation: Plastic
• Material: Plastic/Metal
• Metric Size: 119 x 75
• Mounting: Wallbox
• Number Of Poles: 1
• Operating Temperature: 32 to 104
• Size: 4.69 x 2.94
• Special Features: Controls 0-10 V LED or fluorescent fixture loads, 50 mA max control current. Paddle turns on/off. Slide up to brighten, down to dim.
• Standard: UL, CSA
• Sub Brand: Diva
• Type: Dimmer, 3-way/single-pole
• Voltage Rating: 120 to 277
• Wattage: 2216
