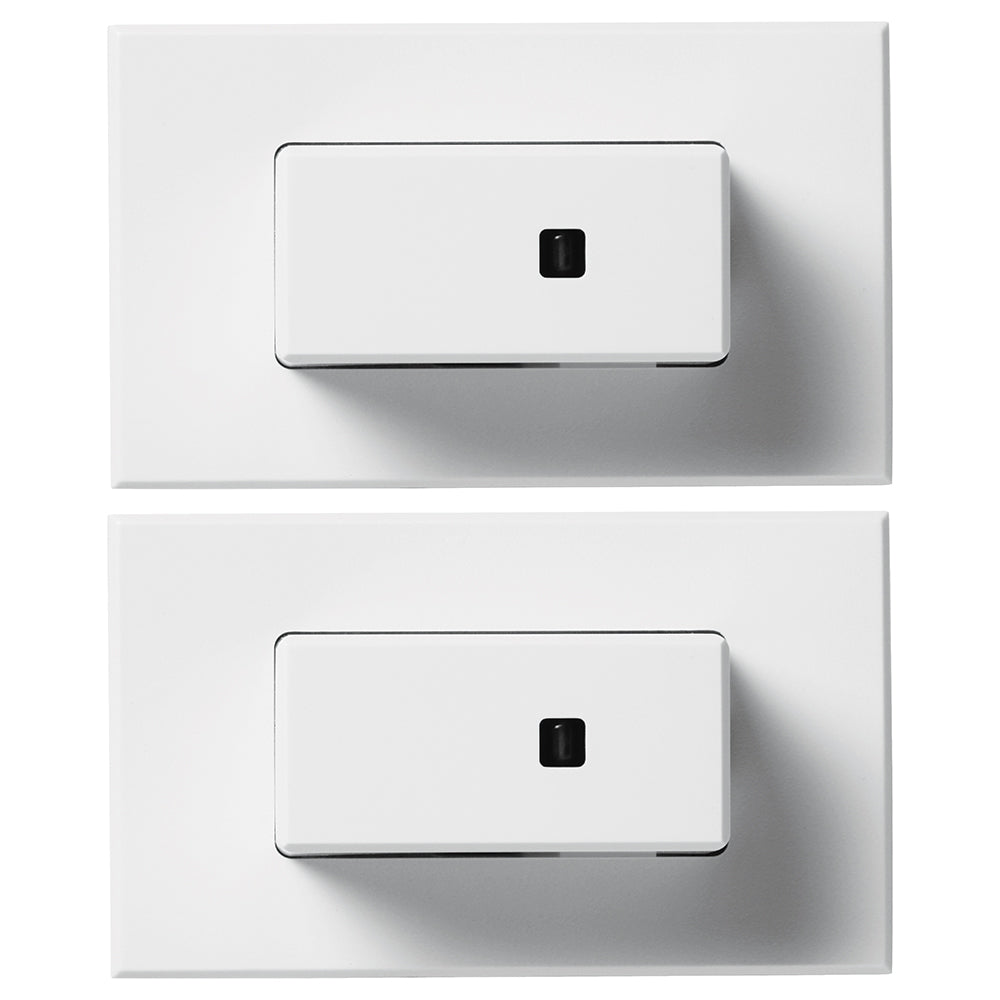

GRAFIK Eye QS Infrared Transmitter/Receiver (TX/RX) Pair

The GRX-IRPS Partition Sensor uses an infrared transmitter/receiver pair to detect partition movement and, in conjunction with other Lutron products, coordinates lighting preset functions in areas such as partitioned meeting rooms or ballrooms. The GRX-IRPS may be used with GRAFIK Eye 3000 or 4000 systems, GRAFIK Eye QS, Energi Savr Node, or Quantum systems.

• Family/Collection: GRAFIK Eye
• Automatically combines lighting preset functions when partition is open creating one large space
• Automatically combines lighting preset functions when partition is open creating one large space.
• Lighting preset functions become independent as partition is closed creating several smaller spaces.
• For operation with GRAFIK Eye 3000 / 4000 system, the GRX-IRPS requires an interface (GRX-IO) and a power supply (GRX-12VDC or PP-DV).
• For Operation With Grafik Eye Qs,Or Energi Savr Node Systems, The Grx-Irps Requires An Interface (Qse-Io) And A Power Supply (Grx-12Vdc Or Pp-Dv).
• For operation with Quantum, the GRX-IRPS requires either an interface (QSE-IO) or wallstation with contact closure input (QSWS2-, QSWA-, or similar) and a power supply (GRX-12VDC or PP-DV).

• Application: Coordinates lighting preset functions in areas such as partitioned meeting rooms or ballrooms
• Brand Name: Lutron
• Connection: Wire Leads
• Model: GRX-IRPS-WH
• Mounting: Surface
• Special Features: Automatically combines lighting preset functions when partition is open creating one large space
• Sub Brand: GRAFIK Eye
• Type: Partion Sensor
