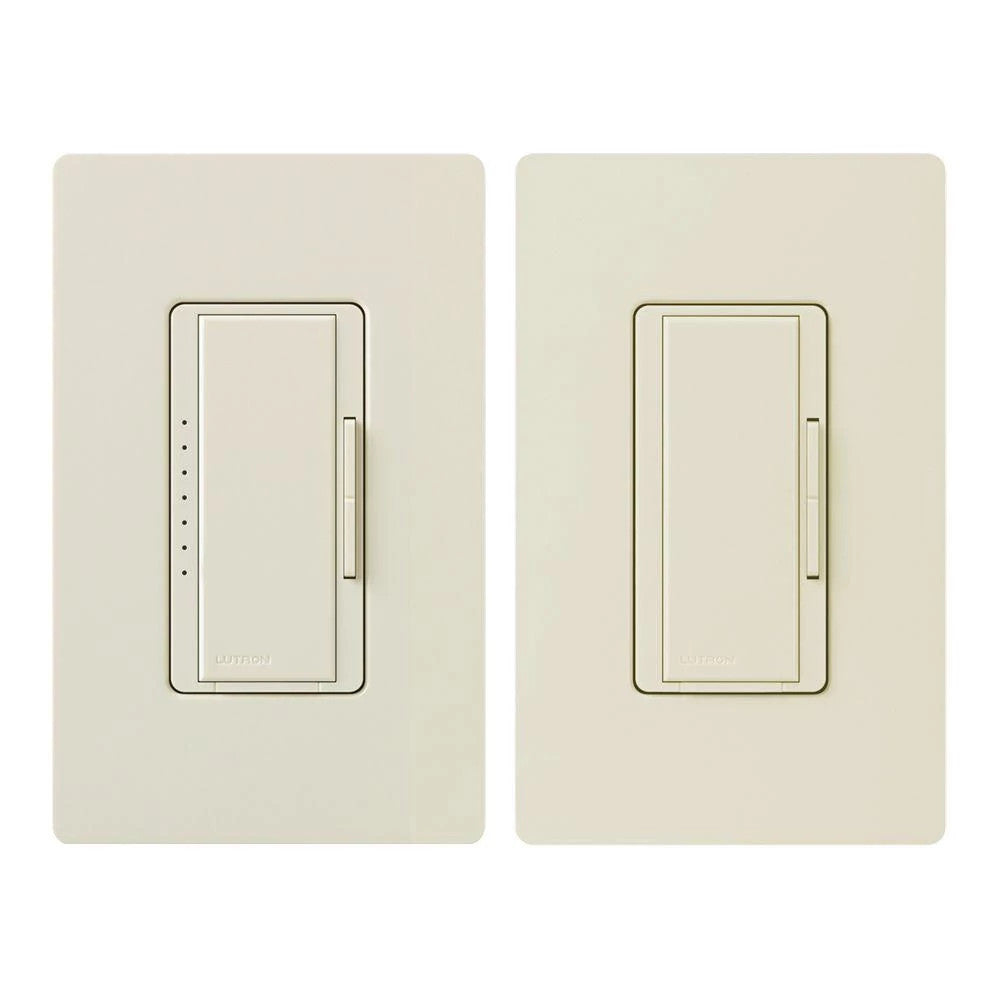

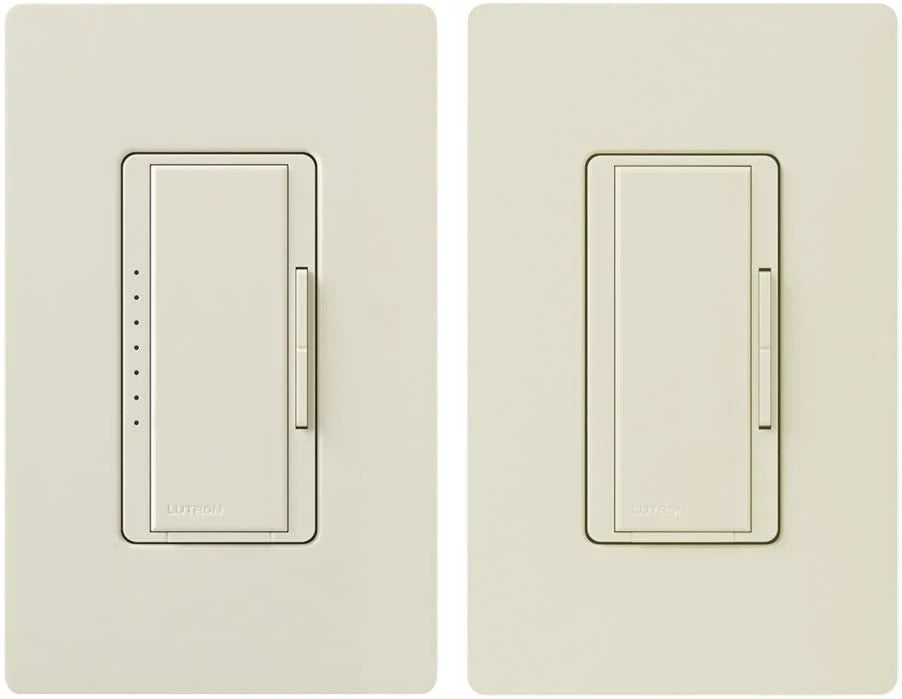

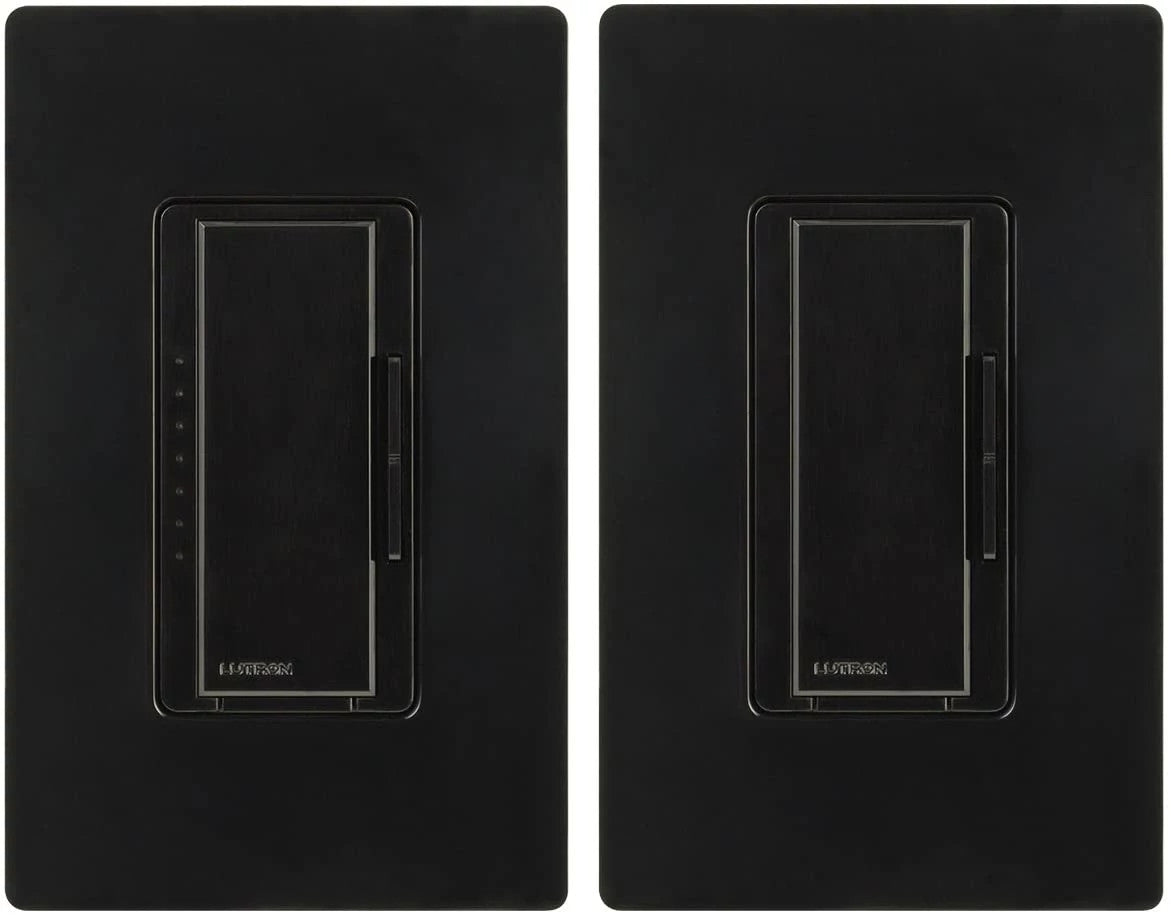

Maestro LED+ Remote Kit, With Wallplate

The Maestro LED+ dimmer provides optimal dimming performance of LED bulbs. This dimmer works with up to 150-Watt of dimmable LED/CFL or 600-Watt of incandescent/halogen, allowing you to control multiple bulb types on the same circuit. It is designed to control a broad range of dimmable LED and CFL bulbs from a variety of brands including Philips, Cree, GE, EcoSmart and Lighting Science. Use the rocker to adjust the light level for any activity or set the preset level to ensure lights always turn on to your desired light level. Advanced features include delayed fade to off, which allows time to exit a room or to get into bed before the lights turn off. Kit includes (1) Maestro LED+ dimmer, (1) Maestro Companion Dimmer, (1) 2 coordinating Claro wall plates.

• Family/Collection: Maestro
• Controls dimmable 150 W LED/CFL (screw-base) or 600 W incandescent/halogen loads. Provides true dimming from each location (with companion dimmers). Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.
• Provides the best dimming performance for LED bulbs
• For use with up to 150-Watt of dimmable LED and up to 600-Watt of incandescent and halogen bulbs
• Features a tap switch to turn lights on/off or to preset level and a rocker to brighten/dim lights to suit any activity
• Can Be Used In Single-Pole, 3-Way, Or Multi-Location Applications
• Programmable fade gradually turns lights on, allowing your eyes to adjust to the change in light, and gradually fade off, allowing time to exit a room before the lights turn off
• Installs in as little as 15 minutes
• Kit Includes (1) Maestro LED+ (formerly C.L) Dimmer, (1) Maestro Companion Dimmer, and (2) coordinating Claro wallplates
• Coordinating Claro and Stainless Steel wallplates available separately.
• Capable of controlling up to 150 W Dimmable CFL / LED or 600 W Incandescent / Halogen or Mixed bulb type per Multigang and Mixed Bulb Type Ratings table
• 100% factory tested

• Actuator: Tapswitch
• Application: Lighting Control
• Brand Name: Lutron
• Color: Light Almond
• Connection: Screw terminal
• Frequency Rating: 50 to 60
• Insulation: Plastic
• Material: Plastic/Metal
• Mounting: Wallbox
• Number Of Poles: 1
• Operating Temperature: 32 to 104
• Size: 4.69 x 2.94
• Special Features: Controls dimmable 150 W LED/CFL (screw-base) or 600 W incandescent/halogen loads. Provides true dimming from each location (with companion dimmers). Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.
• Standard: UL, CSA, NOM
• Sub Brand: Maestro
• Type: Digital fade dimmer, multi-location/3-way/single-pole, companion dimmer, wallplate, clamshell packaging
• Voltage Rating: 120
• Wattage: 600
