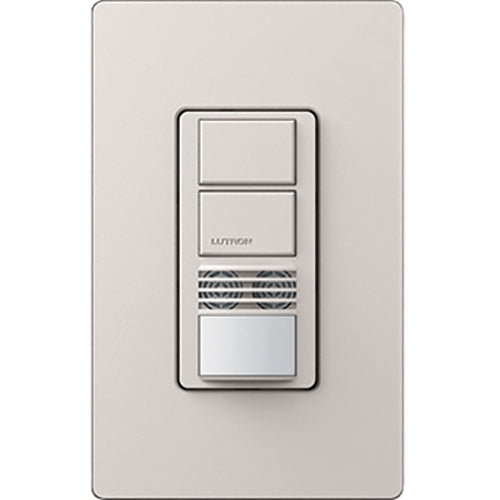

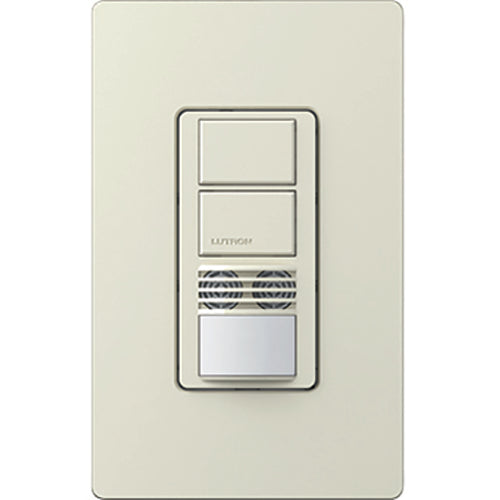

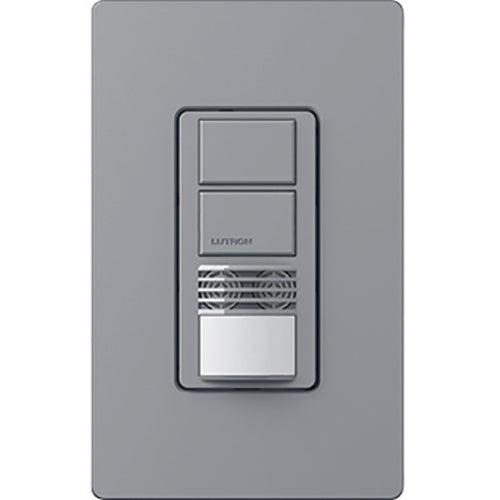

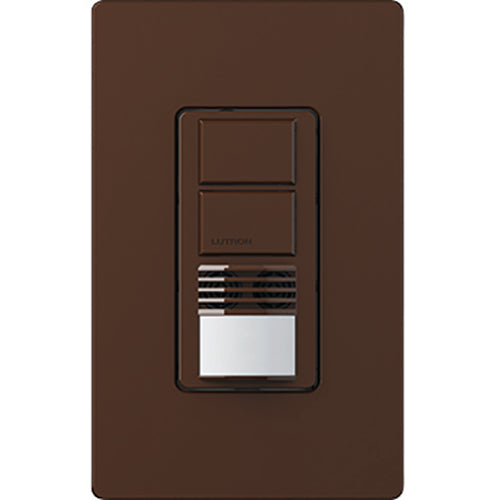

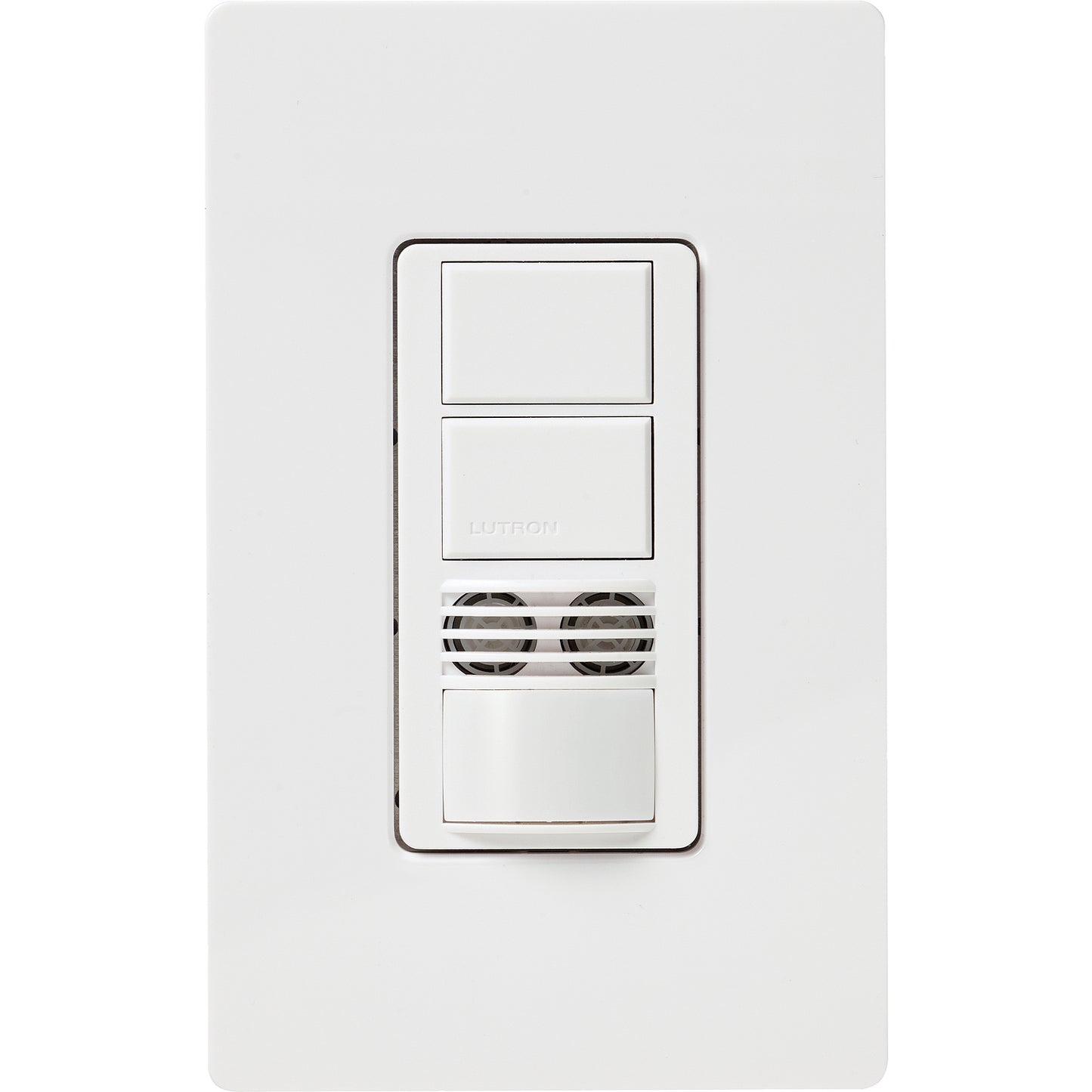

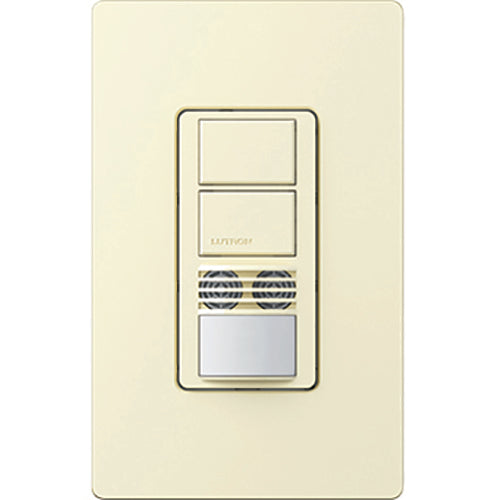

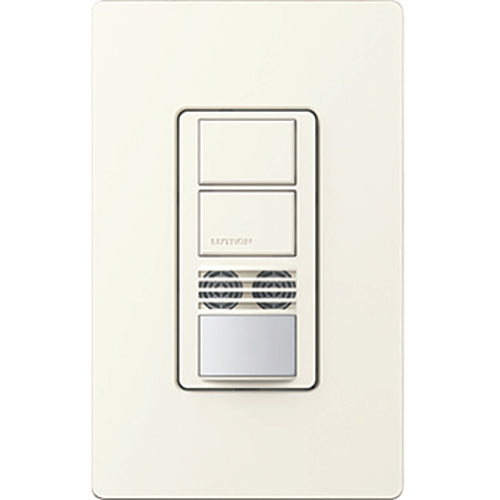

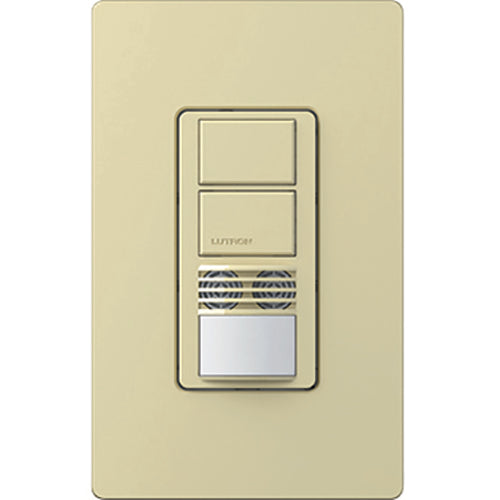

Lutron Maestro Dual-Circuit Dual-Tech Motion Sensor switch, 6A, Single-Pole or 3-Way, Almond
Lutron Maestro Dual-Circuit Dual-Tech Motion Sensor switch, 6A, Single-Pole or 3-Way, Almond
Available to Order
Couldn't load pickup availability
Product Description
The Lutron Maestro Dual Circuit Dual-Tech Motion Sensor Switch combines two switches with ultrasonic waves and passive infrared (PIR) technology to ensure reliable automatic sensing. This Dual Circuit Dual-Tech motion sensor controls 2 individual single pole circuits each rated up to 6A of lighting or 4.4A (1/6HP) fan motors. The sensor has a 180-degree field of view (900 sq ft major motion & 400 sq ft minor motion coverage) and is covered with a tamper resistant lens. It can be used to meet many of the Title 20/24, ASHRAE 90.1, and IECC code requirements such as “automatic shutoff” and “multi-level lighting control”. This Lutron Maestro Dual Circuit and Dual-Tech Motion Sensor features Dual Sensing Technology (PIR and ultrasonic) which detects very fine motion, such as typing at a desk or reading, ensuring lights do not turn off inadvertently. Lutron Maestro Sensors have an adjustable timeout (1, 5, 15 or 30 minutes), to control how long the lights stay on after leaving the room. Lutron’s, patent pending, adaptive zero-cross switching algorithm extends and maximizes the relay’s life by switching at the point of minimum energy on the AC power curve. It’s also equipped with smart ambient light detection (ALD), allowing you to customize your sensor to detect daylight, so lights don't turn on when there is enough natural light in the room. Easy to read programming buttons are directly on the sensor switch. Available in 10+ colors. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).
- Family/Collection: Maestro
- Applies Lutron's exclusive XCT Technology (Dual Tech) to the ultrasonic as well as the passive infrared technology in this sensor to create a product that can detect very fine motion, such as typing. Includes all of the great features found in the rest of the Maestro sensor family, including: adaptive relay switching, smart ambient light detection, and simple button presses for changing settings. XCT technology for major, minor, fine, and very fine motion detection. 180 degree field-of-view. Tamper-resistant PIR lens. Up to 900 ft2 (81 m2) major motion coverage and 400 ft2 (36 m2) minor motion coverage. Two ambient light detect (ALD) options: Learning ALD mode: uses adaptive algorithm. Sensor learns user's preferred light level over time. Fixed ALD mode: four selectable light level thresholds: Hi, Med, Low, Min. Can be set to auto-on/auto-off or manual-on/auto-off per circuit. Adjustable timeout for each circuit (1, 5, 15, or 30 minutes). Sensitivity adjustment: PIR (Hi, Med, Min), ultrasonic (Hi, Med, Low, Off). Switches all lighting loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent. Switches fan loads at 120 V. Does not require neutral wiring.
- Includes (1) Lutron Maestro Dual Circuit Dual-Tech Motion 6A Sensor Switch; Gloss Finish
- Controls (2) individual circuits, each rated up to 6A lighting, 4.4A (1/6HP) fans motors, or 4.4A combined fan/light
- Ground or Neutral required; 120-277V
- Single Pole Only
- Lutron Dual Sensing Technology: Ultrasonic and PIR (Passive-Infrared) for major, minor, fine, and very fine motion detection
- 180-degree sensor field of view (900 sq ft major motion & 400 sq ft minor motion coverage); tamper resistant lens
- Smart Ambient Light Detection (ALD) can be programmed so lights stay off if enough light is present in the room
- Complies with Title 20/24, ASHREA 90.1 and IECC requirements for “automatic shutoff” and “multi-level lighting control
- Easy to read programming buttons directly on sensor
- Available in 10+ colors; Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)
- Application: Lighting Control
- Body: Plastic
- Brand Name: Lutron
- Color: Almond
- Indicator: Smart ambient light detection (ALD)/Fixed ambient light detection
- Load: 6 A@10-277 VAC lights/4.4 A (0.167 HP)@120 VAC fan
- Mounting: Wallbox
- Operating Temperature: 32 to 104
- Sensing Range: 900 ft2 (82 m2) major motion coverage/400 ft2 (36 m2) minor motion coverage
- Special Features: Applies Lutron's exclusive XCT Technology (Dual Tech) to the ultrasonic as well as the passive infrared technology in this sensor to create a product that can detect very fine motion, such as typing. Includes all of the great features found in the rest of the Maestro sensor family, including: adaptive relay switching, smart ambient light detection, and simple button presses for changing settings. XCT technology for major, minor, fine, and very fine motion detection. 180 degree field-of-view. Tamper-resistant PIR lens. Up to 900 ft2 (81 m2) major motion coverage and 400 ft2 (36 m2) minor motion coverage. Two ambient light detect (ALD) options: Learning ALD mode: uses adaptive algorithm. Sensor learns user's preferred light level over time. Fixed ALD mode: four selectable light level thresholds: Hi, Med, Low, Min. Can be set to auto-on/auto-off or manual-on/auto-off per circuit. Adjustable timeout for each circuit (1, 5, 15, or 30 minutes). Sensitivity adjustment: PIR (Hi, Med, Min), ultrasonic (Hi, Med, Low, Off). Switches all lighting loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent. Switches fan loads at 120 V. Does not require neutral wiring.
- Standard: NOM, Title 20/24 certified
- Sub Brand: Maestro
- Supply Voltage: 120 to 277
- Type: Occupancy sensor switch, dual-circuit, single-pole
