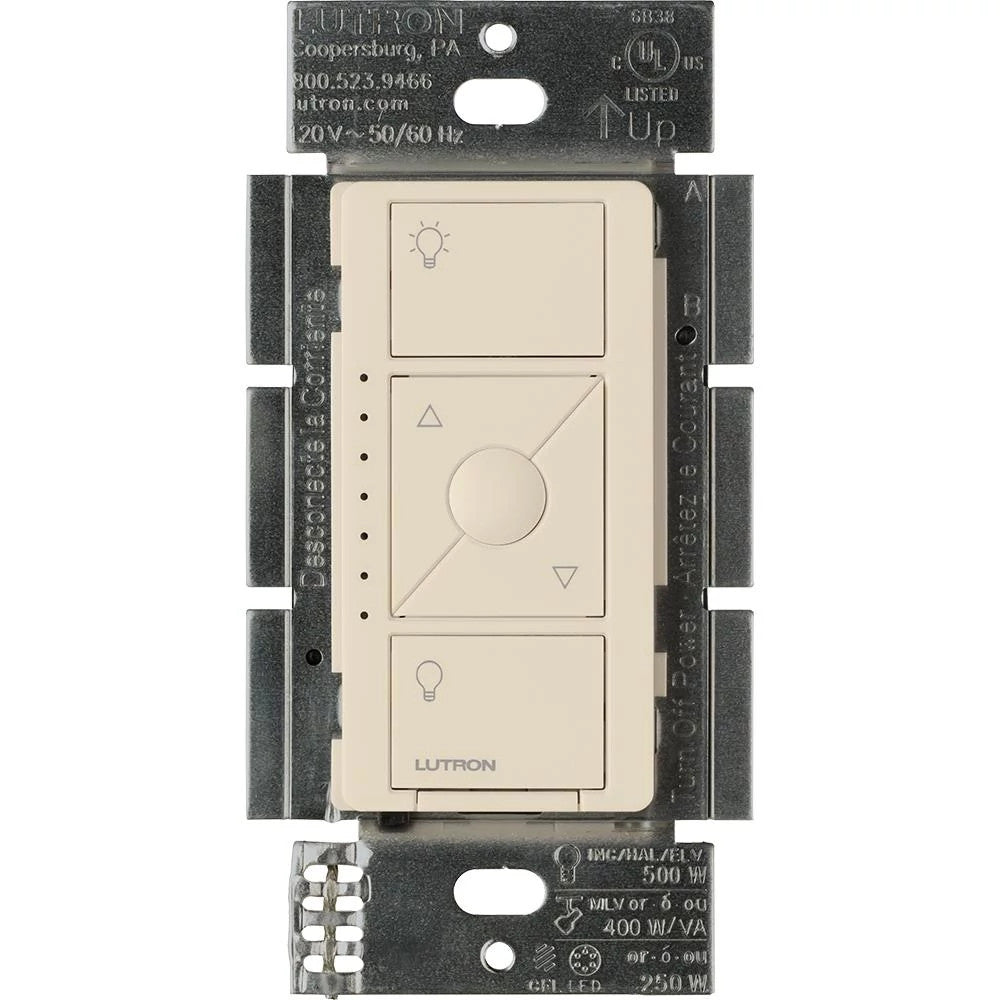

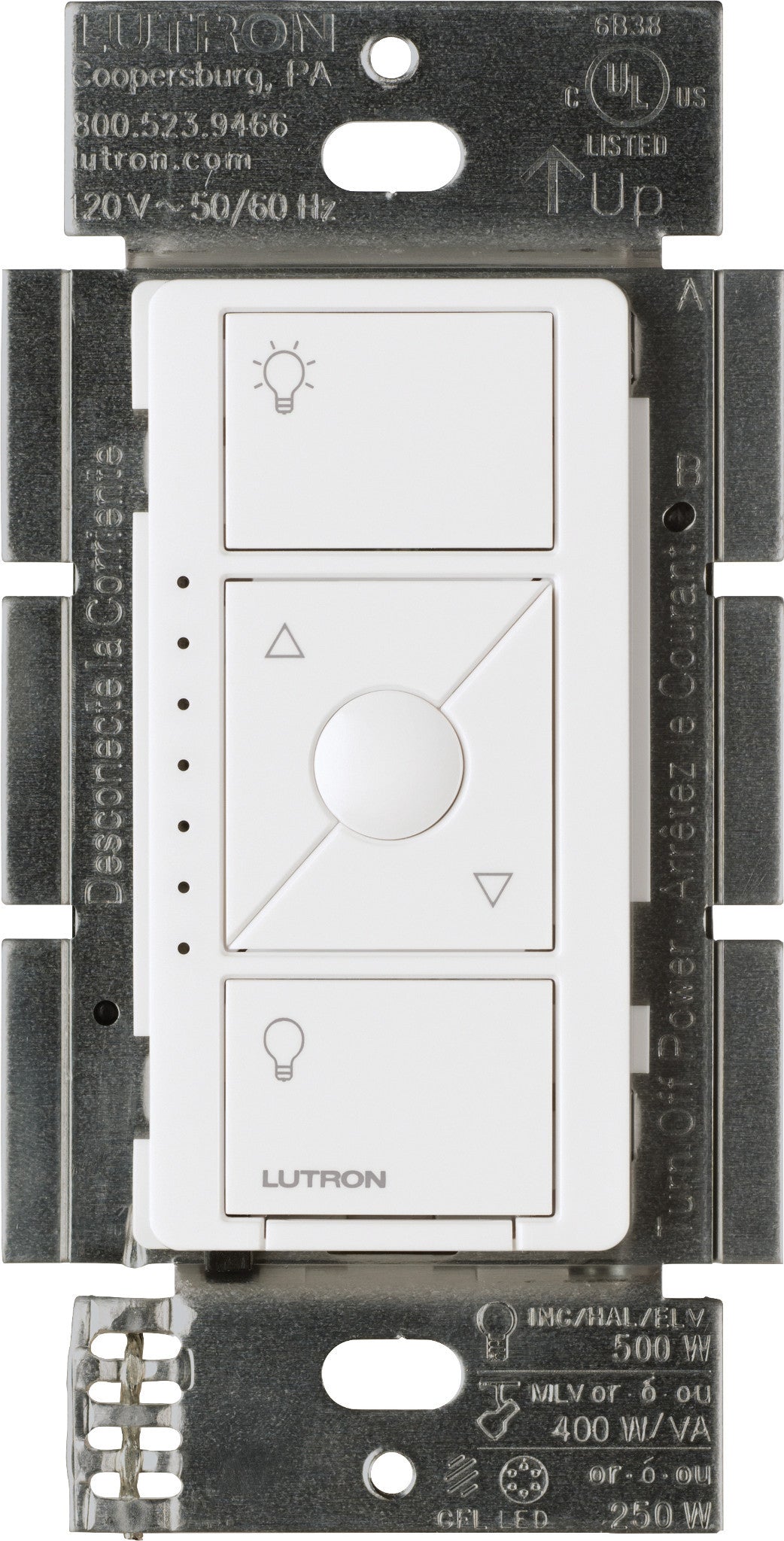

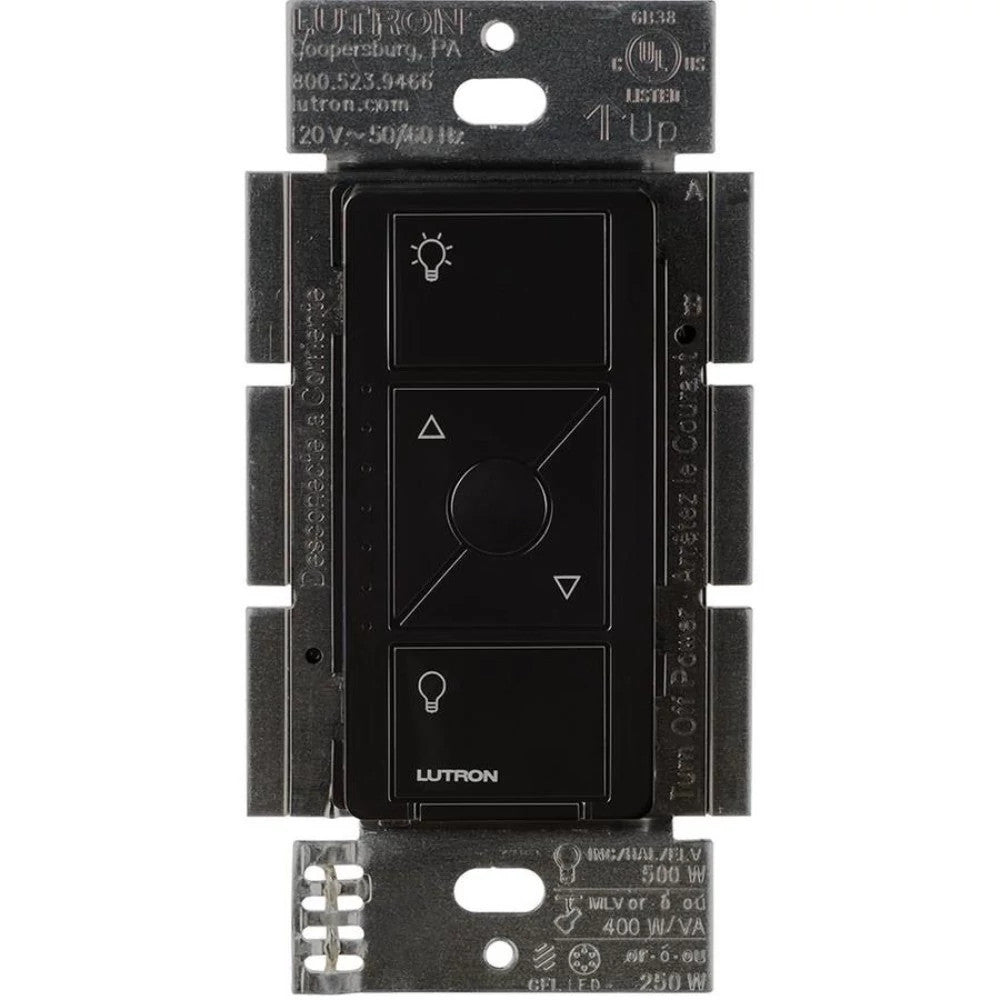

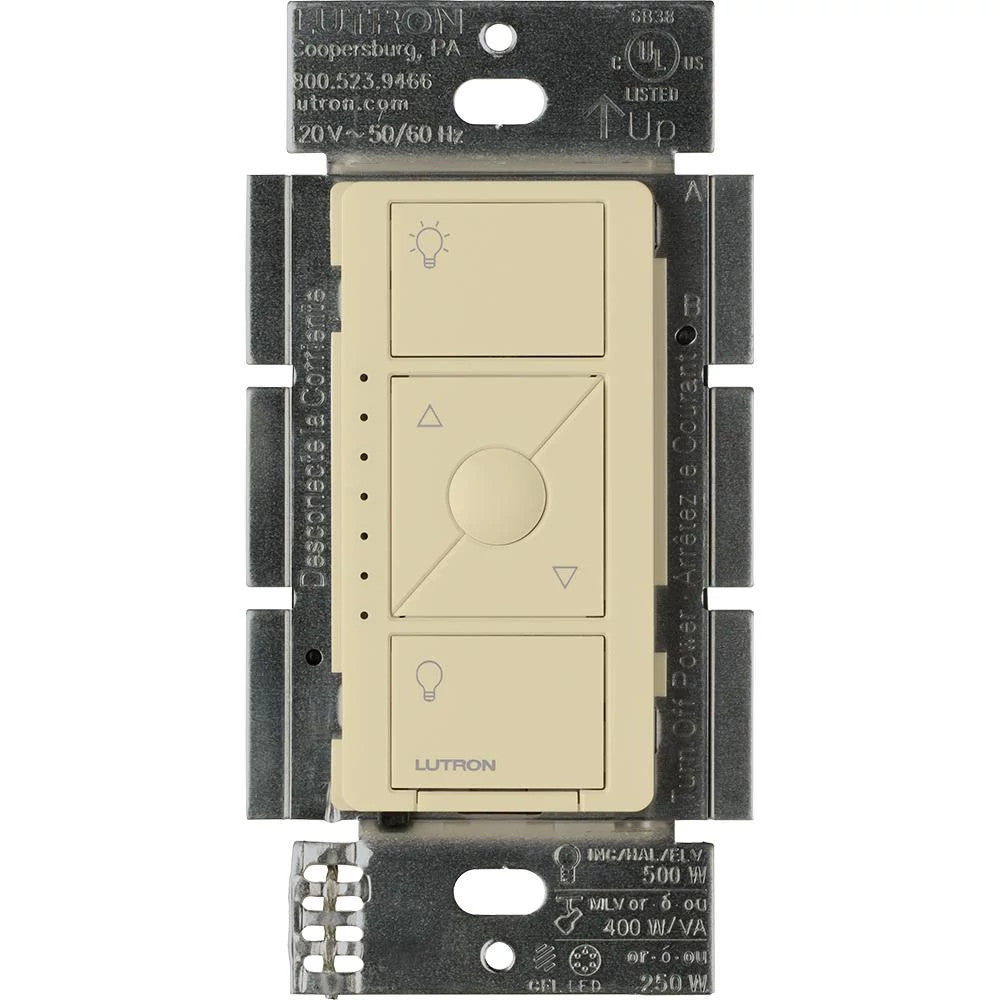

Lutron Caseta Wireless ELV+ Smart Dimmer Switch, with Phase Selectable Dimming for LED (250W), MLV (400W), ELV (500W), and Incandescent/Halogen (500W) lighting, 120V

The Caseta ELV+ Smart Dimmer Switch with phase selectable dimming works with up to 250W of dimmable LED, 500W of incandescent/halogen/electronic low-voltage (ELV), or 400-Watt of magnetic low-voltage (MLV); Neutral wire connection and 10-Watt minimum load required for all load types. Out of the box, the dimmer is set to reverse phase for ELV/incandescent/halogen light loads. However, since it is phase selective, the dimmer output can be changed to forward phase for MLV lighting loads and other certain LED bulbs with simple button press programming. The Caseta ELV + dimmer features a preset button in the center to save and recall your favorite light level. Existing hardwired 3-way switches will not work with this dimmer, for 3-way and multi-location applications Pico remotes must be used with this dimmer. Replace an existing switch with a Pico remote control and wall plate adapter to dim from every location (PICO-WBX-ADAPT sold separately). Use the Lutron Smart Hub to connect the Caseta ELV+ Dimmer Smart switch to leading smart home devices - including Alexa, Apple Home, Google Home, Ring, Sonos, and more. Not only does the smart hub unlock smart control and device integration - but it also doesn't use Wi-Fi to control your lights. With the Lutron Smart Hub you stay connected even when your Wi-Fi goes down and you avoid slowing your internet speed down with more devices. Enable the Smart Away feature to randomly turn lights on and off, to make it look like you're home, even if you're away (Lutron Smart Hub, L-BDG2-WH required). Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).

• Family/Collection: Caséta
• Controls 250 W LED (screw-base), 500 W incandescent/halogen, 400 VA (300 W) magnetic low-voltage, 500 W electronic low-voltage, 400 W Hi-lume 1 percent 2-wire LED driver, or 3.3 A Tu-Wire fluorescent ballast loads. Simple, intuitive design with on, off and raise/lower buttons. Provides true dimming from each location with Pico wireless remotes.
• Includes: One (1) Caseta Wireless ELV+ dimmer switch; Gloss finish
• Works with up to 250W of dimmable LED, 500W of incandescent/halogen or ELV, or 400W MLV; Phase-Select available
• Neutral Required; 120V
• Create A 3-Way And Add A 2Nd Switch Anywhere By Pairing With A Mountable Pico Remote (Pj2-Wall-Wh-L01 Sold Separately); Cannot Be Wired To Existing 3-Way Switches
• Add a Lutron Smart Hub to connect with Alexa, Apple Home, the Google Assistant, Ring, Serena Shades, SONOS, and more
• Lutron Clear Connect does not rely on wi-fi and is ultra-fast and ultra-reliable (avoid repeat service calls)
• Preset button allows you to turn your lights on to your preferred predetermined level
• Pair up to ten (10) Pico Remotes or Caseta motion sensors to one (1) Lutron Caseta dimmer switch (limitations reflect when no Lutron Smart Hub installed)
• Control at the wall, with a Pico smart remote, with a phone, or voice assistant (Lutron Smart Hub, L-BDG2-WH, required for phone and voice assistant control)
• Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)

• Actuator: Push-button
• Application: Lighting Control
• Brand Name: Lutron
• Color: Light Almond
• Connection: Wire Leads
• Frequency Rating: 50 to 60
• Insulation: Plastic
• Material: Plastic/Metal
• Mounting: Wallbox
• Number Of Poles: 1
• Operating Temperature: 32 to 104
• Size: 4.69 x 2.94
• Special Features: Controls 250 W LED (screw-base), 500 W incandescent/halogen, 400 VA (300 W) magnetic low-voltage, 500 W electronic low-voltage, 400 W Hi-lume 1 percent 2-wire LED driver, or 3.3 A Tu-Wire fluorescent ballast loads. Simple, intuitive design with on, off and raise/lower buttons. Provides true dimming from each location with Pico wireless remotes.
• Standard: UL, cUL, FCC, NOM, ICC, IFTEL
• Sub Brand: Caséta
• Type: Wireless in-wall dimmer, multi-location/single-pole
• Voltage Rating: 120
• Wattage: 500
