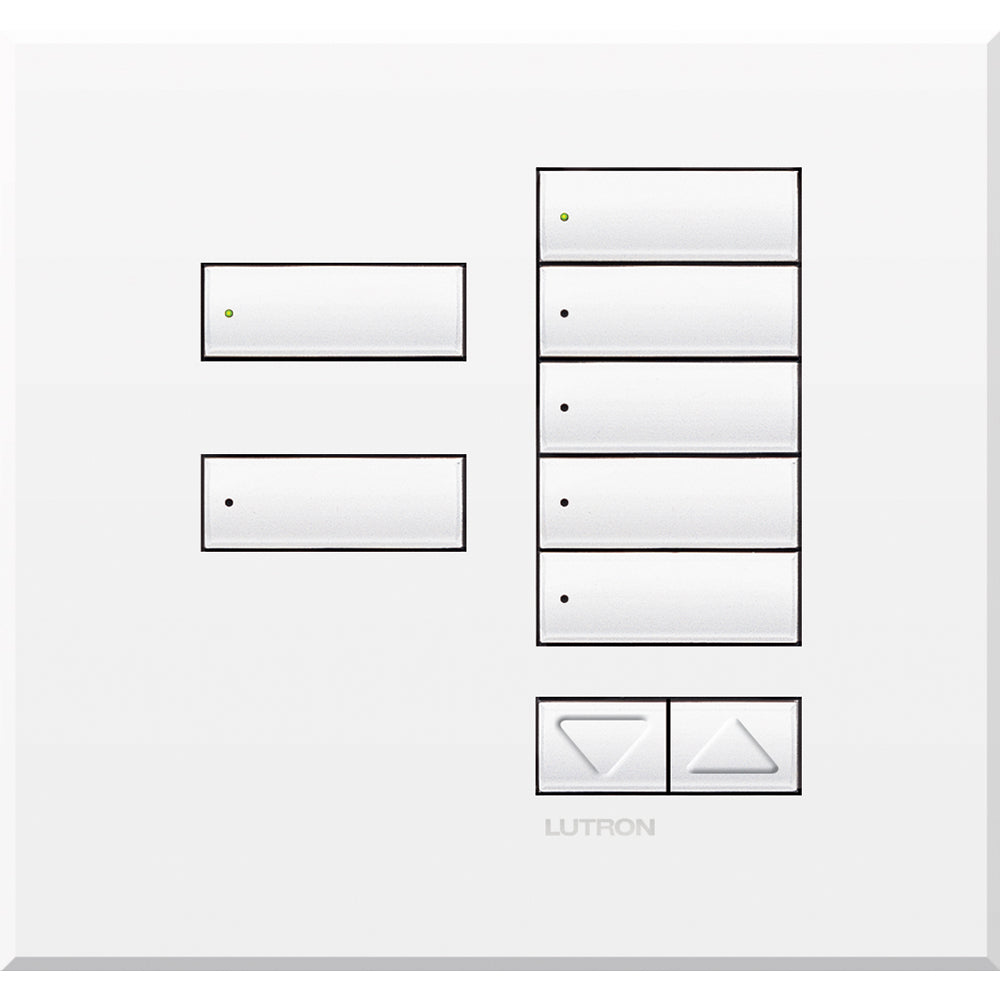

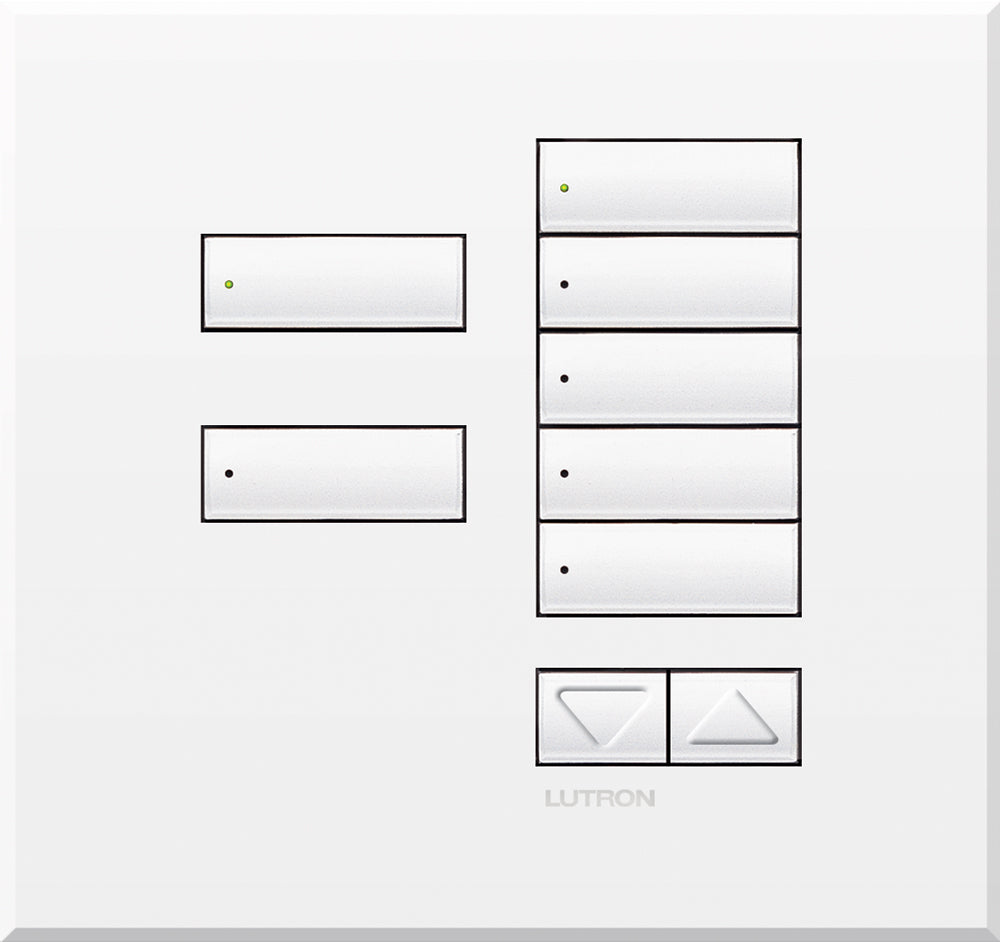

GRAFIK Eye QS International seeTouch QS Wallstation, 7-button no insert raise/lower

• Family/Collection: International seeTouch QS
• 7-button with raise/lower, non-insert model. Often used to select and adjust scenes. Large, rounded buttons are easy to use. Backlit buttons with optional engraving make it easy to find and operate the wallstation in low light conditions. Optional button engraving is angled up to the eye for easy reading. The LEDs next to each button are used during programming and provide feedback when the buttons are pressed. Master raise/lower brightens or dims all lighting or raises/lowers all assigned shades in the last selected scene or toggled group. Functions as 2 independently programmable controllers. Left column mimics a 2-button column and right column mimics a 5-button column. Wallstation can control 2 lighting or shade groups or one of each, or as one shade group control where the right keypad controls the group of shades indicated by the left keypad. Shade control (E01 engraving) used to control multiple groups of shades independently from a single-gang keypad. Can control Sivoia QS window treatments. Pressing the open or close button once will cause the window treatments to move to their fully open or closed position. Tap any button (regardless of function) to stop a shade that is in motion. Three programmable preset buttons. Receives up to two contact closure inputs via a connector on the back of the wallstation.
• Often used in entryways to select Scene 1 and Off.
• Large, rounded buttons are easy to use.
• Backlit buttons with optional engraving make it easy to find and operate the Wallstation in low light conditions.
• Optional Button Engraving Is Angled Up To The Eye For Easy Reading.
• The LEDs next to each button are used during programming and provide feedback when the buttons are pressed.
• Receives up to two contact closure inputs via a connector on the back of the Wallstation

• Application: Lighting and Shade Control
• Brand Name: Lutron
• Color: Arctic White
• Length: 3.5
• Material: Plastic/Metal
• Special Features: 7-button with raise/lower, non-insert model. Often used to select and adjust scenes. Large, rounded buttons are easy to use. Backlit buttons with optional engraving make it easy to find and operate the wallstation in low light conditions. Optional button engraving is angled up to the eye for easy reading. The LEDs next to each button are used during programming and provide feedback when the buttons are pressed. Master raise/lower brightens or dims all lighting or raises/lowers all assigned shades in the last selected scene or toggled group. Functions as 2 independently programmable controllers. Left column mimics a 2-button column and right column mimics a 5-button column. Wallstation can control 2 lighting or shade groups or one of each, or as one shade group control where the right keypad controls the group of shades indicated by the left keypad. Shade control (E01 engraving) used to control multiple groups of shades independently from a single-gang keypad. Can control Sivoia QS window treatments. Pressing the open or close button once will cause the window treatments to move to their fully open or closed position. Tap any button (regardless of function) to stop a shade that is in motion. Three programmable preset buttons. Receives up to two contact closure inputs via a connector on the back of the wallstation.
• Sub Brand: International seeTouch QS
• Type: Wallstation
• Width: 3.5
