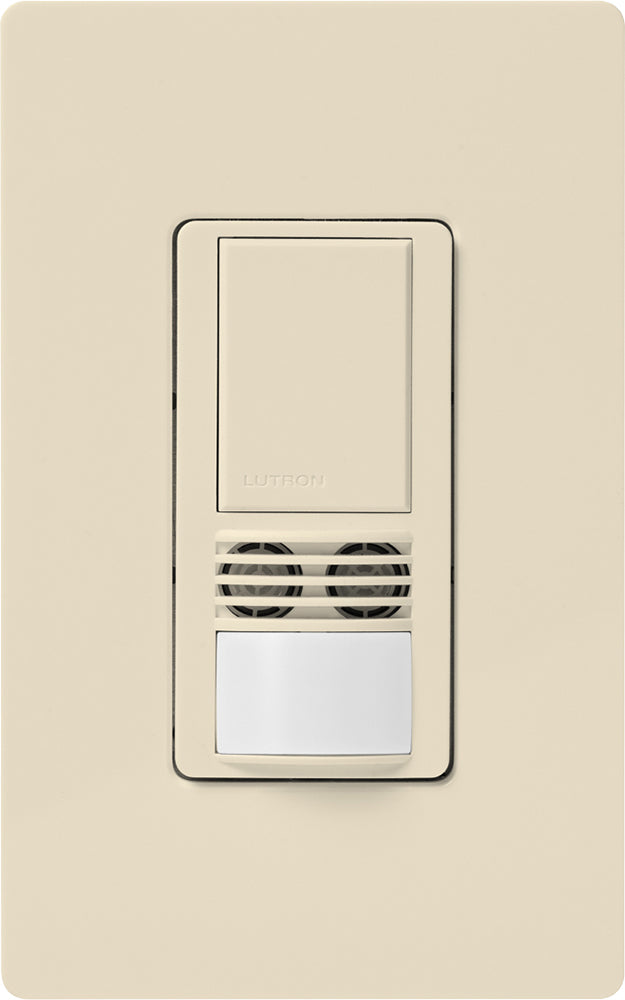

TAA Maestro Dual Technology (Dual Tech) vacancy sensor switch, neutral connection required applies exclusive XCT Technology for minor and fine motion detection

• Family/Collection: Maestro
• XCT Technology for major, minor, fine, and very fine motion detection
• 180 deg sensor field-of-view
• Up to 900 ft2 (81 m2) major motion coverage and 400 ft2 (36 m2) minor motion coverage
• Two Ambient Light Detect (Ald) Options: Learning Ald Mode: Uses Adaptive Algorithm. Sensor Learns User'S Preferred Light Level Over Time. Fixed Ald Mode: Four Selectable Light Level Thresholds: Hi, Med, Low, Min
• Adjustable timeout for each circuit (1, 5, 15, or 30 minutes)
• Sensitivity adjustment; PIR (Hi, Med, Low, Min); Ultrasonic (Hi, Med, Low, Off)
• Switches all lighting loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent

• Application: Lighting Control
• Body: Plastic
• Brand Name: Lutron
• Color: Light Almond
• Indicator: Smart ambient light detection (ALD)/Fixed ambient light detection
• Load: 6 A@10-277 VAC lights/4.4 A (0.167 HP)@120 VAC fan
• Mounting: Wallbox
• Operating Temperature: 32 to 104
• Sensing Range: 900 ft2 (82 m2) major motion coverage/400 ft2 (36 m2) minor motion coverage
• Special Features: Applies Lutron's exclusive XCT Technology (Dual Tech) to the ultrasonic as well as the passive infrared technology in this sensor to create a product that can detect very fine motion, such as typing. Includes all of the great features found in the rest of the Maestro sensor family, including: adaptive relay switching, smart ambient light detection, and simple button presses for changing settings. XCT technology for major, minor, fine, and very fine motion detection. 180 degree field-of-view. Tamper-resistant PIR lens. Up to 900 ft2 (81 m2) major motion coverage and 400 ft2 (36 m2) minor motion coverage. Two ambient light detect (ALD) options: Learning ALD mode: uses adaptive algorithm. Sensor learns user's preferred light level over time. Fixed ALD mode: four selectable light level thresholds: Hi, Med, Low, Min. Meets Title 24/Title 20 requirements for vacancy sensors. Adjustable timeout for each circuit (1, 5, 15, or 30 minutes). Sensitivity adjustment: PIR (Hi, Med, Min), ultrasonic (Hi, Med, Low, Off). Switches all lighting loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent. Switches fan loads at 120 V. Works with Maestro accessory switches in multi-location applications. Requires neutral wiring.
• Standard: UL, cUL, NOM
• Sub Brand: Maestro
• Supply Voltage: 120 to 277
• Type: Vacancy sensor switch, single-circuit, multi-location/3-way/single-pole
