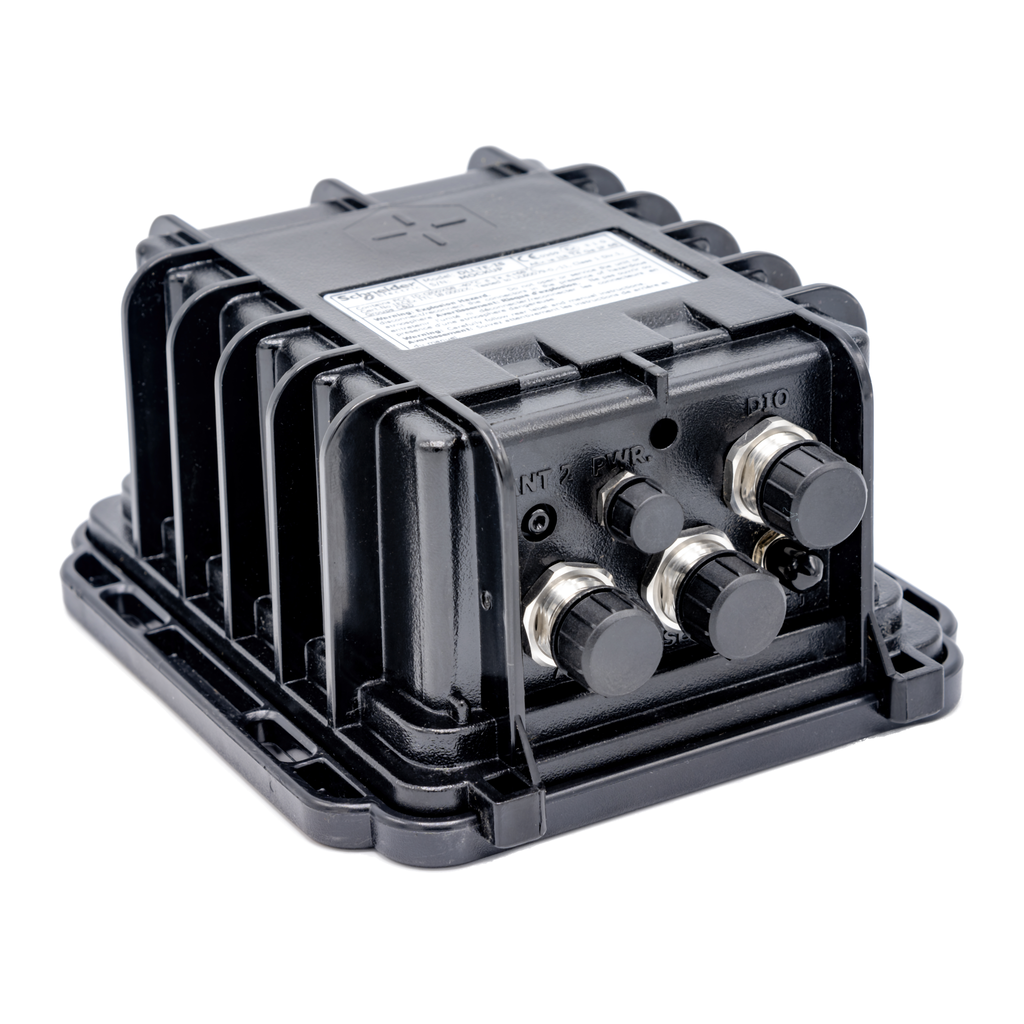

4G LTE, Data Logger, intrinsically safe, on premise remote, manufacturer SIM, storage setup, firmware update, software update
4G LTE, Data Logger, intrinsically safe, on premise remote, manufacturer SIM, storage setup, firmware update, software update
12000400239
Product Description
- Range Of Product: Data Logger
- Memory Capacity: 8 GB
- Encryption Protocol: AES 256
- Variant: intrinsically safe
- Communication Service: data logging in CSV files || DNP3 NET protocol || OPC UA client
- Cybersecurity: Transport Layer Security version 1.3
- Product Or Component Type: wireless remote data logger
- Service Benefits: storage setup, software update and firmware update
- Data Storage Equipment: on premise remote
Complementary
- Analogue Input Number: 3
- Function Available: GPS tracking || global multi network roaming capacity
- Discrete Output Number: 3.0
- Height: 165 mm
- Battery Life: 5.0 year(s)
- Number Of Sensors: 8
- Analogue Input Range: 4...20 mA || 0...24 V
- Number Of Port: 3.0 each accepts serial, analog and digital inputs
- Housing Material: polycarbonate
- Battery Capacity: 32.0 Ah
- Communication Network Type: 2G/3G/4G || bluetooth local configuration
- Width: 132 mm
- Depth: 73 mm
- Device Composition: dual SIM slot || manufacturer provided SIM || external antenna
- Supply: Li battery 3.9 VDC 3 A || external power supply 6...24 VDC
- Discrete Input Number: 3.0 dry contact
- Net Weight: 1 kg
- Number Of Hw Interfaces Serial Rs485: 16.0
- Communication Port Protocol: Modbus RTU and ASCII RS232/RS485
Offer Sustainability
- China Rohs Regulation: X
- Circularity Profile: ENVEOLI2104013EN
- Rohs Exemption Information: Yes
- Mercury Free: Yes
- Environmental Disclosure: ENVPEP2104013EN
- Eu Rohs Directive: Compliant
- Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Environment
- Product Certifications: CE || IECEx || ATEX zone 0 || ITL class 1, division 1, zone 0
- Ambient Air Temperature For Operation: -40-80 °C
- Nema Degree Of Protection: NEMA 6P
- Ambient Air Temperature For Storage: -40-80 °C
- Standards: EN 61010-1:2010 || IEC 61010-1 || FCC part 15 Subpart B || EN 301-489-1 || EN 301-489-7 || ETSI EN 301 908-1 || ETSI EN 301 511
- Ip Degree Of Protection: IP68
