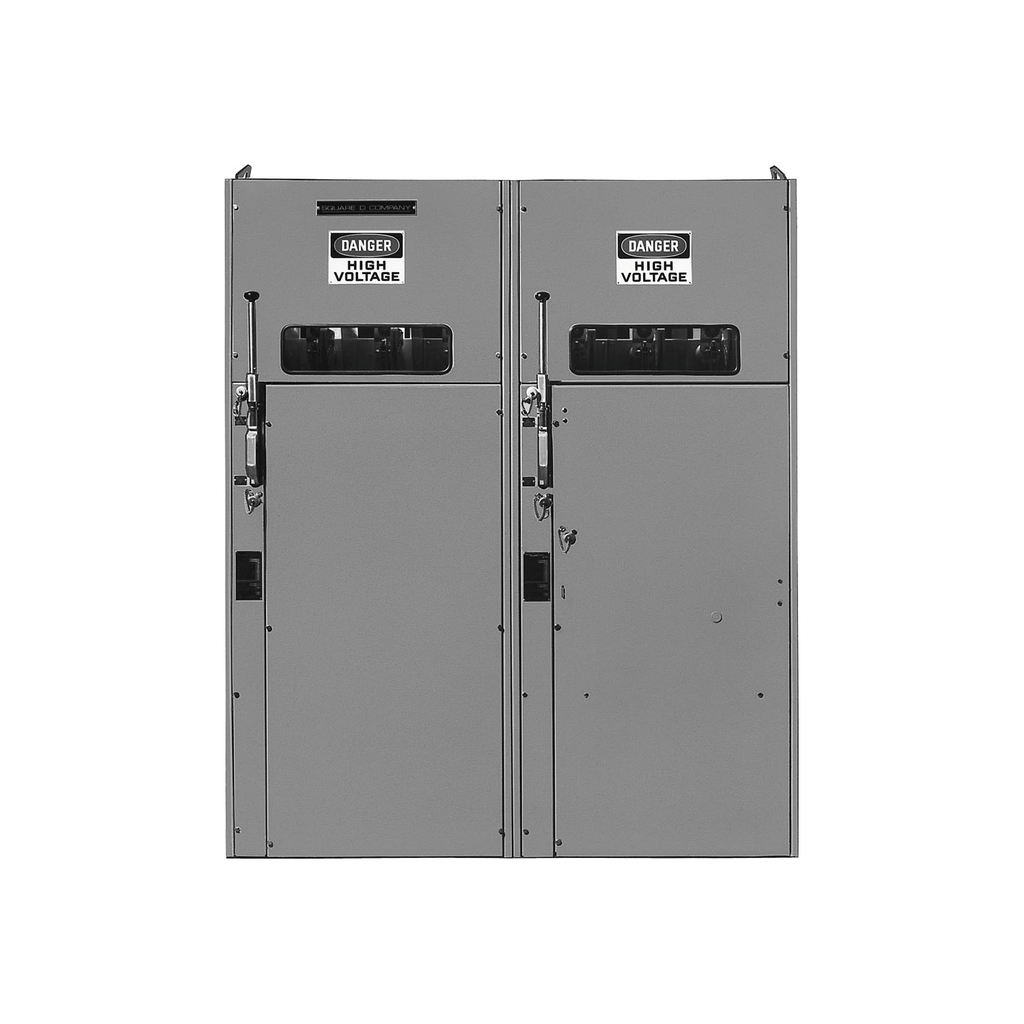

Switchgear, HVL, single, 600A, 4.76kV, 3 pole, unfused, NEMA 3R
Switchgear, HVL, single, 600A, 4.76kV, 3 pole, unfused, NEMA 3R
HVL305NW
Product Description
- Product Or Component Type: switch mechanism
- Accessory / Separate Part Type: enclosure heater
Contractual warranty
- Warranty: 18 months
Complementary
- Network Frequency: 50/60 Hz
- Braking Current: 40 kA
- [Ur] Highest Voltage For Equipment: 4.76 kV
- Nema Degree Of Protection: NEMA 3R
- Poles Description: 3P
- Electrical Connection: lugs
- Line Rated Current: 600 A
- [Ui] Rated Insulation Voltage: 60 kV
- Awg Gauge: AWG 2...600 kcmil aluminium/copper
- Enclosure Nominal Height: 97 in
- Enclosure Nominal Depth: 60 in
- Type Of Installation: outdoor
- Enclosure Nominal Width: 38 in
Environment
- Product Certifications: cUL || UL Listed
