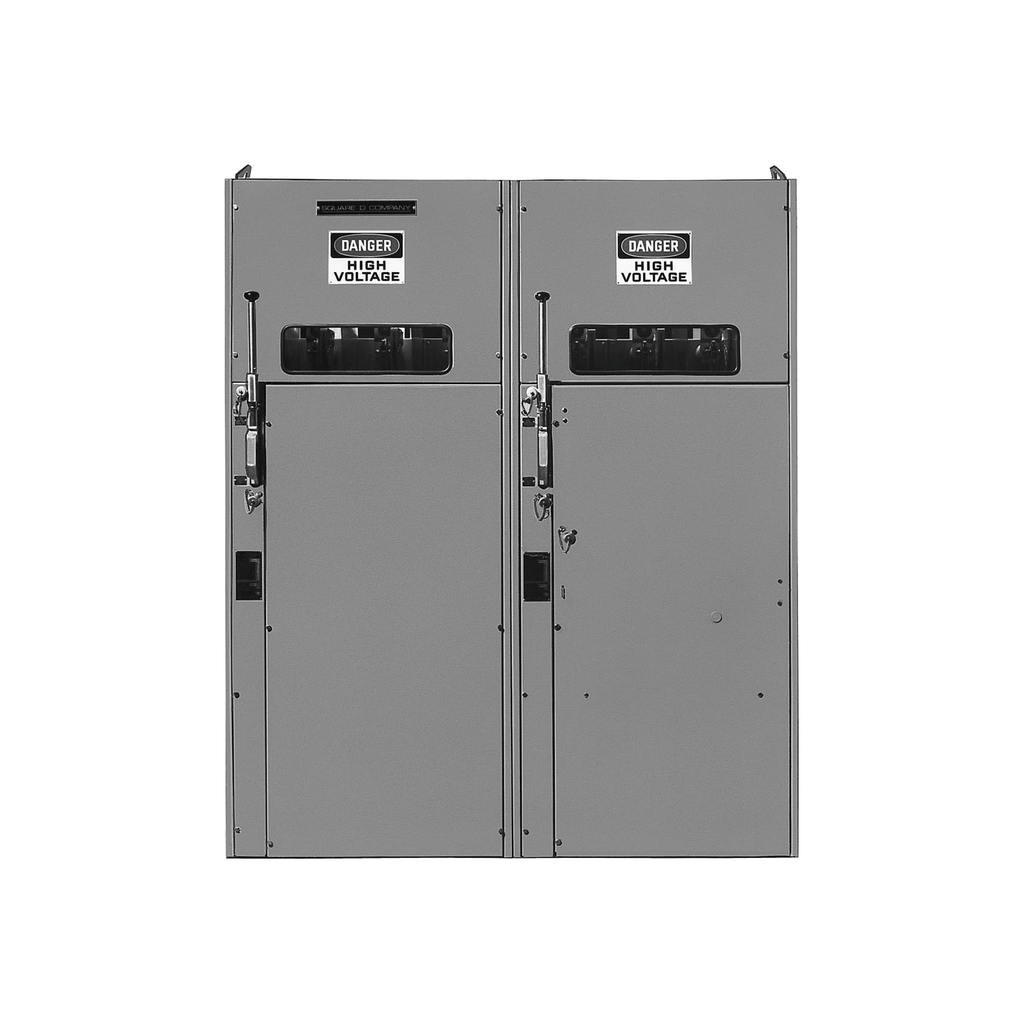

Switchgear, HVL, single, 600A, 15kV, 3 pole, 10 to 100E DIN/E current limit fuse, NEMA 3R

• Provided Equipment: fuse to be ordered separately
• Product Or Component Type: switched fuse mechanism
• Accessory / Separate Part Type: enclosure heater

Contractual warranty

• Warranty: 18 months

Complementary

• Associated Fuse Rating: 10 A E || 15 A E || 20 A E || 25 A E || 30 A E || 40 A E || 50 A E || 65 A E || 80 A E || 100 A E
• Network Frequency: 50/60 Hz
• Braking Current: 40 kA
• [Ur] Highest Voltage For Equipment: 15 kV
• Nema Degree Of Protection: NEMA 3R
• Poles Description: 3P
• Electrical Connection: lugs
• Line Rated Current: 600 A
• [Ui] Rated Insulation Voltage: 90 kV
• Awg Gauge: AWG 2...600 kcmil aluminium/copper
• Protection Type: fuse current limiter
• Enclosure Nominal Height: 97 in
• Enclosure Nominal Depth: 60 in
• Type Of Installation: outdoor
• Enclosure Nominal Width: 38 in

Environment

• Product Certifications: cUL || UL Listed
