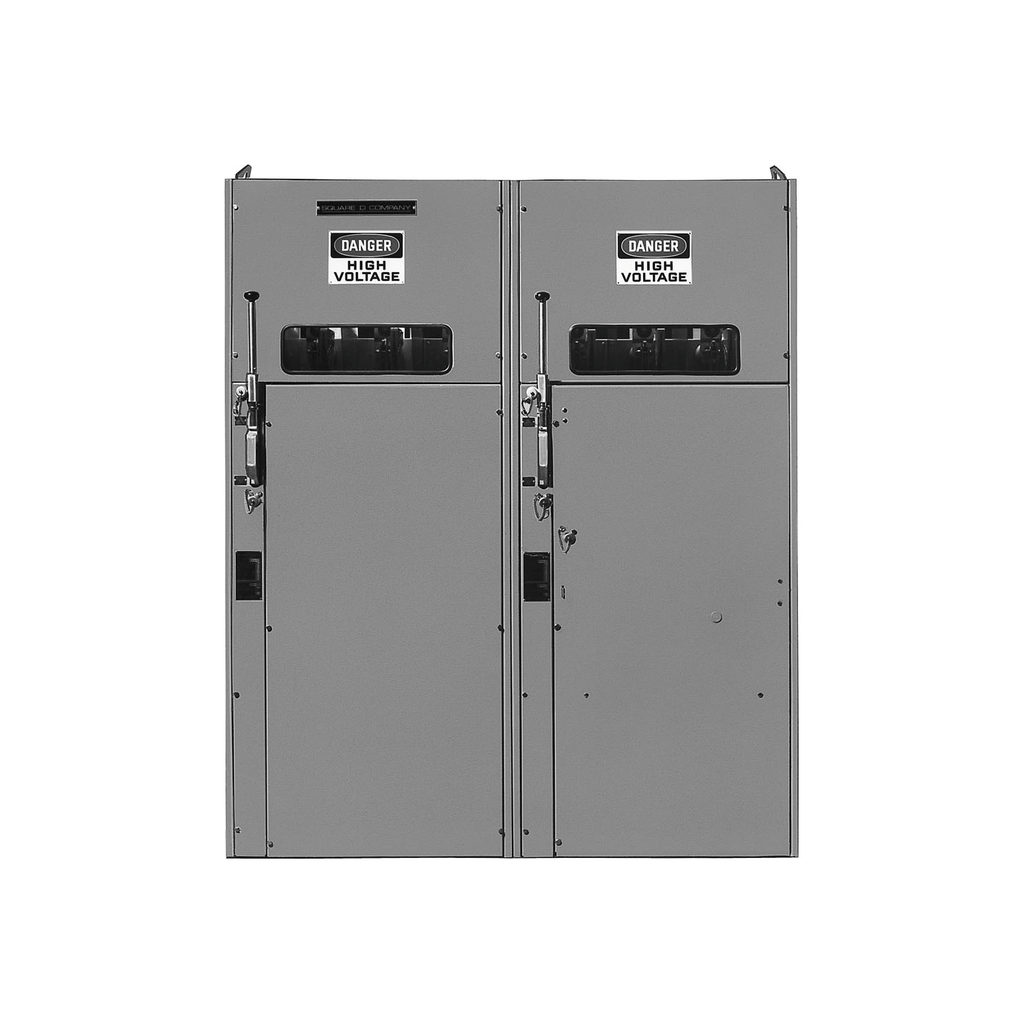

Switchgear, HVL, single, 600A, 4.76kV, 10 to 450E current limit fuse, transformer disconnect, left, NEMA 1

• Provided Equipment: fuse to be ordered separately
• Device Application: transformer left side
• Product Or Component Type: Transformer Disconnect

Contractual warranty

• Warranty: 18 months

Complementary

• Associated Fuse Rating: 10 A E || 15 A E || 20 A E || 25 A E || 30 A E || 40 A E || 50 A E || 65 A E || 80 A E || 100 A E || 125 A E || 150 A E || 175 A E || 200 A E || 250 A E || 300 A E || 400 A E || 350 A E || 500 A E
• Network Frequency: 50/60 Hz
• Braking Current: 40 kA
• [Ur] Highest Voltage For Equipment: 4.76 kV
• Nema Degree Of Protection: NEMA 1
• Poles Description: 3P
• Electrical Connection: lugs
• Line Rated Current: 600 A
• [Ui] Rated Insulation Voltage: 60 kV
• Awg Gauge: AWG 2...600 kcmil aluminium/copper
• Load Current: 300 A
• Protection Type: fuse current limiter
• Enclosure Nominal Height: 90 in
• Enclosure Nominal Depth: 54.5 in
• Enclosure Nominal Width: 38 in

Environment

• Product Certifications: cUL || UL Listed
