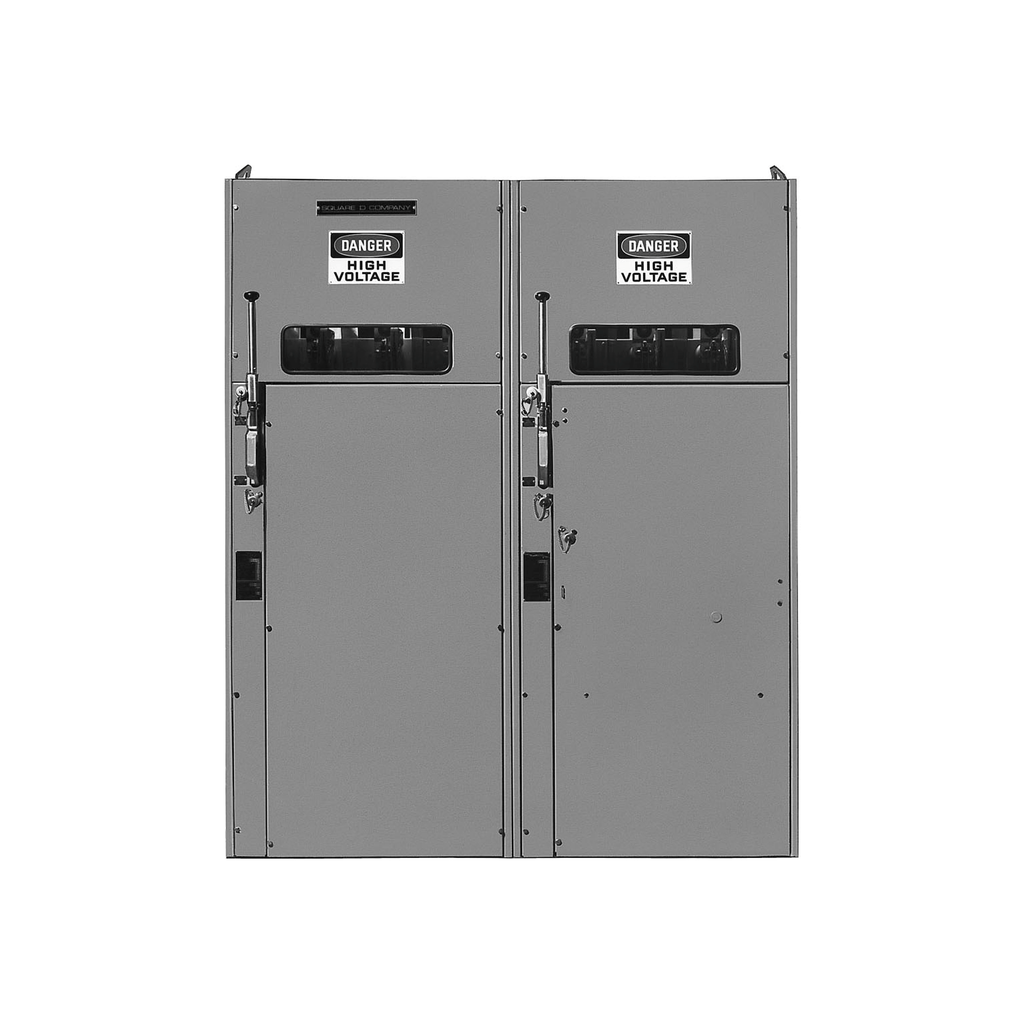

Switchgear, HVL, single, 600A, 15kV, 125 to 200E current limit fuse, transformer disconnect, left, NEMA 3R

• Provided Equipment: fuse to be ordered separately
• Device Application: transformer left side
• Product Or Component Type: Transformer Disconnect

Contractual warranty

• Warranty: 18 months

Complementary

• Associated Fuse Rating: 125 A E || 150 A E || 175 A E || 200 A E
• Network Frequency: 50/60 Hz
• Braking Current: 40 kA
• [Ur] Highest Voltage For Equipment: 15 kV
• Nema Degree Of Protection: NEMA 3R
• Poles Description: 3P
• Electrical Connection: lugs
• Line Rated Current: 600 A
• [Ui] Rated Insulation Voltage: 95 kV
• Awg Gauge: AWG 2...600 kcmil aluminium/copper
• Load Current: 300 A
• Protection Type: fuse current limiter
• Enclosure Nominal Height: 97 in
• Enclosure Nominal Depth: 60 in
• Enclosure Nominal Width: 38 in

Environment

• Product Certifications: UL Listed || cUL
