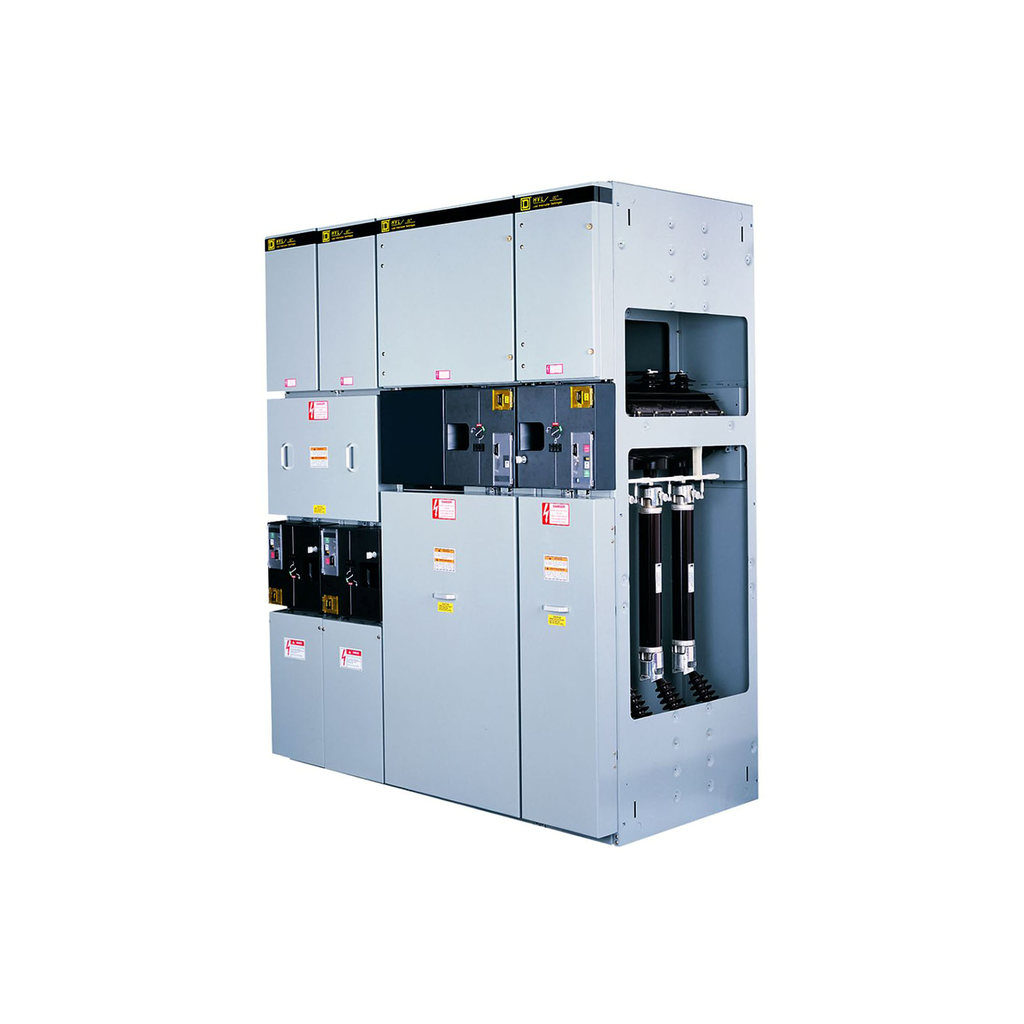

Switchgear, HVLcc, fused, 15kV, 600A, 14.75in W, bottom entry

• Provided Equipment: fuse to be ordered separately
• Hub Type: B
• Product Or Component Type: switched fuse mechanism

Contractual warranty

• Warranty: 18 months

Complementary

• Associated Fuse Rating: 10 A E || 15 A E || 20 A E || 25 A E || 30 A E || 40 A E || 50 A E || 65 A E || 80 A E || 100 A E || 125 A E || 150 A E || 175 A E || 200 A E
• Service Feed Location: UG
• Network Frequency: 50/60 Hz
• Braking Current: 40 kA
• [Ur] Highest Voltage For Equipment: 15 kV
• Nema Degree Of Protection: NEMA 1
• Poles Description: 3P
• Electrical Connection: lugs
• Line Rated Current: 600 A
• [Ui] Rated Insulation Voltage: 95 kV
• Awg Gauge: AWG 2...350 kcmil 2 aluminium/copper
• Protection Type: fuse current limiter
• Enclosure Nominal Height: 90 in
• Enclosure Nominal Depth: 37.25 in
• Enclosure Nominal Width: 14.75 in
