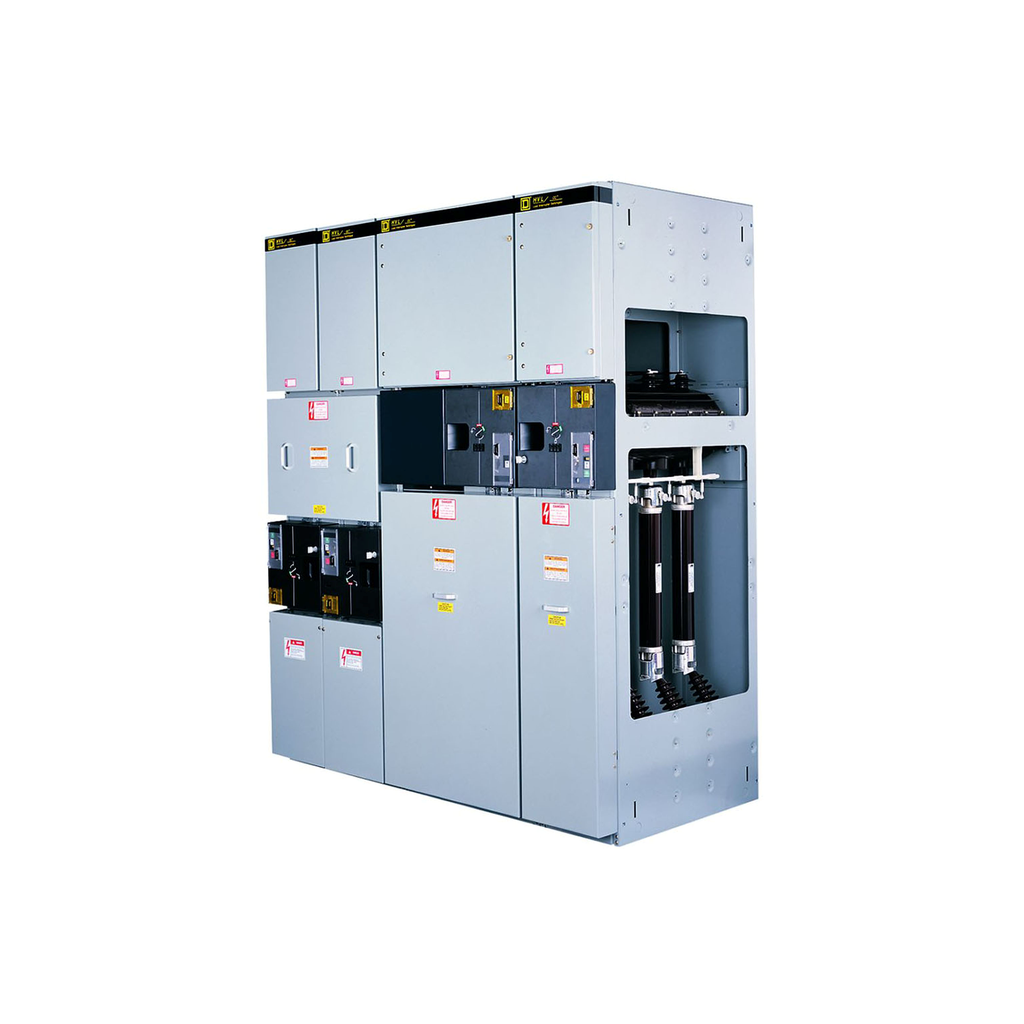

Switchgear, HVL/cc, 600A, 15kV, unfused, 20.00in W, bottom entry
Switchgear, HVL/cc, 600A, 15kV, unfused, 20.00in W, bottom entry
HVLCCB20315N
Available to Order
Couldn't load pickup availability
Product Description
- Hub Type: B
- Product Or Component Type: switch mechanism
Contractual warranty
- Warranty: 18 months
Complementary
- Service Feed Location: UG
- Network Frequency: 50/60 Hz
- Braking Current: 40 kA
- [Ur] Highest Voltage For Equipment: 4.76 kV
- Nema Degree Of Protection: NEMA 1
- Poles Description: 3P
- Electrical Connection: lugs
- Line Rated Current: 600 A
- [Ui] Rated Insulation Voltage: 60 kV
- Awg Gauge: AWG 2...350 kcmil 2 aluminium/copper
- Enclosure Nominal Height: 90 in
- Enclosure Nominal Depth: 37.25 in
- Enclosure Nominal Width: 20 in
