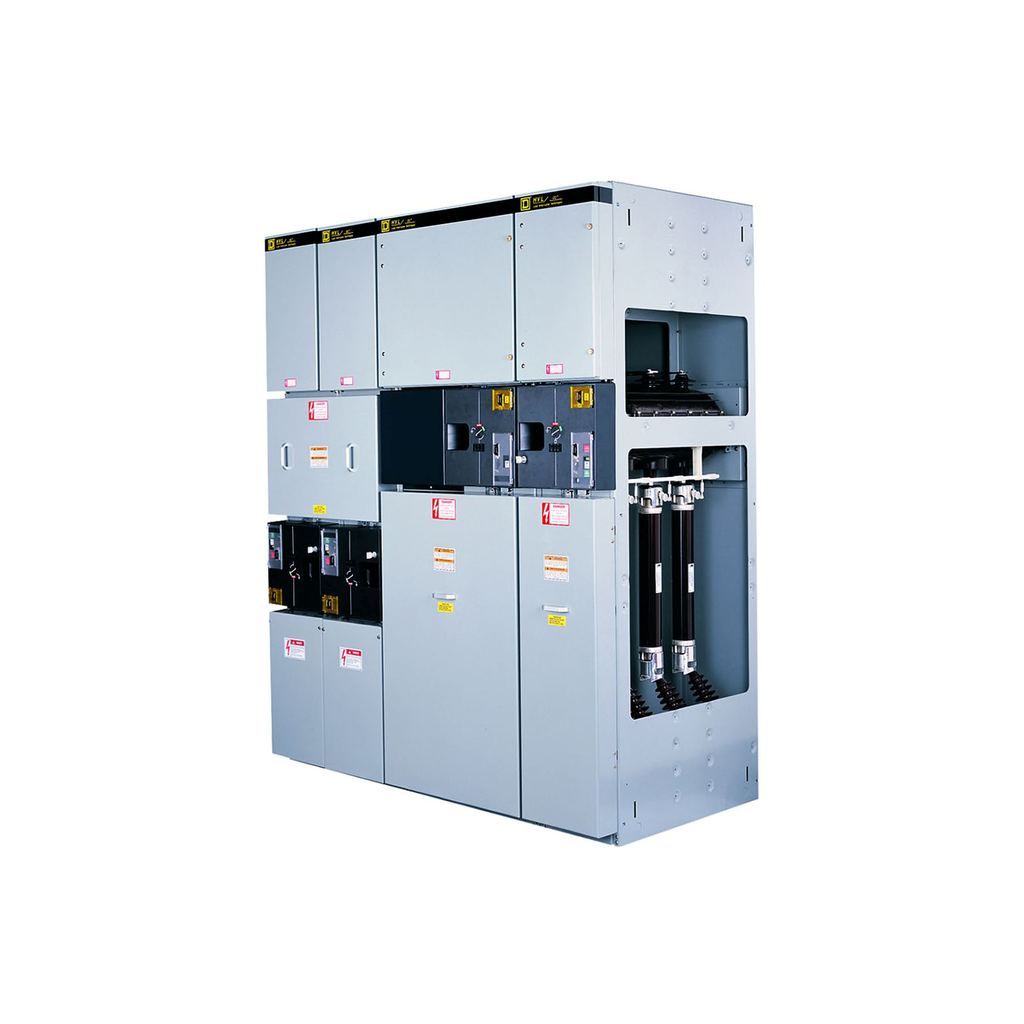

Switchgear, HVLcc, fused, 15kV, 600A, 20.00in W, bottom entry, transformer on right
Switchgear, HVLcc, fused, 15kV, 600A, 20.00in W, bottom entry, transformer on right
HVLCCB20515DGR
Available to Order
Couldn't load pickup availability
Product Description
- Provided Equipment: fuse to be ordered separately
- Hub Type: B
- Device Application: transformer right side
- Product Or Component Type: switched fuse mechanism
Contractual warranty
- Warranty: 18 months
Complementary
- Associated Fuse Rating: 10 A E || 15 A E || 20 A E || 25 A E || 30 A E || 40 A E || 50 A E || 65 A E || 80 A E || 100 A E || 125 A E || 150 A E || 175 A E || 200 A E
- Service Feed Location: UG
- Network Frequency: 50/60 Hz
- Braking Current: 40 kA
- [Ur] Highest Voltage For Equipment: 15 kV
- Nema Degree Of Protection: NEMA 1
- Poles Description: 3P
- Electrical Connection: lugs
- Line Rated Current: 600 A
- [Ui] Rated Insulation Voltage: 95 kV
- Awg Gauge: AWG 2...350 kcmil 2 aluminium/copper
- Load Current: 300 A
- Protection Type: fuse current limiter
- Enclosure Nominal Height: 90 in
- Enclosure Nominal Depth: 37.25 in
- Enclosure Nominal Width: 40 in
Spec Sheet
Compact, compartmentalized and durable. HVL/cc Medium Voltage Metal-Enclosed Switchgear Brochure - 998-20791974_GMA-US_HVLcc-BR_hi-res (pdf)
Cost-Effective Switchgear Modernization Brochure - 998-19819263_GMA-US_Modernization+Brochure (pdf)
Extend the Life of Existing Switchgear Brochure - 998-20996568_GMA-US_Services+Brochure (pdf)
Switchgear Virtual Main Arc Flash Mitigation System Brochure - 1910BR1302 (pdf)
EcoStruxure Power Asset Performance eGuide - 998-20406243_US_NEMA (pdf)
Square D HVL/cc MV Metal-Enclosed Switchgear Brochure - 998-20791974_GMA-US_hires (pdf)
GHA Gas-Insulated Medium Voltage Switchgear Brochure - 0600BR1201R08-14 (pdf)
Medium Voltage Products ANSI Panorama Brochure - 998-20791722_GMA-US_MV-ANSI-Panorama (pdf)
Outline - Digest HVLcc Duplex Switch 4.76kV / 15.0kV, 600A, App B, 20 Wide, Fused, Indoor Dry Transformer Connection - 44046-215 (dxf)
Catalog
Square D HVL/cc MV Metal-Enclosed Switchgear Catalog - 6045CT9801R304 (pdf)Brochure
ANSI Panorama: Medium-Voltage Product Offer Brochure - SE-1986_ANSI+Panorama+[998-1186690_US_A]+0508 (pdf)Compact, compartmentalized and durable. HVL/cc Medium Voltage Metal-Enclosed Switchgear Brochure - 998-20791974_GMA-US_HVLcc-BR_hi-res (pdf)
Cost-Effective Switchgear Modernization Brochure - 998-19819263_GMA-US_Modernization+Brochure (pdf)
Extend the Life of Existing Switchgear Brochure - 998-20996568_GMA-US_Services+Brochure (pdf)
Switchgear Virtual Main Arc Flash Mitigation System Brochure - 1910BR1302 (pdf)
EcoStruxure Power Asset Performance eGuide - 998-20406243_US_NEMA (pdf)
Square D HVL/cc MV Metal-Enclosed Switchgear Brochure - 998-20791974_GMA-US_hires (pdf)
GHA Gas-Insulated Medium Voltage Switchgear Brochure - 0600BR1201R08-14 (pdf)
Medium Voltage Products ANSI Panorama Brochure - 998-20791722_GMA-US_MV-ANSI-Panorama (pdf)
Data Bulletin
Understanding Type 2 Coordinated Protection in Motor Branch Circuits Data Bulletin - 0140PD9202A (pdf)CAD
Outline - Digest HVLcc Duplex Switch 4.76kV / 15.0kV, 600A, App B, 20 Wide, Fused, Indoor Dry Transformer Connection - 44046-215 (dwg)Outline - Digest HVLcc Duplex Switch 4.76kV / 15.0kV, 600A, App B, 20 Wide, Fused, Indoor Dry Transformer Connection - 44046-215 (dxf)
