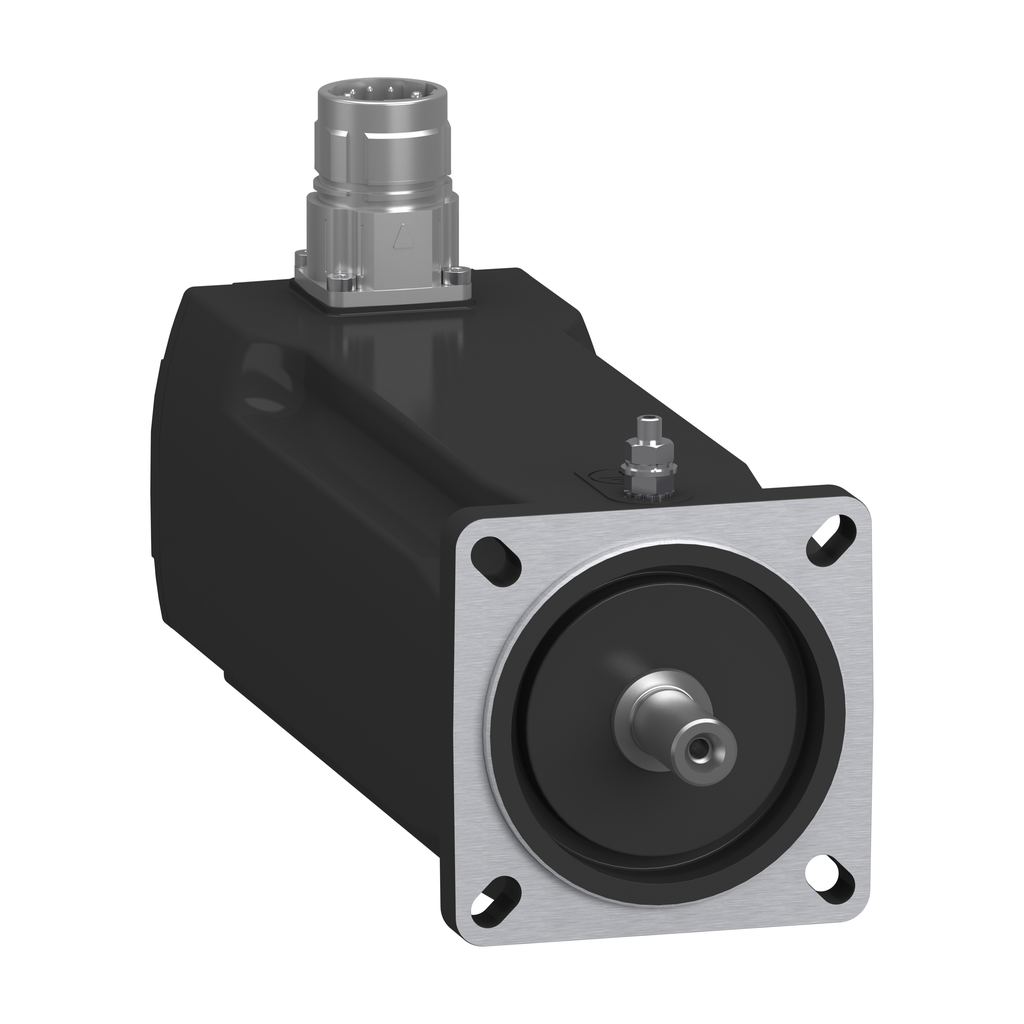

SH3 OMC motor 70mm 2 st. IP65/54 smooth sh. DSL single turn str. conn.M23

• Product Or Component Type: servo motor
• Range Compatibility: PacDrive 3
• Device Short Name: SH3.....P

Complementary

• Circle Diameter Of The Mounting Holes: 82 mm
• Continuous Power: 1130 W
• Maximum Mechanical Speed: 8000 rpm
• Maximum Radial Force Fr: 900 N 1000 rpm
• Encoder Type: absolute single turn Hiperface DSL
• Mounting Support: international standard flange
• Rotor Inertia: 0.410 kg.cm²
• Number Of Motor Poles: 3
• Back Emf Constant: 48 V/krpm 20 °C
• Maximum Axial Force Fa: 160 N
• Centring Collar Depth: 2.5 mm
• Holding Brake: without
• Speed Feedback Resolution: 262144 points/turn
• Shaft Length: 23 mm
• Phase: three phase
• Length: 187 mm
• Net Weight: 2.8 kg
• Maximum Current Irms: 11.8 A
• Centring Collar Diameter: 60 mm
• Stator Inductance: 21.3 mH
• Motor Flange Size: 70 mm
• [Us] Rated Supply Voltage: 115...480 V
• Peak Stall Torque: 7.6 N.m 115...480 V three phase
• Number Of Mounting Holes: 4
• Shaft Diameter: 11 mm
• Nominal Output Power: 610 W 230 V single phase || 1130 W 400 V three phase || 1130 W 480 V three phase
• Mounting Holes Diameter: 5.5 mm
• Type Of Cooling: natural convection
• Ip Degree Of Protection: motor IP65 EN/IEC 60034-5 || shaft bushing without shaft seal ring IP54 EN/IEC 60034-5
• Shaft End: smooth shaft
• Nominal Speed: 3000 rpm 230 V single phase || 6000 rpm 400 V three phase || 7200 rpm 480 V three phase
• Electrical Connection: rotatable right angled connector
• Stator Resistance: 4.2 Ohm
• Continuous Stall Current: 2.9 A
• Nominal Torque: 2.1 N.m 230 V single phase || 1.8 N.m 400 V three phase || 1.8 N.m 480 V three phase
• Torque Constant: 0.7 N.m/A 120 °C
• Continuous Stall Torque: 2.04 N.m 115...480 V three phase
