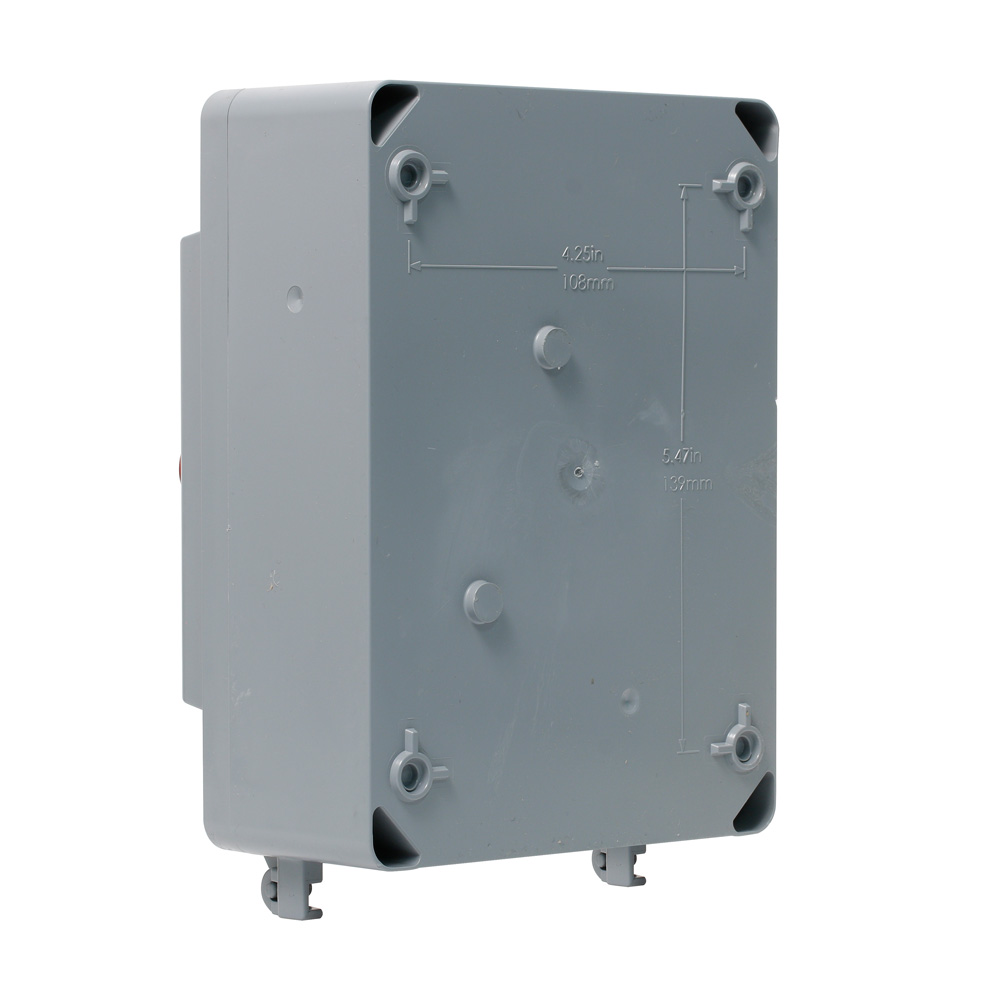

40 Amp, 600 Volt, 3-Pole, Non-Fused Manual Motor Controller, Suitable as Motor Disconnect, Type 4X Thermoplastic Enclosure, IP67-Watertight, NSF Certified

NEMA

• WD-1
• WD-6

• Country of Origin: Mexico

Electrical Specifications

• Amperage: 40 A
• Dielectric Voltage: Withstands 2200V for 1 min.
• Endurance: 6,000 cycles inductive motor type load
• Flammability: Rated V-0 per UL 94
• Grounding: Non-Grounding
• Operating Temperature: -40°C to 60°C
• Pole: 3
• Temperature Rise: 50ºC Max at full rated current
• Voltage: 600 VAC

Environmental Specifications

• Dust: Type 12K per UL 50
• Enclosure Rating: Type 4X
• Hosedown: Type 4X per UL 50
• Rain: Type 3R per UL 50

Material Specifications

• Contacts: Silver-Cadmium .031 Thick
• Enclosure: Thermoplastic Polyester
• Terminal Screws: Nickel-Plated Brass 10-32

Mechanical Specifications

• Crush Test: 100 lbs
• Impact: 1.2 lb ball dropped from 5 ft
• Mold Stress Relief: 70ºC for 7 hours
• Product ID: Ratings are permanently marked on device
• Terminal Accom.: #10-#8 AWG
• Terminal ID: T1, T2, T3, L1, L2, L3 marked on back of switch mechanism
• Termination: Switch Mechanism Back & Side
• Torque Range: 20 inch pounds
• xxx: Remains in place with 20lb push

Standards and Certifications

• ANSI: C-73
• NEMA: WD-1 & WD-6
• NOM: NOM-ANCE
• NSF: 14159-1 Meat & Poultry Processing Equipment
• UL 60947-4-1: supersedes UL 508
• Warranty: 2-Year Limited
• cUL per CSA C22.2 No. 111: File #E63969

Product Features

• Device Type: Enclosed Switch
