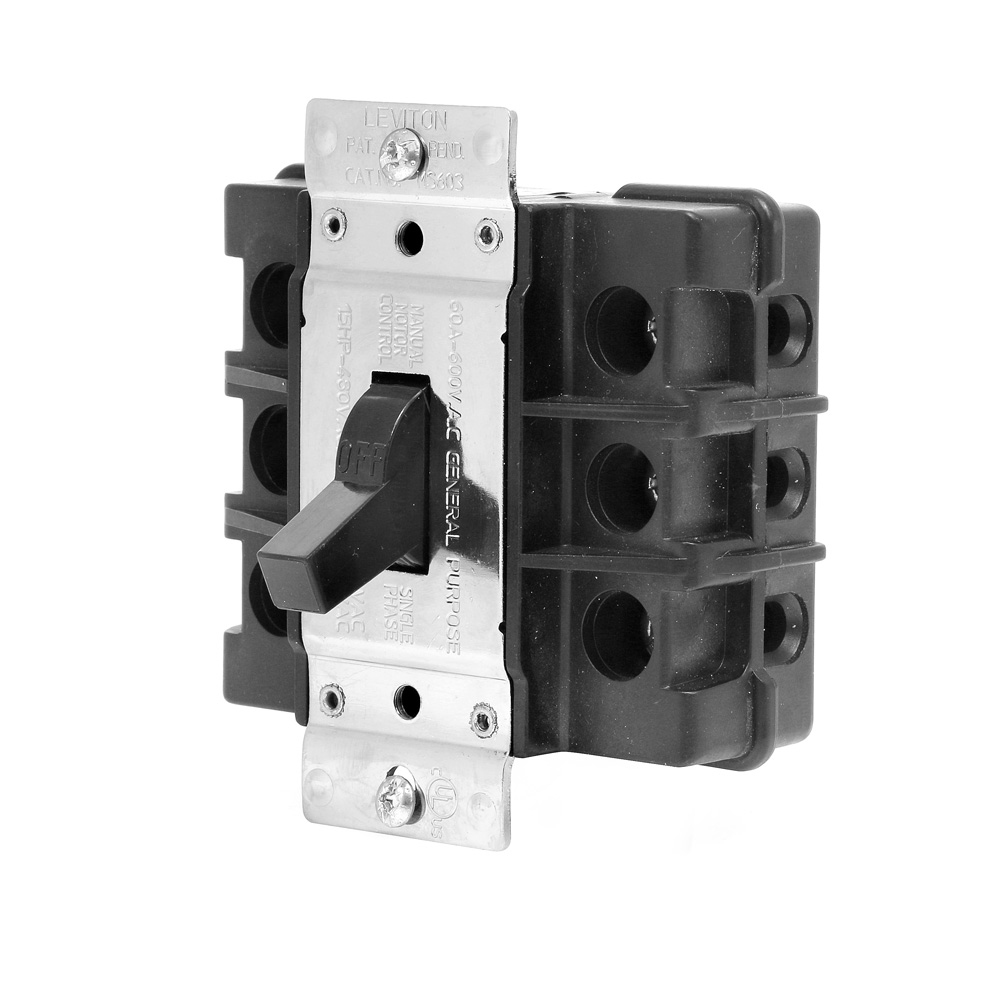

Manual Motor Controller

Manual Motor Controller

Part Number: MS603-FW

UPC:

Your Price:
Sale price $163.71 ea Regular price
Regular price $163.71 ea
Sold out

Available to Order

Color
View full details

Product Description

  • Powerswitch® Industrial Grade AC Manual Motor Controllers provide safe, reliable control of a variety of motor loads. Typical applications include manual ON/OFF switching control of conveyor systems, pumping machines, HVAC systems, air compressors and other heavy manufacturing equipment. These motor controllers are available for both single-phase and three-phase applications.

NEMA

  • WD-1
  • WD-6
  • Country of Origin: Mexico
  • RoHS Compliant: Yes

AC Horsepower Ratings

  • HP Rating: 10HP-240V, 25HP-480V, 30HP-600V

Electrical Specifications

  • Amperage: 60 A
  • Dielectric Voltage: Withstands 2200 VAC for 1 min.
  • Endurance: 6,000 cycles inductive motor type load
  • Grounding: Non-Grounding
  • Overload UL20 Test: 50 cycles at 6 times full rated current
  • Pole: 3
  • Short Circuit Current Rating: 5,000 RMS symmetrical amps at 600V AC max
  • Temperature Rise: 50ºC Max at full rated current
  • Voltage: 600 VAC

Environmental Specifications

  • Flammability: Rated V-0 per UL 94
  • Operating Temperature: -40°C to 60°C

Material Specifications

  • Base Material: Thermoplastic Polyester
  • Contacts: Silver-Alloy
  • Cover Material: Thermoplastic Polyester
  • Strap Material: Nickel-Plated Brass
  • Terminal Screws: Zinc-Plated Steel 5/16-24, Triple Combination
  • Toggle: Thermoplastic Polyester

Mechanical Specifications

  • Product ID: Ratings are permanently marked on device
  • Terminal Accom.: #10 - #4 AWG
  • Terminal ID: T1, T2, T3, L1, L2 & L3 marked on back of device
  • Termination: Front
  • Torque Range: 25 inch pounds maximum

Product Features

  • Color: Black
  • Device Type: Toggle Switch

Standards and Certifications

  • ANSI: C-73
  • NEMA: WD-1 & WD-6
  • NOM: NOM-ANCE
  • UL 60947-4-1: supersedes UL 508
  • Warranty: 10-Year Limited
  • cUL per CSA C22.2 No. 111: File #E63969
