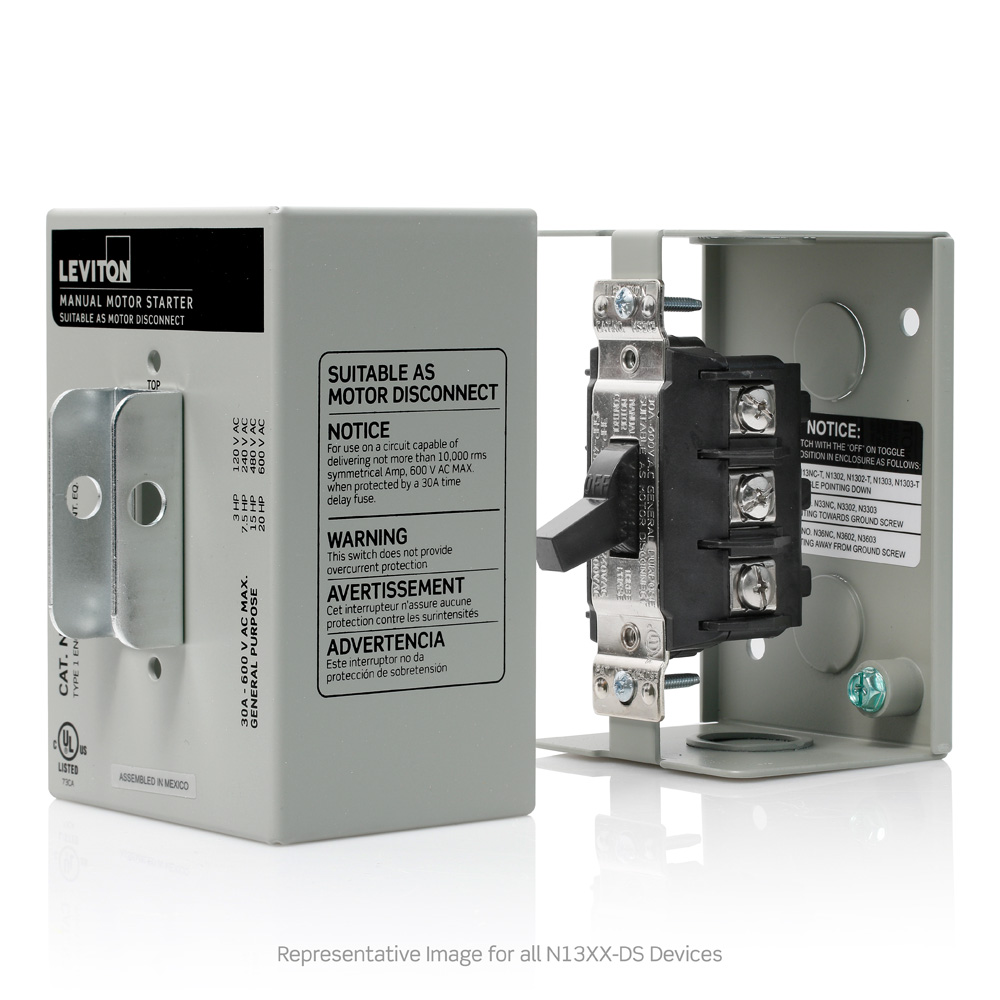

Double-Pole AC Manual Motor Controller

• Powerswitch® Industrial Grade AC Manual Motor Controllers provide safe, reliable control of a variety of motor loads. Typical applications include manual ON/OFF switching control of conveyor systems, pumping machines, HVAC systems, air compressors and other heavy manufacturing equipment. These motor controllers are available for both single-phase and three-phase applications.

NEMA

• WD-1
• WD-6

• Country of Origin: Mexico

Electrical Specifications

• Amperage: 30 A
• Dielectric Voltage: Withstands 2200V for 1 min.
• Endurance: 6,000 cycles inductive motor type load
• Grounding: Grounded To Enclosure
• Pole: 2
• Temperature Rise: 50ºC Max at full rated current
• Voltage: 600 VAC

Environmental Specifications

• Enclosure Rating: Type 1
• Flammability: Rated V-0 per UL 94
• Operating Temperature: -40°C to 60°C

Material Specifications

• Base Material: Thermoplastic Polyester
• Contacts: Silver-Cadmium .031 Thick
• Enclosure Cover Material: Steel
• Face Material: Thermoplastic Polyester
• Strap Material: Nickel Plated Brass
• Terminal Screws: Nickel-Plated Brass 10-32
• Toggle: Thermoplastic Polyester
• Yoke: Nickel-Plated Brass

Mechanical Specifications

• Product ID: Ratings are permenantly marked on device
• Terminal Accom.: #10-#8 AWG
• Terminal ID: T1, T2, L1, & L2 marked on back of device
• Termination: Back & Side
• Torque Range: 25 inch pounds maximum

Product Features

• Color: Gray
• Device Type: Enclosed Switch

Standards and Certifications

• ANSI: C-73
• NEMA: WD-1 & WD-6
• NOM: NOM-ANCE
• UL 60947-4-1: supersedes UL 508
• Warranty: 10-Year Limited
• cUL per CSA C22.2 No. 111: File #E63969
