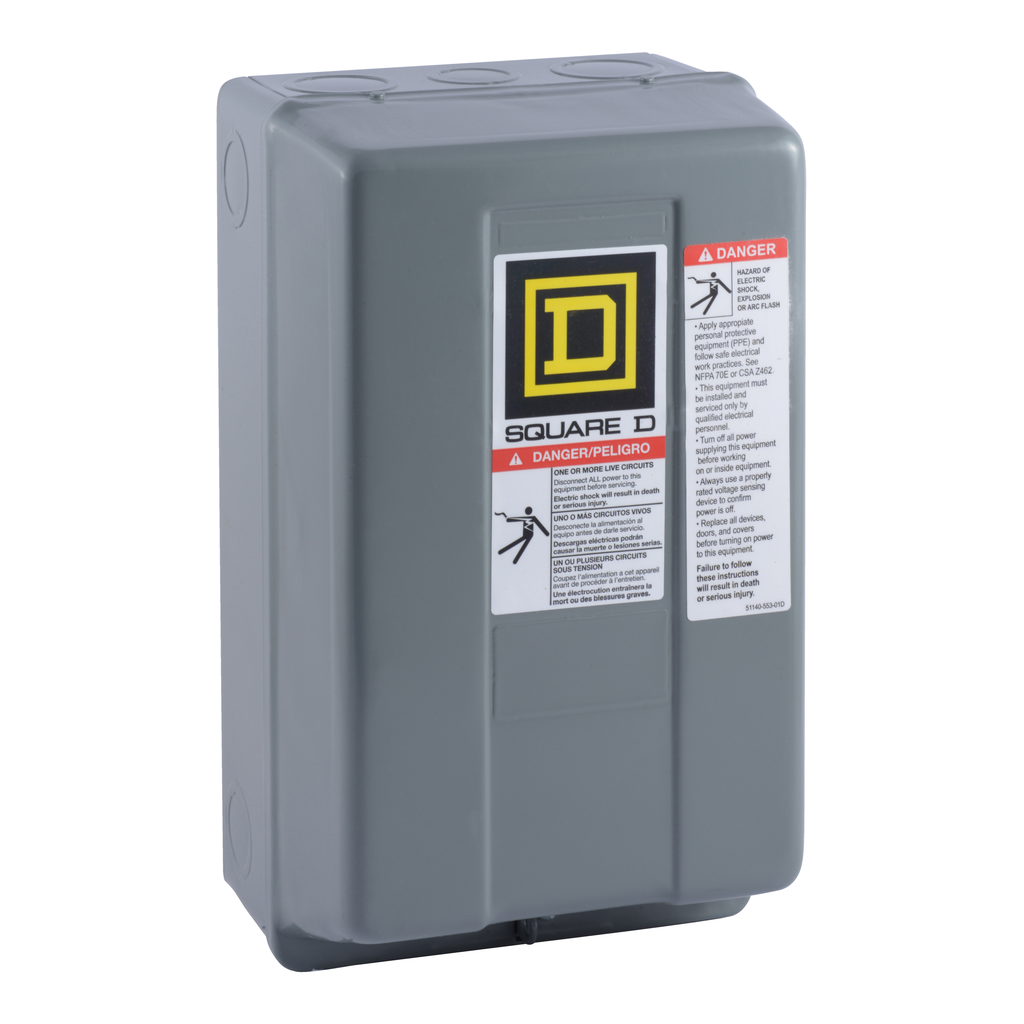

lighting contactor, mechanically held, 30 A, 2 pole, NEMA 1, 120/110V 60/50Hz
lighting contactor, mechanically held, 30 A, 2 pole, NEMA 1, 120/110V 60/50Hz
8903SMG10V02
Available to Order
Couldn't load pickup availability
Product Description
- Range Of Product: S
- Product Or Component Type: Mechanically Held Lighting Contactor
Contractual warranty
- Warranty: 18 months
Complementary
- Local Signalling: without pilot light
- Height: 254 mm
- Auxiliary Contact Composition: without
- Control Type: no control units
- [Uc] Control Circuit Voltage: 120 V AC 60 Hz || 110 V AC 50 Hz
- Poles Description: 2P
- Electrical Connection: lugs
- Line Rated Current: 30 A
- Width: 152 mm
- Depth: 134 mm
- Additional Included Device: none
Offer Sustainability
- China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive: Not compliant
- Reach Regulation: Reference contains Substances of Very High Concern above the threshold
- California Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Environment
- Product Certifications: UL Listed || CSA
- Nema Degree Of Protection: NEMA 1 painted sheet steel surface none
Spec Sheet
8502S/8702S, Certificate, UL - UL+Certificate+E78427+NRNT (pdf)
8903SM and 8903SP, 30 A and 60 A Mechanically Held AC Magnetic Lighting Contactors, Mechanical Latch Installation Instructions - 30072-013-84 (pdf)
Catalog
Square D Lighting Contactors Catalog - 8903CT9701 (pdf)Certificate
8903L/LX Lighting Contactors, Certificate, CSA - CSA_Certificate_60905_3231_01 (pdf)8502S/8702S, Certificate, UL - UL+Certificate+E78427+NRNT (pdf)
Information label
8903S Lighting Contactor Information Label - 30072-004-52+source (pdf)Instruction sheet
Class 8903 - 30 and 60 A Mechanically Held AC Magnetic Lighting Contactors, Types SM and SP, Series A Installation Instructions - 8903-363 (pdf)8903SM and 8903SP, 30 A and 60 A Mechanically Held AC Magnetic Lighting Contactors, Mechanical Latch Installation Instructions - 30072-013-84 (pdf)
