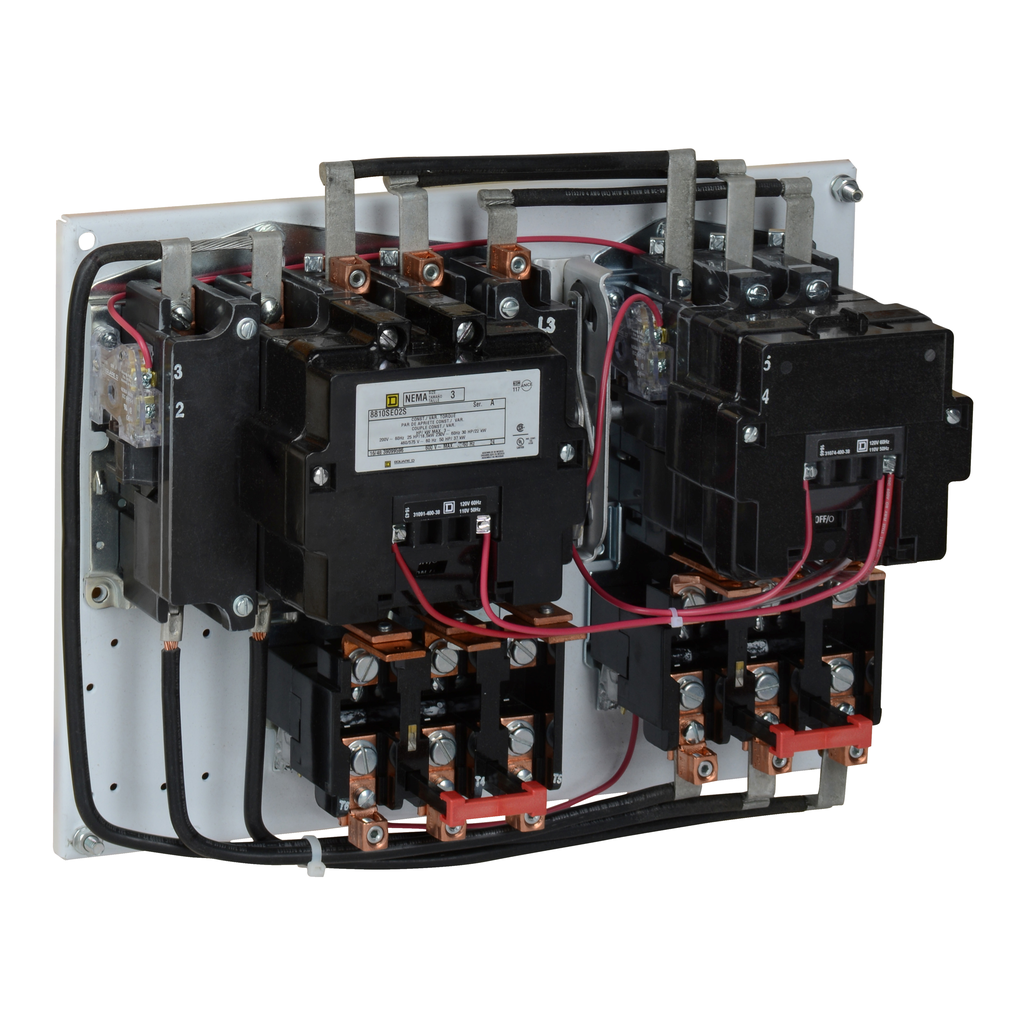

Two Speed Starter, Size 4, 3-Pole, Melting Alloy OLR, Open, 120/110V 60/50Hz

• Range Of Product: type S
• Product Or Component Type: starter

Contractual warranty

• Warranty: 18 months

Complementary

• Motor Starter Type: 2 speed
• Local Signalling: without pilot light
• Thermal Overload Type: melting alloy
• Auxiliary Contact Composition: without
• Control Type: Without
• Nema Size: 4
• Number Of Thermal Units Required: 6
• Asynchronous Motor Control Profile: constant/variable torque
• Maximum Horse Power Rating: 40-40 hp 200 V AC, 3 phase || 50-50 hp 230 V AC, 3 phase || 100-100 hp 460/575 V AC, 3 phase
• [Uc] Control Circuit Voltage: 120 V AC 60 Hz || 110 V AC 50 Hz
• Nema Degree Of Protection: not rated (open device)
• Poles Description: 3P
• Electrical Connection: lugs
• Line Rated Current: 135 A
• Control Circuit: separate control circuit
• [Ue] Rated Operational Voltage: 600 V AC

Offer Sustainability

• China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
• Eu Rohs Directive: Not compliant
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Environment

• Product Certifications: UL listed file E78351 CCN NLDX || CSA LR60905 class 3211 04
