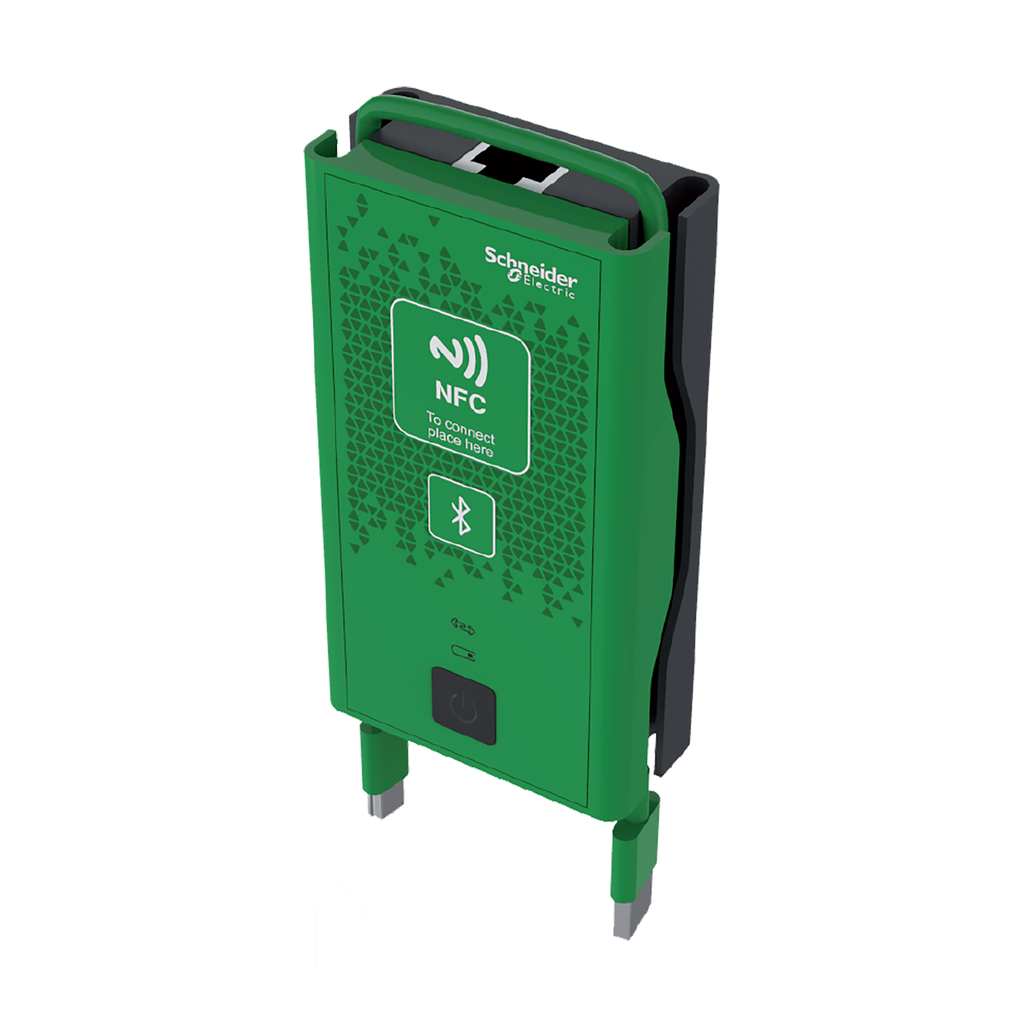

Serial to Bluetooth converter - with RS232 RS485 and USB connectors

• Accessory / Separate Part Category: communication accessory
• Operating Distance: 10 m
• Accessory / Separate Part Type: wireless access point
• Accessory / Separate Part Destination: smart phone

Contractual warranty

• Warranty: 18 months

Complementary

• Function Available: configure over bluetooth || automatic/OFF || optional communication kit for remote monitoring || serial link kit || standalone operation with power supply unit possible
• Communication Port Protocol: NFC || Bluetooth 4.2 (BLE)
• System Requirements: Google Chrome || Firefox
• Local Signalling: for power ON 1 LED (green) || for battery status 1 LED (green/red) || for activity detected 1 LED (white)
• Supply: Li battery || USB interface of the PC
• Range Compatibility: Easergy
• Operating System: Android || Mac iOS
• Connector Type: male SUB-D 9 || mini DIN || USB device port Mini-B || USB type B || SUB-D 9, mini-DIN and USB
• Net Weight: 0.134 kg
• Kit Composition: battery

Offer Sustainability

• China Rohs Regulation: X
• Circularity Profile: ENVEOLI1411007
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1411007
• Sustainable Offer Status: Green Premium product
• Eu Rohs Directive: Compliant
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• Reach Free Of Svhc: Yes
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Environment

• Product Certifications: FCC || CE
• Ambient Air Temperature For Operation: 0-40 °C
• Ambient Air Temperature For Storage: -40-70 °C
• Relative Humidity: 10-90 % operation, without condensation IEC 60068-2-3
• Ip Degree Of Protection: IP20
