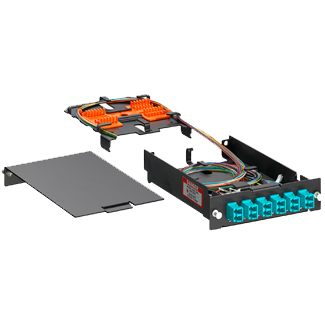

SDX Pigtail Fusion FastSplice Module pre-loaded with duplex LC adapters (Aqua) and 12-fiber OM3 LC/PC individual pigtails. Includes 40mm splice sleeves. Works with all SDX Enclosures.

• Module integrates fiber adapter bulkhead (12 or 24 fibers) and splice holders, eliminating the need of splice trays
• Offered in single-mode (OS2) UPC & APC and laser optimized multimode (OM3) fiber types
• Other fiber types available as special orders
• Individual compartments provide slack storage and bend radius guides for respective backbone cable, 900 μm tight buffer pigtails, and fusion-spliced fibers
• 12-fiber, color-coded 900 μm tight buffer pigtails are 1 meter and pre-loaded in module per specific configuration
• Modular design allows for ease of maintenance of individual spliced fiber and allows for scaling up without impacting existing fibers
• Accessory kit consists of 40 mm heat shrink style splice sleeves, tie wraps, and braided mesh sleeve

• RoHS Compliant: Yes
