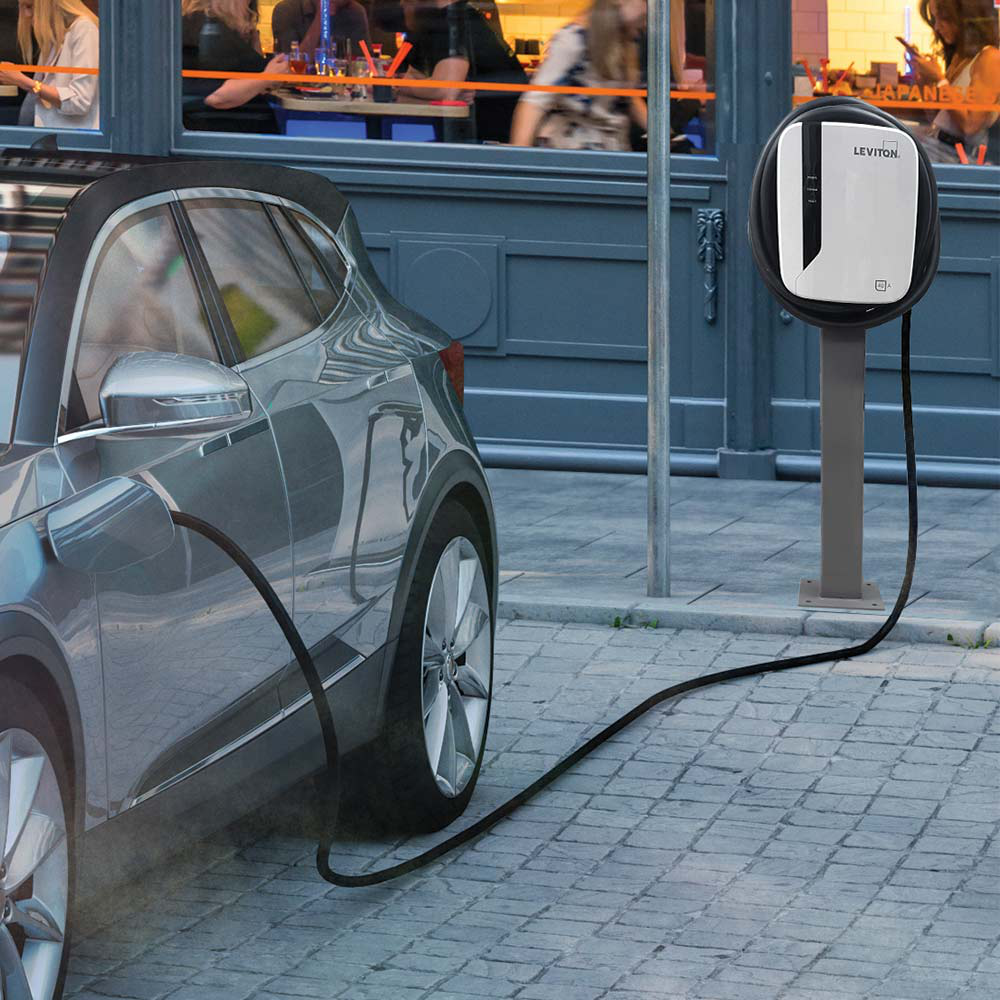

Charging Station Pedestal
Charging Station Pedestal
EVPED-2
Available to Order
Couldn't load pickup availability
Product Description
- Allows for one or two electric vehicle charging stations to be efficiently mounted on a freestanding pedestal to save installation cost, space and time
- Compliant with Americans with Disabilities Act (ADA) recommended charge connect height of less than 48” and greater than 24”
- Common applications: office buildings, MDU settings, city & township municipalities, educational institutions
- For use only with Evr-Green EVR30-B1C , EVR40-B2C , and EVR30-R2C Electric Vehicle Charging Stations Click here to learn more about our full line of Evr-Green Electric Vehicle Chargers.
- Country of Origin: United States
- RoHS Compliant: Yes
DI-000-EVPED-00B.pdf
EVSE_EVPED-2_Mounting_Instructions_Q-1456.pdf
CATSTD-EVPED-002-M01.STEP
Evr-Green_Linecard_Q-648U.pdf
Evr-Green_Linecard_Q-648T_vFR.pdf
Alternative_Fuel_Vehicle_Refueling_Property_Credit_-_F8911.pdf
DG-000-EVPED-30A-W.pdf
Instruction Sheet
DI-000-EVPED-50A.pdfEVSE_EVPED-2_Mounting_Instructions_Q-1456.pdf
Dimensional Drawing
CATSTD-EVPED-002-D01.PDFCATSTD-EVPED-002-M01.STEP
Solution Sheets
EVSE_Charge_Time_Comparison_Q-1159E.pdfEvr-Green_Linecard_Q-648U.pdf
Evr-Green_Linecard_Q-648T_vFR.pdf
Other Documents
CATSTD-EVPED-002-D01.DWGAlternative_Fuel_Vehicle_Refueling_Property_Credit_-_F8911.pdf
DG-000-EVPED-30A-W.pdf
