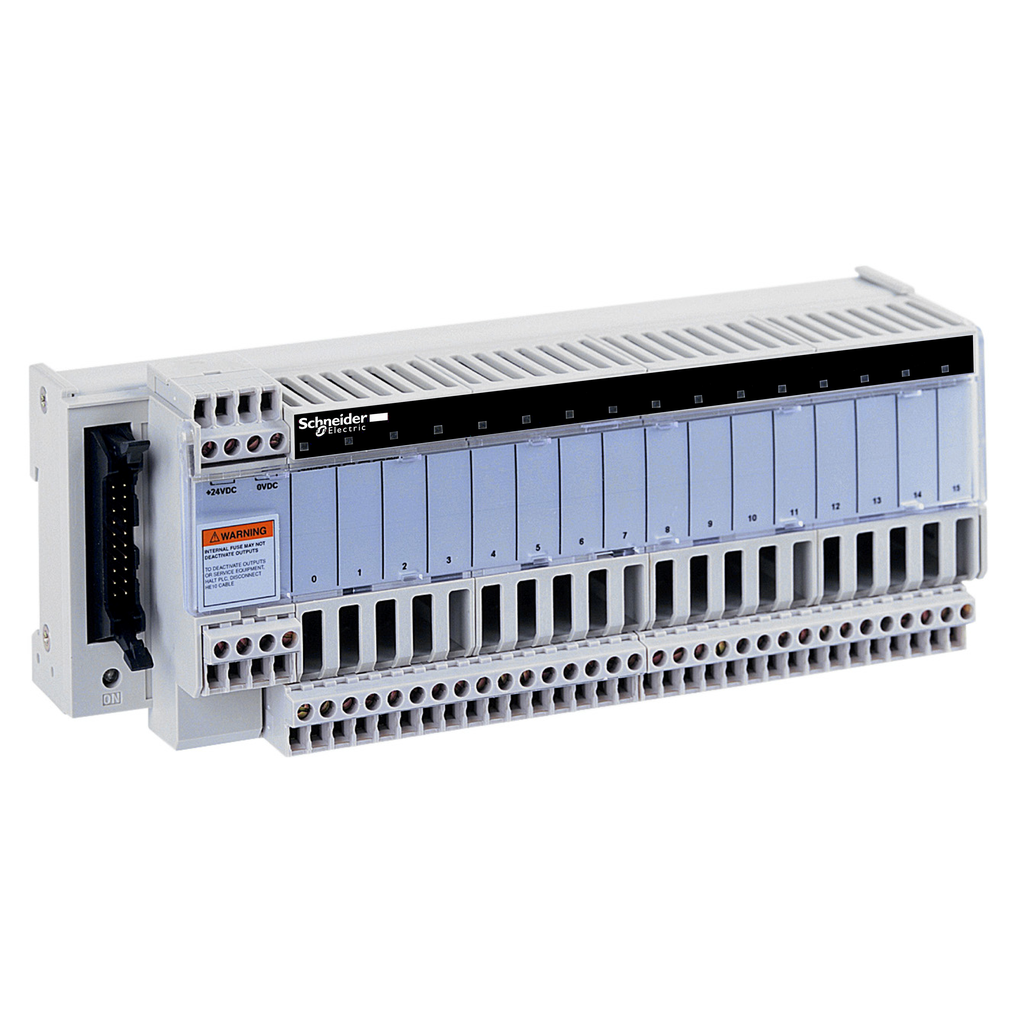

sub-base for plug-in relay ABE7 - 16 channels - relay 12.5 mm

• Range Of Product: Modicon ABE7
• Product Or Component Type: sub-base for plug-in relay
• Connections - Terminals: screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end || screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end || screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid
• Number Of Channels: 16
• Sub-Base Type: output sub-base
• [Us] Rated Supply Voltage: 19...30 V IEC 61131-2

Contractual warranty

• Warranty: 18 months

Complementary

• Short-Circuit Protection: 1 A internal fuse, 5 x 20 mm, fast blow PLC end)
• [Uimp] Rated Impulse Withstand Voltage: 2.5 kV
• Status Led: 1 LED per channel (Green) channel status || 1 LED (Green) power ON
• Installation Category: II IEC 60664-1
• Maximum Current Per Output Common: 16 A
• Net Weight: 0.9 kg
• Fixing Mode: by clips 35 mm symmetrical DIN rail) || by screws solid plate with fixing kit)
• Polarity Distribution: volt-free
• Tightening Torque: 0.6 N.m flat Ø 3.5 mm
• Maximum Supply Current: 1 A
• Supply Circuit Type: DC
• Voltage Drop On Power Supply Fuse: 0.3 V
• Product Compatibility: ABE7ACC21 || ABR7S33 || ABS7SC3.. || ABS7A3.
• [Ui] Rated Insulation Voltage: 300 V coil circuit/contact circuits IEC 60947-1 || 2000 V terminals/mounting rails

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP121229EN
• Sustainable Offer Status: Green Premium product
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc: Yes
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: X
• Circularity Profile: ENVEOLI1212029EN
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Product Certifications: DNV || CSA || GL || UL || EAC
• Resistance To Radiated Fields: 10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
• Ambient Air Temperature For Operation: -5-60 °C IEC 61131-2
• Shock Resistance: 15 gn 11 ms IEC 60068-2-27
• Vibration Resistance: 2 gn 10-150 Hz)IEC 60068-2-6
• Ip Degree Of Protection: IP2X conforming to IEC 60529
• Pollution Degree: 2 IEC 60664-1
• Resistance To Incandescent Wire: 750 °C 30 s IEC 60695-2-11
• Ambient Air Temperature For Storage: -40-80 °C IEC 61131-2
• Resistance To Electrostatic Discharge: 4 kV contact) level 3 IEC 61000-4-2 || 8 kV air) level 3 IEC 61000-4-2
• Resistance To Fast Transients: 2 kV level 3 IEC 61000-4-4
