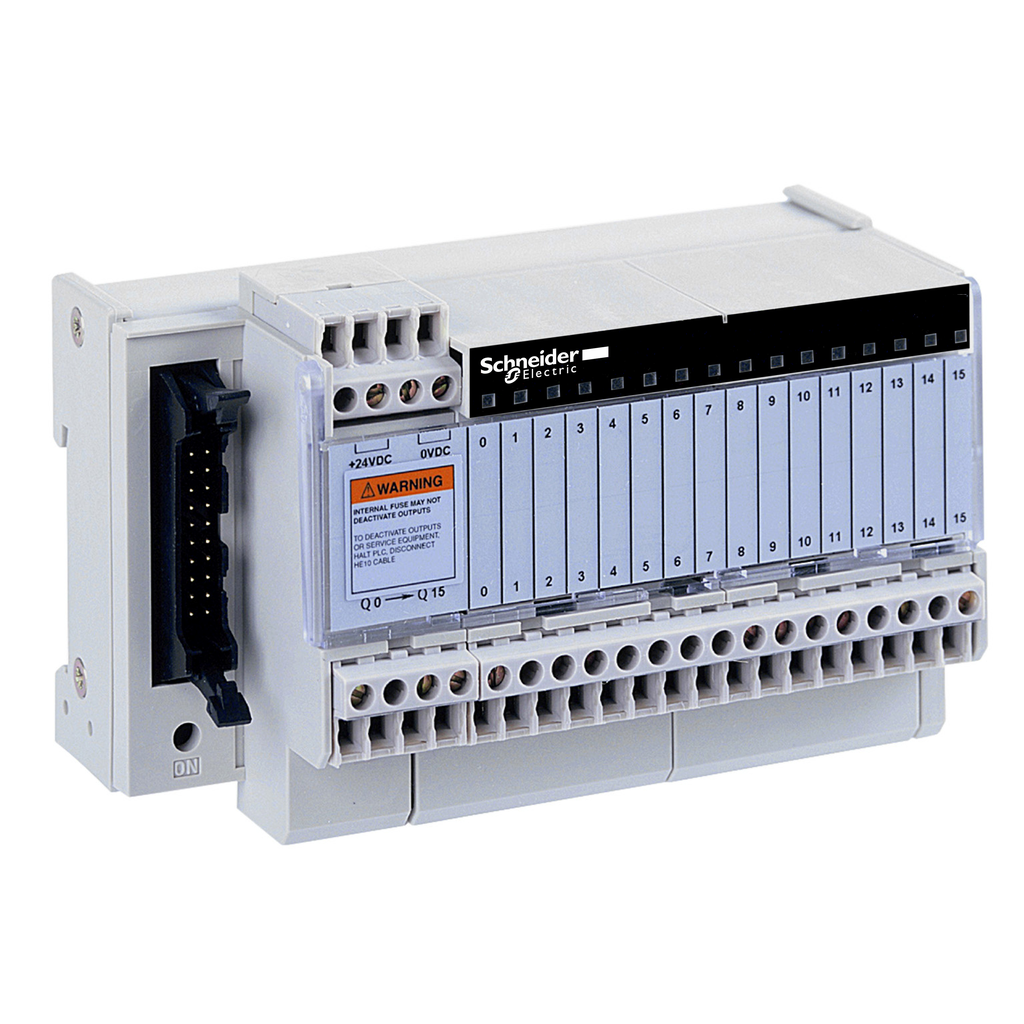

sub-base - soldered electromechanical relays ABE7 - 16 channels - relay 5 mm

• Range Of Product: Modicon ABE7
• Product Or Component Type: electromechanical output relay sub-base
• Number Of Terminal Per Channel: 1
• Number Of Channels: 16
• [Us] Rated Supply Voltage: 24 V DC PLC end

Contractual warranty

• Warranty: 18 months

Complementary

• Contacts Type And Composition: 1 NO preactuator end
• Minimum Switching Current: 1 mA >= 5 V
• Height: 77 mm
• Switching Frequency: <= 10 Hz || <= 0.5 Hz
• Terminal Block Type: removable
• Installation Category: II IEC 60664-1
• Maximum Current Per Output Common: 12 A
• Current Per Channel: 2 A preactuator end
• [Ui] Rated Insulation Voltage: 2000 V
• Net Weight: 0.405 kg
• Electrical Durability: 500000 cycles 200 mA 24 V DC-13 10 ms preactuator end) || 500000 cycles 400 mA 230 V AC-15 preactuator end) || 500000 cycles 600 mA 230 V AC-12 preactuator end) || 500000 cycles 600 mA 24 V DC-12 preactuator end)
• Fixing Mode: by clips 35 mm symmetrical DIN rail) || by screws solid plate with fixing kit)
• [Uimp] Rated Impulse Withstand Voltage: 2.5 kV IEC 60947-1
• Maximum Switching Voltage: 250 V AC 50/60 Hz IEC 60947-5-1 || 30 V DC IEC 60947-5-1
• Contact Bounce Time: <= 5 ms 1 NO
• Polarity Distribution: polarity distribution contact common per group of 8 channels
• Tightening Torque: 0.6 N.m flat Ø 3.5 mm
• Number Of Channel Per Common: 8
• Mechanical Durability: 20000000 cycles
• Operating Time: <= 10 ms coil energisation and NO closing || <= 6 ms coil de-energisation and NO opening
• Maximum Power Dissipation Per Channel In W: 0.22 W PLC end)
• Drop-Out Voltage: 2.4 V 20 °C PLC end)
• Width: 125 mm
• Operating Rate In Hz: 10 Hz no load || 0.5 Hz at Ie
• Depth: 58 mm
• Electrical Reliability: 1e-008
• Threshold Tripping Voltage: 19.2 V 40 °C
• Drop-Out Current: 0.5 mA 20 °C

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP121229EN
• Sustainable Offer Status: Green Premium product
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc: Yes
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: X
• Circularity Profile: ENVEOLI1212029EN
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Product Certifications: DNV || UL || CSA || GL || EAC
• Resistance To Radiated Fields: 10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
• Ambient Air Temperature For Operation: -5-60 °C IEC 61131-2
• Shock Resistance: 15 gn 11 ms IEC 60068-2-27
• Dielectric Strength: 2000 V IEC 60947-1
• Max Immunity To Microbreaks: 5 ms
• Ip Degree Of Protection: IP2X conforming to IEC 60529
• Pollution Degree: 2 IEC 60664-1
• Resistance To Incandescent Wire: 750 °C 30 s IEC 60695-2-11
• Ambient Air Temperature For Storage: -40-80 °C IEC 61131-2
• Protective Treatment: TC
• Resistance To Fast Transients: 2 kV level 3 IEC 61000-4-4
