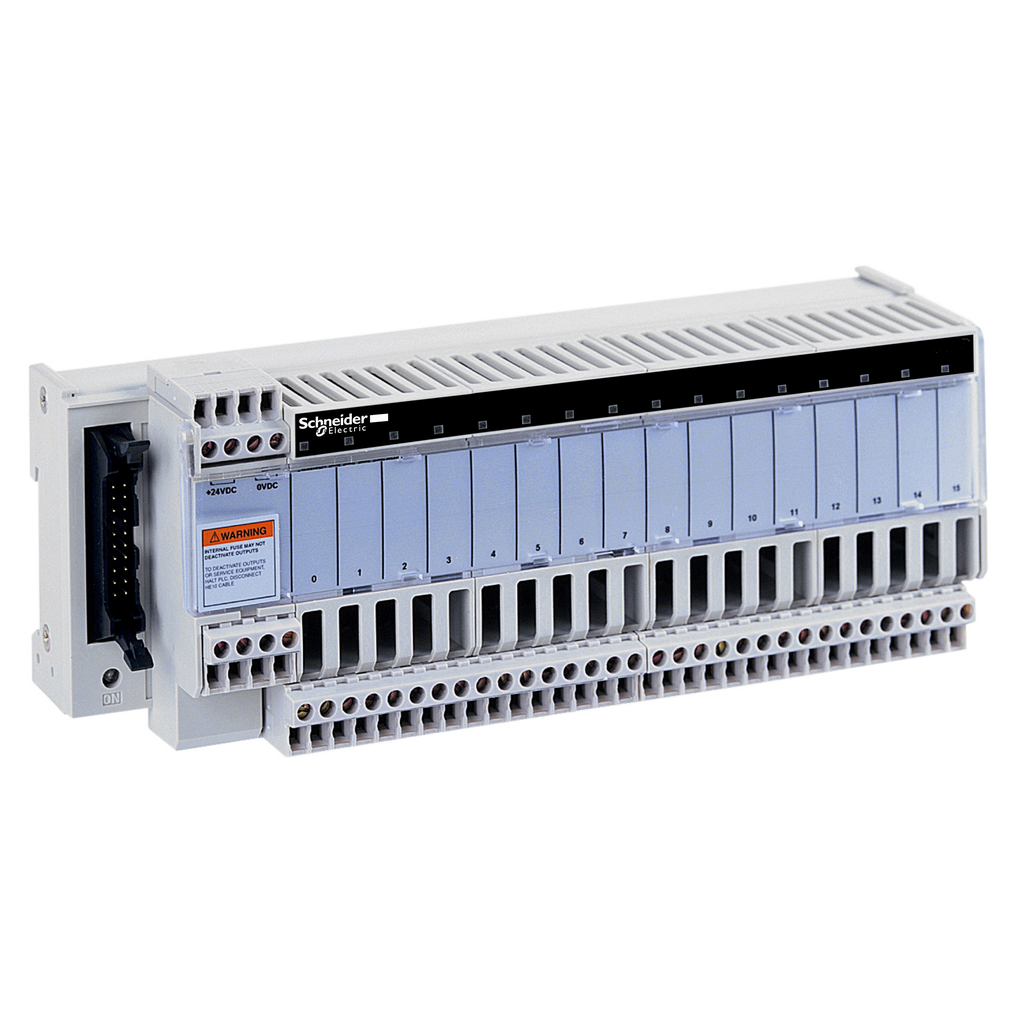

sub-base - soldered solid state output relay ABE7 - 16 inputs - 115 V AC

• Range Of Product: Modicon ABE7
• Product Or Component Type: solid state input relay sub-base
• Number Of Terminal Per Channel: 2
• Connections - Terminals: screw type terminals, 1 x 0.09...1 x 1.5 mm², 0.09-1.5 mm² AWG 28...AWG 16) flexible with cable end || screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² AWG 26...AWG 12) solid || screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² AWG 26...AWG 14) flexible without cable end || screw type terminals, 2 x 0.09...2 x 0.75 mm², 0.09-0.75 mm² AWG 28...AWG 20) flexible with cable end || screw type terminals, 2 x 0.2...2 x 2.5 mm², 0.2-2.5 mm² AWG 24...AWG 14) solid
• Number Of Channels: 16
• [Us] Rated Supply Voltage: 110/130 V AC 50/60 Hz sensor end) || 24 V DC PLC end)

Contractual warranty

• Warranty: 18 months

Complementary

• Minimum Switching Current: 1 mA PLC end
• Height: 77 mm
• Isolation Plc/Operative Part: yes
• Terminal Block Type: removable
• Maximum Switching Current: 15 mA PLC end)
• Current Per Channel: 0.0083 A
• Installation Category: II IEC 60664-1
• Protection Type: internal fuse 1 A 5 x 20 mm fast blow PLC end || adjustable by external fuse fast blow sensor end
• Response Time: <= 20 ms from state 0 to 1 || <= 20 ms from state 1 to 0
• [Ui] Rated Insulation Voltage: 2000 V
• Current State 1 Guaranteed: >= 5 mA sensor end)
• Net Weight: 0.397 kg
• Fixing Mode: by clips 35 mm symmetrical DIN rail) || by screws solid plate with fixing kit)
• [Uimp] Rated Impulse Withstand Voltage: 2.5 kV IEC 60947-1
• Switching Frequency: <= 25 Hz 50 %
• Voltage State 1 Guaranteed: >= 79 V sensor end
• Tightening Torque: 0.6 N.m flat Ø 3.5 mm
• Supply Voltage Limits: 19-30 V DC PLC end)IEC 61131-2
• Width: 206 mm
• Depth: 58 mm

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP121229EN
• Sustainable Offer Status: Green Premium product
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc: Yes
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: X
• Circularity Profile: ENVEOLI1212029EN
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Product Certifications: UL || GL || DNV || CSA || EAC
• Standards: IEC 61131-2 Type 1
• Resistance To Radiated Fields: 10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
• Ambient Air Temperature For Operation: -5-60 °C IEC 61131-2
• Shock Resistance: 15 gn 11 ms IEC 60068-2-27
• Dielectric Strength: 2000 V 50/60 Hz IEC 60947-1
• Vibration Resistance: 2 gn 10-150 Hz)IEC 60068-2-6
• Ip Degree Of Protection: IP2X conforming to IEC 60529
• Pollution Degree: 2 IEC 60664-1
• Resistance To Incandescent Wire: 750 °C IEC 60695-2-11
• Ambient Air Temperature For Storage: -40-80 °C IEC 61131-2
• Resistance To Electrostatic Discharge: 4 kV contact) level 3 IEC 61000-4-2 || 8 kV air) level 3 IEC 61000-4-2
• Resistance To Fast Transients: 2 kV level 3 IEC 61000-4-4
