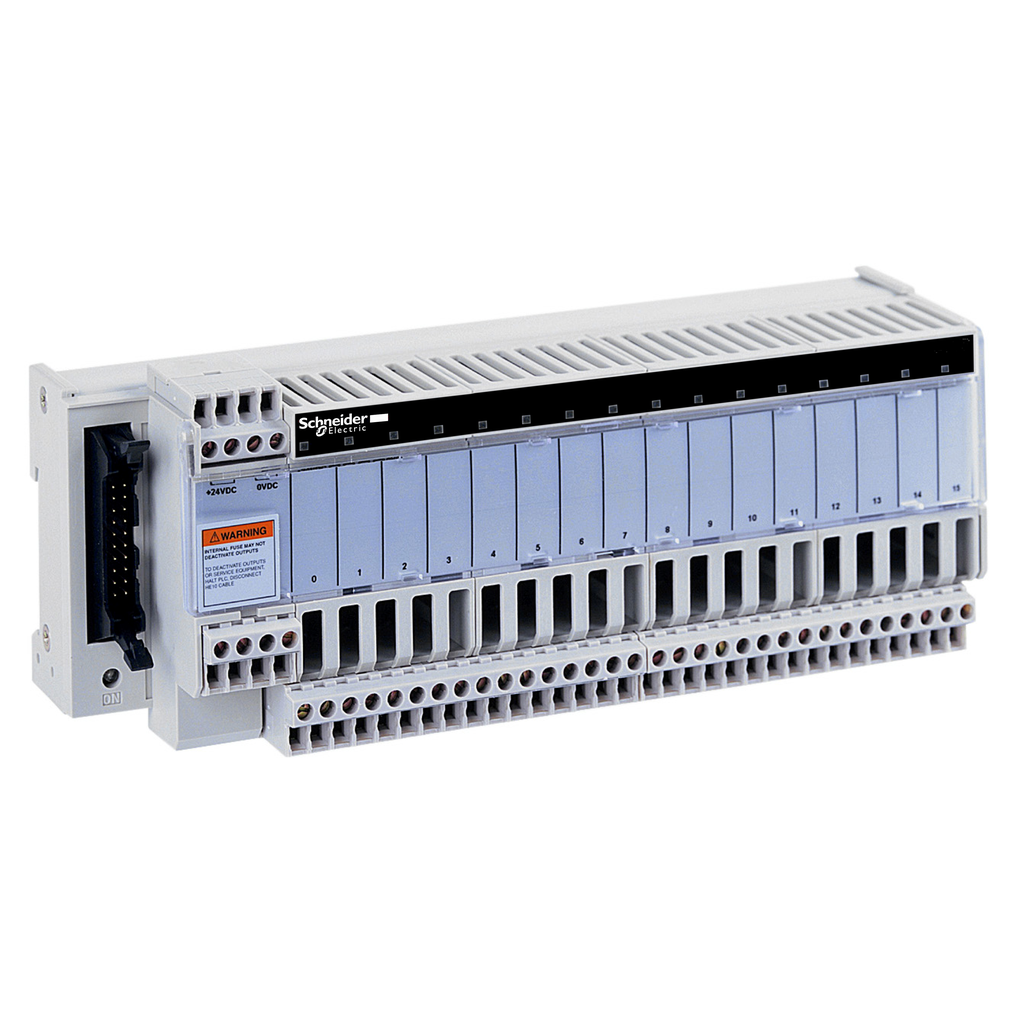

Product Description
- Range Of Product: Modicon ABE7
- Product Or Component Type: solid state output relay sub-base
- Number Of Terminal Per Channel: 2
- Relay Type: soldered solid state relay
- Number Of Channels: 16
- [Us] Rated Supply Voltage: 24 V DC PLC end || 24 V DC preactuator end
Contractual warranty
- Warranty: 18 months
Complementary
- Minimum Switching Current: 1 mA
- Isolation Plc/Operative Part: no
- Switching Frequency: < 0.6/LI² Hz
- Terminal Block Type: removable
- Maximum Circuit Breaker Threshold: 0.75 A
- Installation Category: II IEC 60664-1
- Maximum Switching Current: 500 mA DC-12 || 500 mA DC-13
- Fault Type: overload || short-circuit
- Maximum Current Per Output Common: 8 A
- Current Per Channel: 0.5 A preactuator end
- Response Time: <= 0.02 ms from state 1 to 0 || <= 0.1 ms from state 0 to 1
- Current State 1 Guaranteed: 3.1 mA PLC end)
- Net Weight: 0.405 kg
- Fixing Mode: by clips 35 mm symmetrical DIN rail) || by screws solid plate with fixing kit)
- Voltage State 0 Guaranteed: 3.4 V PLC end
- Maximum Residual Current: 0.3 mA preactuator end
- Voltage State 1 Guaranteed: 16.9 V PLC end
- Current State 0 Guaranteed: 0.4 mA PLC end)
- Switchable Inductive Energy L/R: <= 400(U.I) ms
- Tightening Torque: 0.6 N.m flat Ø 3.5 mm
- Fault Indication: yes
- Drop-Out Voltage: 0.6 V preactuator end)
- Width: 206 mm
- Maximum Tungsten Load: <10 W DC-6
Offer Sustainability
- Rohs Exemption Information: Yes
- Mercury Free: Yes
- Environmental Disclosure: ENVPEP121229EN
- Sustainable Offer Status: Green Premium product
- Reach Regulation: Reference contains Substances of Very High Concern above the threshold
- California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc: Yes
- Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation: X
- Circularity Profile: ENVEOLI1212029EN
- Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
Environment
- Product Certifications: UL || GL || CSA || DNV || EAC
- Resistance To Radiated Fields: 10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
- Ambient Air Temperature For Operation: -5-60 °C IEC 61131-2
- Shock Resistance: 15 gn 11 ms IEC 60068-2-27
- Ip Degree Of Protection: IP2X conforming to IEC 60529
- Pollution Degree: 2 IEC 60664-1
- Resistance To Incandescent Wire: 750 °C 30 s IEC 60695-2-11
- Ambient Air Temperature For Storage: -40-80 °C IEC 61131-2
- Protective Treatment: TC
- Resistance To Fast Transients: 2 kV level 3 IEC 61000-4-4
