Product Description
- Product Destination: ABE9C1280M || ABE9C1240M || ABE9C1281M || ABE9C1241M
- Range Of Product: Advantys ABE9

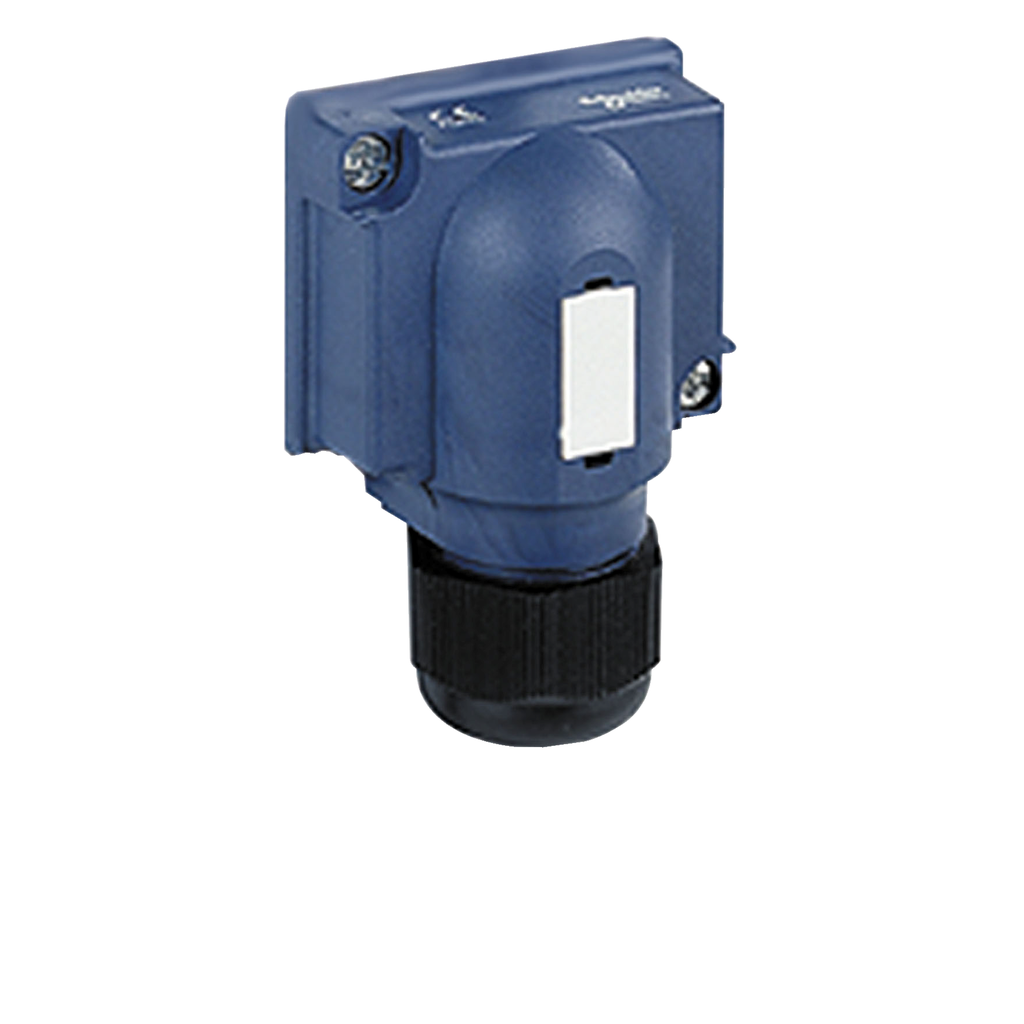

- Accessory / Separate Part Designation: terminal block connector
- Accessory / Separate Part Category: connection accessories
Contractual warranty
- Warranty: 18 months
Complementary
- Net Weight: 0.04 kg
Offer Sustainability
- China Rohs Regulation: X
- Rohs Exemption Information: Yes
- Mercury Free: Yes
- Toxic Heavy Metal Free: Yes
- Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Regulation: Free of Substances of Very High Concern above the threshold
- California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc: Yes
