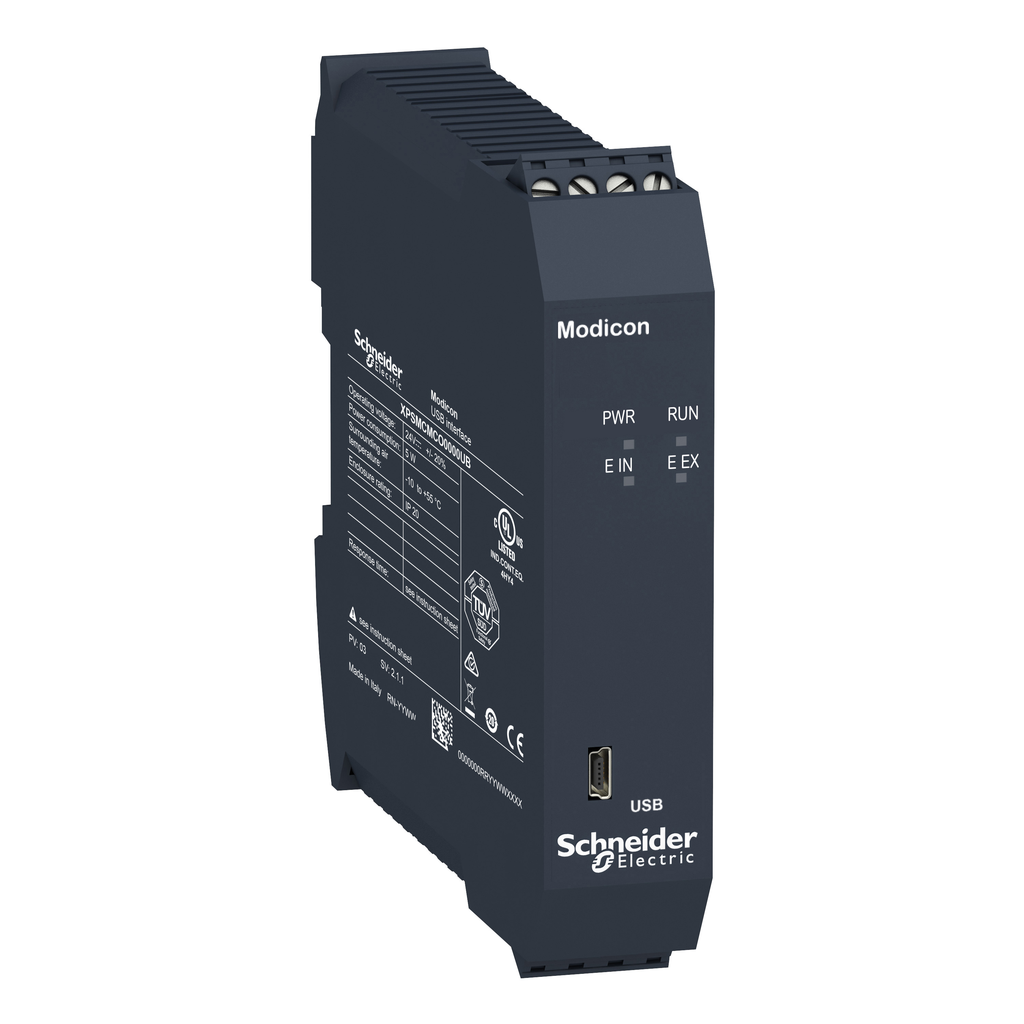

USB diagnostics expansion module, Modicon MCM, screw term

• Range Of Product: Modicon MCM
• Product Or Component Type: non-safe communication module
• [Us] Rated Supply Voltage: 24 V - 20...20 % DC
• Device Short Name: XPSMCM

Complementary

• Maximum Cable Distance Between Devices: 5 m
• Connections - Terminals: 2 captive screw clamp terminals, removable terminal block
• Height: 99 mm
• Cable Cross Section: 0.2-1.5 mm² - AWG 24...AWG 16 flexible without cable end || 0.2-2.5 mm² - AWG 24...AWG 14 flexible without cable end || 0.25-1 mm² - AWG 23...AWG 18 flexible with cable end, without bezel || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, with bezel || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, without bezel || 0.5-1.5 mm² - AWG 20...AWG 16 flexible with cable end, with double bezel || 0.2-1 mm² - AWG 24...AWG 18 solid without cable end || 0.2-2.5 mm² - AWG 24...AWG 14 solid without cable end
• Local Signalling: LED green CONNECT operating
• Net Weight: 0.3 kg
• Current Consumption: 0.125 mA
• Connector Type: mini B USB
• Communication Port Protocol: USB
• Number Of Port: 1
• Transmission Rate: 12 Mbit/s
• Power Dissipation In W: 3 W
• Quality Labels: CE
• Mounting Support: omega 35 mm DIN rail EN 50022
• Method Of Access: server
• Range Compatibility: Preventa XPSMCM
• Width: 22.5 mm
• Depth: 114.5 mm

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1409010EN
• Sustainable Offer Status: Green Premium product
• Pvc Free: Yes
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc: Yes
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: X
• Circularity Profile: ENVEOLI1409010EN
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Product Certifications: cULus || RCM || TÜV
• Ambient Air Temperature For Operation: -10-55 °C
• Pollution Degree: 2
• Electromagnetic Compatibility: electrostatic discharge immunity test 6 kV on contact) EN/IEC 61000-4-2 || electrostatic discharge immunity test 20 kV on air) EN/IEC 61000-4-2 || susceptibility to electromagnetic fields 10 V/m 80...1000 MHz) EN/IEC 61000-4-3 || susceptibility to electromagnetic fields 30 V/m 1.4 GHz...2 GHz) EN/IEC 61000-4-3
• Shock Resistance: 10 gn 16 ms) 1000 shocks on each axis EN/IEC 61496-1
• Vibration Resistance: +/-0.35 mm 10-55 Hz)EN/IEC 61496-1
• Relative Humidity: 10-95 %
• Ambient Air Temperature For Storage: -20-85 °C
• Service Life: 20 year(s)
• Overvoltage Category: II
• Insulation: 250 V AC between power supply and housing EN/IEC 61800-5-1
• Ip Degree Of Protection: IP20
• Operating Altitude: 6561.68 ft (2000 m)
