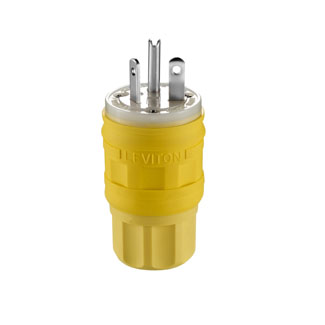

Wetguard Watertight Straight Blade Plug

• BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents
• WATERTIGHT- When mated or caps are on, feature IP69K ratings for high-temperature, high-pressure washdowns
• UNIQUE DESIGN- Exclusive “tongue and groove” design provides superior ingress protection from water, dirt and debris
• HIGH PERFORMANCE- Heavy-duty, one-piece contacts for maximum conductivity electrical performance
• THE BRAND YOU TRUST- Backed by a lifetime warranty
• Corrosion resistant, watertight, and dust tight connector – NEMA Type 3, 3S, 4, 4X, 6, & 6P
• Meets IP66 and IP67 standards when mated with a Wetguard connector or inserted in to a corrosion resistant receptacle with a Wetguard flip lid. Plug caps are available to protect the plug when not used
• Corrosion resistant, nickel-plated brass blades and terminal screws plus non-magnetic stainless steel face module screws
• Amperage, voltage, and NEMA configuration are molded into the face module making identification and replacement faster and easier
• Interlocking tongue and groove construction between face module and housing prevents moisture and debris from passing around the face module during use
• Santoprene EPTR housing, grommet, and closure cap resist water, most acids, alkalies, grease, oil, and solvents. EPTR offers enhanced UV stability and resists fungal growth
• Innovative strain relief and cord sealing system features a deep fluted compression nut, strain relief washer, and EPTR grommet for most reliable seal
• Available in high visibility yellow

• Country of Origin: Mexico
• RoHS Compliant: Yes

Product Features

• Amperage: 20 A
• Assembly Screws: Stainless Steel 300
• Blades/Contacts: Nickel-Plated Brass
• Body Material: EPTR Rubber
• Brand: Wetguard
• Color: Yellow
• Cord Range: .375 - .655
• Device Type: Straight Blade Plug
• Grounding: Grounding
• NEMA: 24-20R
• Pole: 2
• Standards and Certifications: UL/CSA
• Voltage: 347 VAC
• Warranty: Limited Lifetime Warranty
• Wire: 3
• Wire Gauge: 18-10 AWG

Environmental Specifications

• Environment: Wet
• IP Rating: IP66, IP67, IP69K
