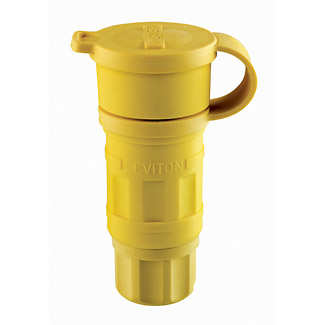

Wetguard Watertight Straight Blade Connector

• BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents.
• ADVANCED LID DESIGN- Our spring-loaded flip lid is impact and chemical resistant with a Valox® PBT cover
• MORE SECURE- Dual-hasp provides additional lockout/tagout option for added security.
• DURABLE- Ideal for harsh environments with added resistance against heat, chemical corrosion, and physical abrasion

Color Variations

• Black
• Yellow

• Country of Origin: Mexico
• RoHS Compliant: Yes

Electrical Specifications

• Amperage: 20 A
• Current Limiting: Full Rated Current
• Dielectric Voltage: Withstands 2000V per UL498
• Grounding: Grounding
• Pole: 2
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
• Voltage: 125 VAC
• Wire: 3

Environmental Specifications

• Environment: Wet
• Flammability: Rated V-2 per UL 94
• IP Rating: IP66, IP67, IP69K
• Operating Temperature: -40°C to 60°C

Product Features

• Assembly Screws: Stainless Steel 300
• Blades/Contacts: Nickel-Plated Brass
• Body Material: EPTR Rubber
• Brand: Wetguard
• Color: Yellow
• Device Type: Straight Blade Connector
• NEMA: 5-20R

Material Specifications

• Bushing: Santoprene TPV
• Compression Nut, Strain Relief: Nylon
• Terminal Screws: Electroless Nickel-coated Brass
• Wire Module: Nylon

Mechanical Specifications

• Cord Grip Range (in): .234-.687
• Cord Range: .375 - .655
• Terminal Accom.: 18-10 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Torque Range: 12-14 in-lbs

Standards and Certifications

• ANSI: C-73
• CSA C22.2 No. 42: File LR-406
• NOM: 057
• UL: 498
• Warranty: Limited Lifetime Warranty
