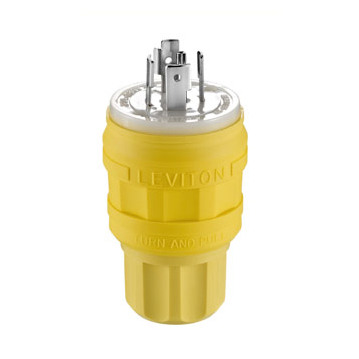

Wetguard Watertight Locking Plug

• BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents
• WATERTIGHT- When mated or caps are on, feature IP69K ratings for high-temperature, high-pressure washdowns
• UNIQUE DESIGN- Exclusive “tongue and groove” design provides superior ingress protection from water, dirt and debris
• HIGH PERFORMANCE- Heavy-duty, one-piece contacts for maximum conductivity electrical performance
• THE BRAND YOU TRUST- Backed by a lifetime warranty

• Country of Origin: Mexico
• RoHS Compliant: Yes

Product Features

• Amperage: 20 A
• Assembly Screws: Stainless Steel 300
• Blades/Contacts: Nickel-Plated Brass
• Body Material: EPTR Rubber
• Brand: Wetguard
• Color: Yellow
• Cord Range: .375 - .875
• Device Type: Locking Plug
• Grounding: Grounding
• NEMA: L23-20P
• Pole: 4
• Standards and Certifications: UL/CSA
• Voltage: 347/600 VAC
• Warranty: Limited Lifetime Warranty Warranty
• Wire: 5
• Wire Gauge: 18-10 AWG

Environmental Specifications

• Environment: Wet
• IP Rating: IP66, IP67, IP69K

Electrical Specifications

• Phase: 3-Phase WYE

Brochure

Dimensional Drawing
