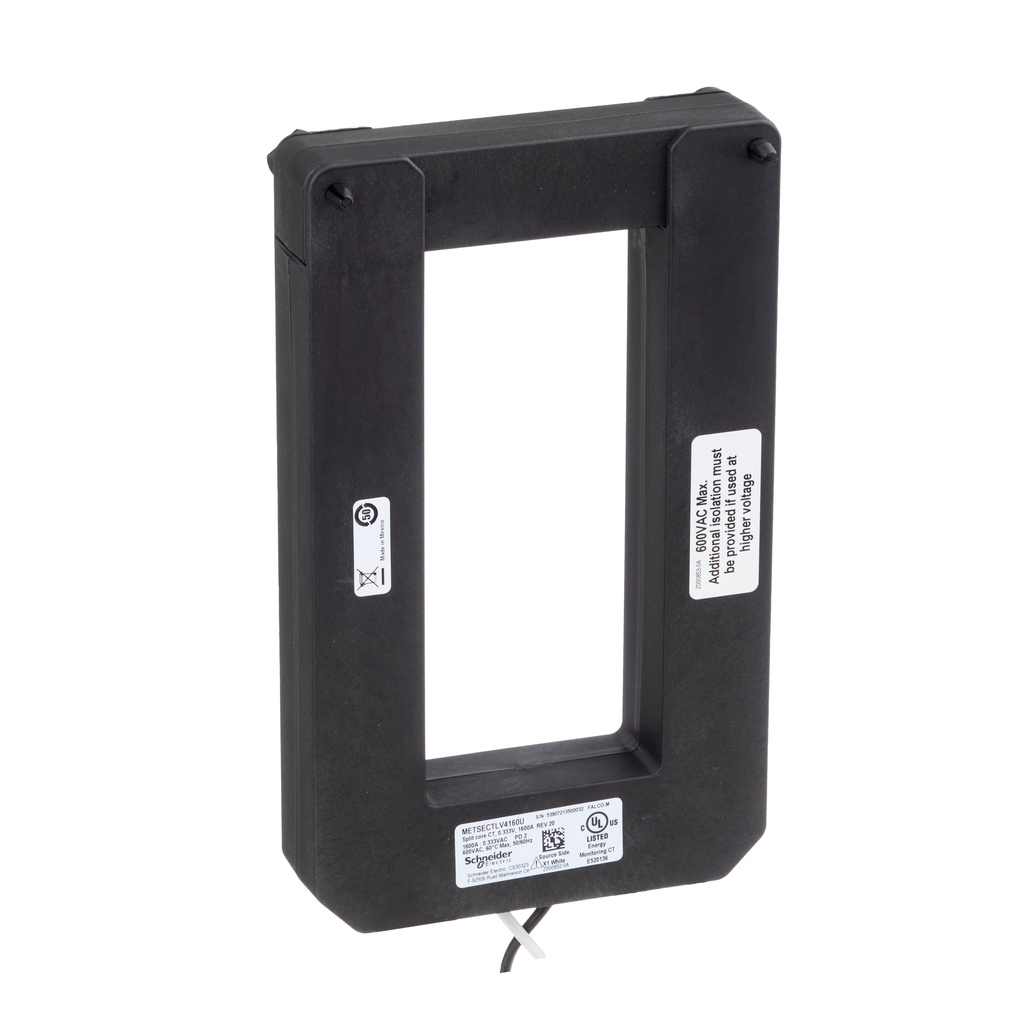

Split core current transformer, PowerLogic UL2808 CT, 1600A, 0.333V output

Split core current transformer, PowerLogic UL2808 CT, 1600A, 0.333V output

Part Number: METSECTLV4160U

UPC:

Your Price:
$189.00 ea
$189.00 ea
Sold out

Available to Order
View full details

Product Description

  • Network Frequency: 50 Hz || 60 Hz
  • Product Destination: BCPM || BCPMSC || iEM3000 || EM3500 || EM4200 || EM4900
  • Electrical Connection: flying lead 20 ft AWG 16) 600 V
  • Output Voltage: 0.333 V
  • Line Rated Current: 1600 A
  • Current Transformer Type: split core
  • Product Or Component Type: current transformer
  • Device Short Name: LVCT
  • Range: PowerLogic

Complementary

  • Measurement Accuracy: 1 %
  • Range Compatibility: PowerLogic (PowerLogic BCPM) BCPMA multi-circuit energy meter || PowerLogic (PowerLogic BCPM) BCPMB multi-circuit energy meter || PowerLogic (PowerLogic BCPM) BCPME multi-circuit energy meter || PowerLogic (PowerLogic BCPMSC) BCPMSCA multi-circuit energy meter || PowerLogic (PowerLogic BCPMSC) BCPMSCB multi-circuit energy meter || PowerLogic (PowerLogic BCPMSC) BCPMSCE multi-circuit energy meter || PowerLogic (PowerLogic EM3500) EM3502 energy meter || PowerLogic (PowerLogic EM3500) EM3550 energy meter || PowerLogic (PowerLogic EM3500) EM3555 energy meter || PowerLogic (PowerLogic EM3500) EM3560 energy meter || PowerLogic (PowerLogic EM3500) EM3561 energy meter || PowerLogic (PowerLogic EM4200) EM4235 energy meter || PowerLogic (PowerLogic EM4200) EM4236 energy meter || PowerLogic (PowerLogic EM4900) EM4904 multi-circuit energy meter || PowerLogic (PowerLogic EM4900) EM4908 multi-circuit energy meter || PowerLogic (PowerLogic EM4900) EM4914 multi-circuit energy meter || PowerLogic (PowerLogic EM4900) EM4928 multi-circuit energy meter || Acti 9 (Acti9 iEM3000) iEM3455 energy meter || Acti 9 (Acti9 iEM3000) iEM3465 energy meter

Offer Sustainability

  • China Rohs Regulation: X
  • Rohs Exemption Information: Yes
  • Mercury Free: Yes
  • Toxic Heavy Metal Free: Yes
  • Eu Rohs Directive: Compliant
  • Reach Regulation: Free of Substances of Very High Concern above the threshold
  • California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Reach Free Of Svhc: Yes
  • Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Environment

  • Ambient Air Temperature For Operation: -15-60 °C
  • Ambient Air Temperature For Storage: -40-70 °C
  • Relative Humidity: 0-95 %
  • Width: internal 2.47 in || total 4.91 in
  • Height: internal 5.73 in || total 8.12 in
  • Net Weight: 987 g
  • Depth: 1.16 in
Spec Sheet

Instruction sheet

PowerLogic™ Low Voltage Current Transducers - LVCT_Z205398-0H (pdf)

Declaration of conformity

UK Declaration of Conformity - UKDOC__METSECTxx_A2-V2 (pdf)
