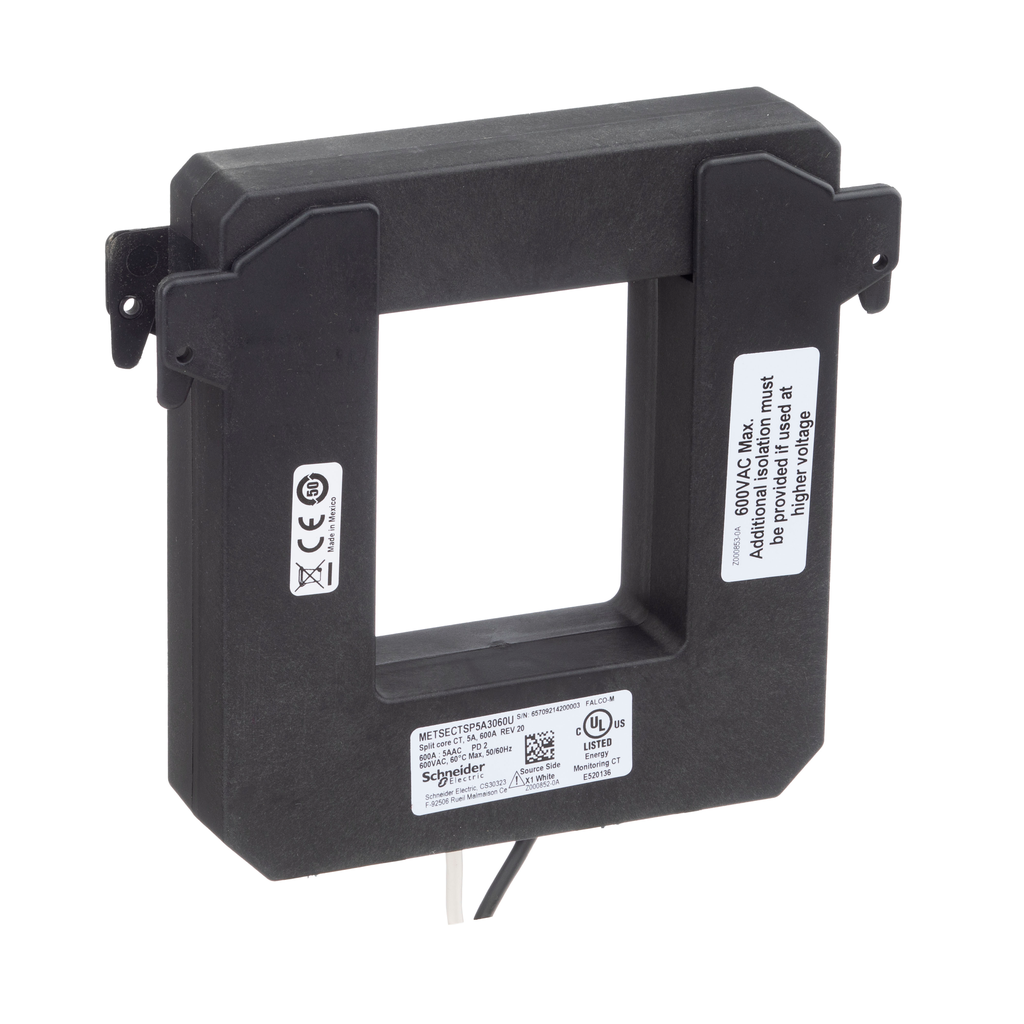

Split core current transformer, PowerLogic UL2808 CT, 800A, 5A output

• Accessory / Separate Part Category: measurement accessory
• Product Or Component Type: current transformer
• Range: PowerLogic

Complementary

• Electrical Connection: 8 ft AWG 16 flying lead
• Network Frequency: 50 Hz || 60 Hz
• Secondary Current: 5 A
• Measurement Accuracy: 1 %
• Current Transformer Ratio: 800/5
• Width: internal 2.46 in || total 5.83 in
• Height: internal 2.9 in || total 5.36 in
• Network Type: AC
• Range Compatibility: PowerLogic (PowerLogic PM5000) power meter || PowerLogic (PowerLogic PM3000) power meter || Acti 9 (Acti9 iEM3000) energy meter || EasyLogic (EasyLogic PM2100) power meter || EasyLogic (EasyLogic PM2200) power meter
• Primary Operational Current: 800 A
• Current Transformer Type: split core
• Net Weight: 1097 g
• Insulation: basic insulation 600 V AC || reinforced insulation 300 V AC
• Depth: 1.12 in
• Mounting Location: indoor use only

Offer Sustainability

• China Rohs Regulation: X
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Toxic Heavy Metal Free: Yes
• Eu Rohs Directive: Compliant
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc: Yes
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Environment

• Ambient Air Temperature For Operation: -15-60 °C
• Ambient Air Temperature For Storage: -40-70 °C
• Relative Humidity: 0-95 % non condensing
• Pollution Degree: 2
• Product Certifications: UL
• Operating Altitude: <= 6561.68 ft (2000 m)
• Installation Category: III
