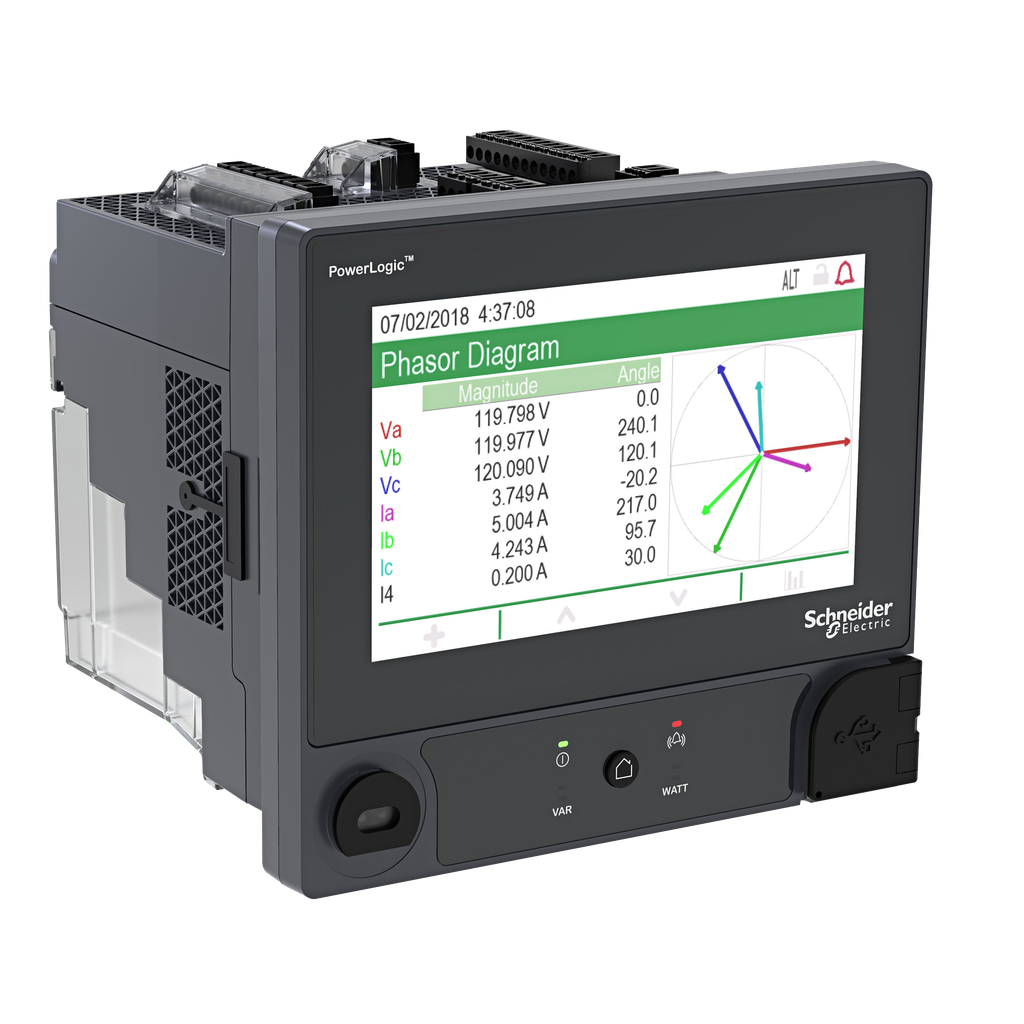

PowerLogicâ„¢ ION9000 meter, LVDC, DIN mount, 192 mm display, B2B adapter, HW kit

• Product Or Component Type: energy and power quality meter
• Range: PowerLogic
• Provided Equipment: remote display || remote display adapter || mounting instructions || Mounting Hardware
• Device Application: power monitoring || WAGES metering || Net metering || medium voltage || high voltage
• Device Short Name: ION92040
• Metering Type: demand current I1, I2, I3, I4, I5 || peak demand currents || demand power P, Q, S || peak demand power PM, QM, SM || calculated active and reactive energy (+/- W.h, +/- VAR.h)

Complementary

• [Us] Rated Supply Voltage: 20...60 V DC +/- 10 %
• Communication Port Support: 2 RS485 removable screw terminal block
• Power Quality Analysis: EN 50160 compliance checking || IEEE 519 harmonic limit || IEC 61000-4-30 class A compliance reporting || IEEE 519 compliance reporting || waveform capture || total demand distortion || total harmonic distortion || up to the 63rd harmonic || up to the 127th harmonic with software || disturbance direction detection || dip, swell and transient || half cycle data acquisition || transient detection (20 µs)
• Height: 160 mm
• Measurement Voltage: 57-400 V AC 42...69 Hz between phase and neutral || 100-690 V AC 42...69 Hz between phases
• Sampling Rate: 1024 samples/cycle
• Memory Capacity: 2 GB
• Number Of Outputs: 4 digital || 2 form C relay output
• Type Of Measurement: voltage sags and swells || current sags and swells || voltage || current || frequency || active and reactive power total || apparent power total || active and reactive power per phase || apparent power per phase || power factor total || power factor per phase || active and reactive energy || apparent energy || harmonic distorsion (I THD & U THD)
• Communication Port Protocol: Modbus RTU 2400...115200 bps - 2-wire || ION 2400...115200 bps - 2-wire || DNP3 2400...115200 bps - 2-wire || Modbus TCP 10/100 Mbit/s || ION TCP 10/100 Mbit/s || DNP3 TCP 10/100 Mbit/s || IEC 61850 || Ethernet Modbus TCP/IP daisy chain 10/100 Mbit/s || DHCP || DNS || DLMS
• Frequency Measurement Range: 20-450 Hz
• Communication Service: compliant reports || power quality summary || energy report || EcoStruxure Power Events Analysis || SMTP e-mail notification || SNMP
• Ride-Through Time: 500 ms 60 V DC typical
• Port Ethernet: 10/100BASE-TX 2 RJ45
• Display Resolution: 800 x 480 pixels
• Power Consumption In Va: 15 W 20...60 V DC
• Net Weight: 1.5 kg
• Tamperproof Of Settings: protected by sealable cover
• Measurement Current: 0.01-20 A
• Electrical Insulation Class: class III EN/IEC 62052-11
• Number Of Inputs: 8 digital 30 V AC/60 V DC
• Time Synchronisation Protocol: GPS || IRIG-B || NTP || SNTP || PTP
• Measurement Accuracy: voltage +/- 0.1 % || current +/- 0.1 %
• Ethernet Service: DHCP client || Device Profile Web Services (DPWS) || Rapid Scanning Tree Protocol (RSTP) || FTP/HTTP/HTTPS
• Mounting Support: DIN rail meter device || door cut-out remote display
• Communication Gateway: Ethernet/serial
• Poles Description: 3P + N + E
• Data Recording: time stamping || min/max of instantaneous values || user-definable data logs || continuous logging or snapshot || trending/forecasting || event logs || alarm logs || configuration change || power outage || user login/logout || data logs || GPS synchronisation || sequence of event recording
• Line Rated Current: 1 A || 5 A
• Cybersecurity: Syslog protocol support || robust security logs || port hardening || enable/disable communication ports || hardware metrology lock
• Isolation Voltage: III400-690 V conforming to EN 61010-1:ed. 3 || III347-600 V conforming to UL 61010-1:ed. 3 || III347-600 V conforming to CSA C22.2 No 61010-1:ed. 3
• Analogue Input Type: voltage 5 MOhm) || 5 external CT 0.3 mOhm)
• Web Services: viewing of captured waveform || web page || pass/fail report for IEEE 519 || pass/fail report for EN 50160 || ITIC (CBEMA) curve || SEMI curve || NEMA motor derating curve || alarm notification by e-mail || TLS 1.2 || push historical data via mail
• Width: 160 mm
• Display Type: remote LCD display || colour touchscreen
• Depth: 135.3 mm
• Accuracy Class: class 0.1S active energy IEC 62053-22 || class 0.1 active energy IEC 61557-12 || class 0.1 active energy ANSI C12.20 || class 0.5S reactive energy IEC 62053-24 || class 0.1 current IEC 61557-12 || class 0.1 voltage IEC 61557-12 || class 0.1 active power IEC 61557-12 || class 0.5 power factor IEC 61557-12
• Maximum Power Consumption In Va: 38 W 20...60 V DC

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1801009EN
• Sustainable Offer Status: Green Premium product
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc: Yes
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: X
• Circularity Profile: ENVEOLI1801009EN
• Eu Rohs Directive: Compliant

Environment

• Ambient Air Temperature For Operation: -25-70 °C
• Standards: ANSI C12.20 || ANSI C37.90.1 || IEC 61000-4-15 || IEC 61000-4-30 || IEC 61010-1 || IEC 61326-1 || IEC 61557-12 || IEC 61850 || IEC 62052-11 || IEC 62052-31 || IEC 62053-22 || IEC 62053-23 || IEC 62053-24 || IEC 62586 || UL 61010-1
• Degree Of Protection: UL type 12, front
• Electromagnetic Compatibility: EMC immunity IEC 62052-11 || EMC immunity IEC 61326-1 || EMC immunity IEC 61000-6-5 || electrostatic discharge immunity test IEC 61000-4-2 || immunity to radiated fields IEC 61000-4-3 || immunity to fast transients IEC 61000-4-4 || surge immunity test IEC 61000-4-5 || immunity to conducted disturbances IEC 61000-4-6 || immunity to magnetic fields at network frequency IEC 61000-4-8 || immunity to conducted disturbances 2...150 kHz CLC/TR 50579 || voltage dips and interruptions immunity test IEC 61000-4-11 || immunity to impulse waves IEC 61000-4-12 || conducted and radiated emissions EN 55011 || conducted and radiated emissionsclass B EN 55032 || conducted and radiated emissionsclass B FCC part 15 || conducted and radiated emissionsclass B ICES-003 || surge withstand ANSI C37.90.1 || surge withstand IEEE C37.90.1
• Ambient Air Temperature For Storage: -40-85 °C
• Relative Humidity: 5-95 %
• Quality Labels: ISO 9001 || ISO 14000
• Ip Degree Of Protection: front IP65 || rear IP30
• Operating Altitude: 0...9842.52 ft (0...3000 m)
• Installation Category: III
