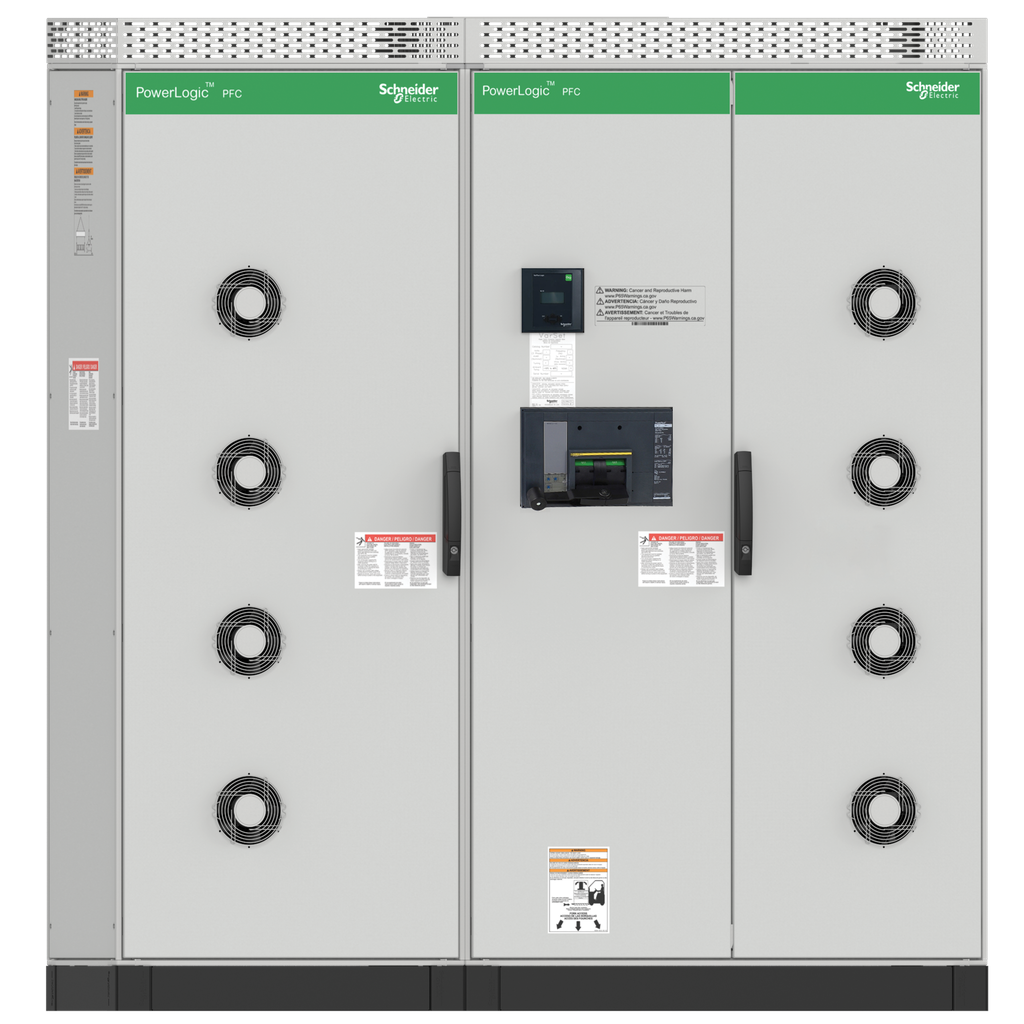

automatic PowerLogic PFC Smart Capacitor bank, 800kvar CB NE1 DR4.2 480V 60Hz

• Accessibility For Operation: front
• Series Name: PowerLogic PFC Capacitor + Detuned Reactor
• Range Of Product: PowerLogic
• Reactive Power Rating: 800 kvar
• Operating Mode: automatic
• Network Rated Voltage: 480 V AC 60 Hz
• Product Or Component Type: capacitor bank
• Color: Gray RAL 7035)
• Device Short Name: PowerLogic PFC Smart
• Controller Type: PowerLogic PFC Controller VPL12

Complementary

• Power Per Step: 100 kvar
• Width: 6000 mm
• Nema Degree Of Protection: NEMA 1
• Height: 2000 mm
• Poles Description: 3P
• Protection Type: circuit breaker protection
• Maximum Permissible Voltage: 1.1 x Un 8 hours over 24 hours)
• Tuning Frequency: 252 Hz
• [Thdu] Total Harmonic Distorsion: 0-7 %
• Depth: 600 mm
• Tuning Factor: 4.2
• Net Weight: 920 kg
• Breaking Capacity: 65 kA
• Step Composition: 8x100
• Mounting Location: indoor

Offer Sustainability

• China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
• Circularity Profile: ENVEOLI2109003
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP2109003
• Sustainable Offer Status: Green Premium product
• Toxic Heavy Metal Free: Yes
• Eu Rohs Directive: Compliant
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Environment

• Product Certifications: cCSAus
• Relative Humidity: 0-95 %
• Ambient Air Temperature For Operation: -10-46 °C
• Standards: CSA C22.2 No 190-M1985 || UL 810 || UL 508 A
• Average Ambient Air Temperature For Operation: 25 °C annual) || 35 °C over 24 hours)
• Operating Altitude: <= 6561.68 ft (2000 m)
