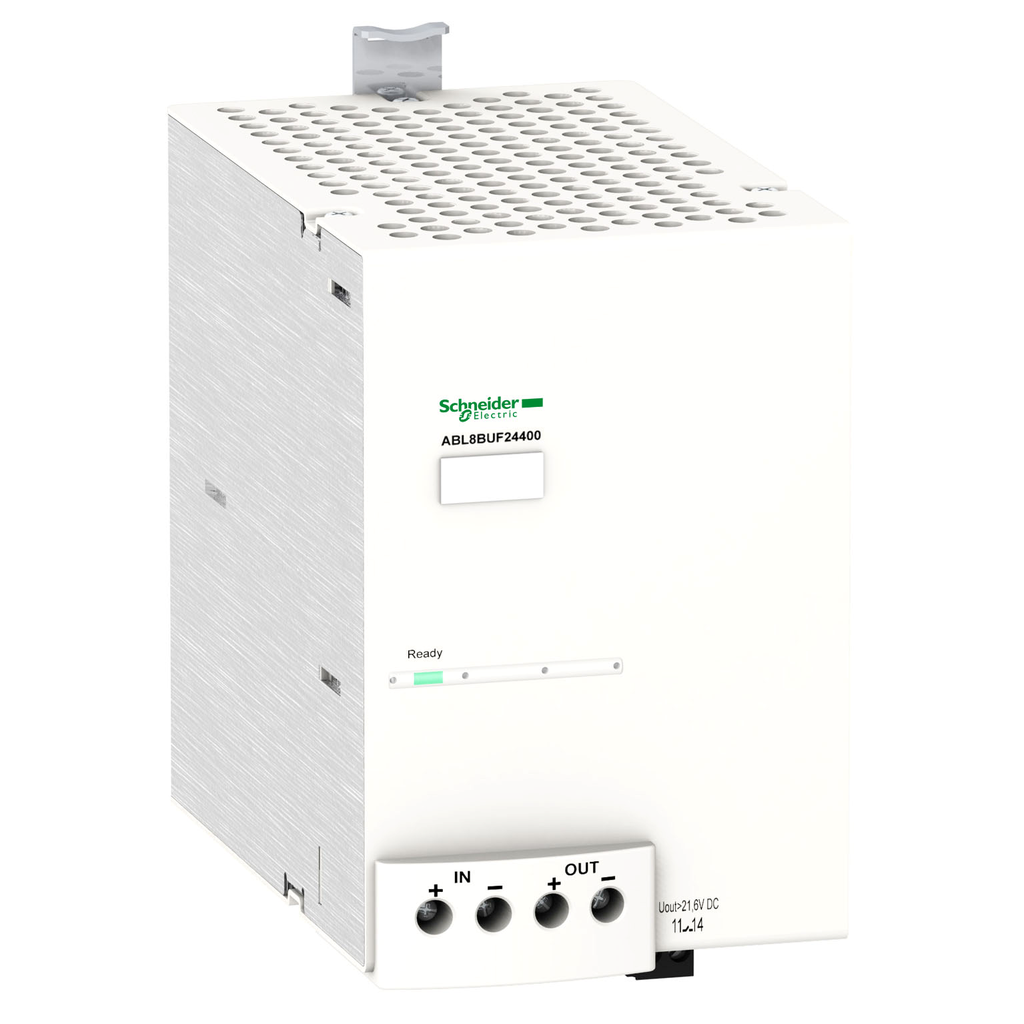

buffer module - 24..28.8 V DC - 40 A - for power supply

• Output Voltage: (Uin-0.25) V nominal mode DC || (Uin-1) V buffer mode DC
• Range Of Product: Phaseo
• Holding Time: 0.1 s 40 A || 6 s 0.5 A
• Product Or Component Type: buffer module
• Input Voltage: 24...28.8 V DC
• Maximum Output Current: 40 A

Contractual warranty

• Warranty: 18 months

Complementary

• Current Consumption: 0.6 A on load || 0.1 mA no load || <= 40.6 A
• Output Coupling: parallel
• Fixing Mode: by clips 35 mm symmetrical DIN rail horizontal || by clips 35 mm symmetrical DIN rail vertical
• Marking: CE
• Input Voltage Limits: 22...30 V
• Net Weight: 1.2 kg
• Charging Time: 25 s
• Connections - Terminals: input connection screw type terminals 2 x 0.5...2 x 10 mm² AWG 20...AWG 8 || output connection screw type terminals 2 x 0.5...2 x 10 mm² AWG 20...AWG 8 || diagnostic relay removable screw terminal block 1 x 2.5 mm² AWG 14
• Output Protection Type: against overload > 45 A || against short-circuits power-supplied mode, automatic reset || against undervoltage tripping if U < 19 V
• Maximum Power Dissipation In W: 15 W
• Name Of Test: electrostatic discharges EN/IEC 61000-4-2 || emission EN 61000-6-3 || induced electromagnetic field EN/IEC 61000-4-6 level 3 || radiated electromagnetic field EN/IEC 61000-4-3 level 3 || rapid transient IEC 61000-4-4 level 3 || surge EN/IEC 61000-4-5 level 2 || conducted/radiated emissions EN 55022 Class B, 20 %
• Local Signalling: for buffer ready 1 LED (green) || for buffer ready 1 relay
• Activation Threshold: (Uin-1) V and 22 V min
• Number Of Output Channels: 1
• Operating Altitude: 6561.68 ft (2000 m)

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Pvc Free: Yes
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation: X
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Product Certifications: RCM || EAC
• Ambient Air Temperature For Operation: -25-60 °C
• Standards: UL 508 || CSA C22.2 No 60950-1
• Environmental Characteristic: EMC EN 61000-6-3 || EMC EN/IEC 61000-6-2 || safety EN/IEC 60950-1 || safety EN/IEC 61204-3
• Vibration Resistance: 2 gn 11.9-150 Hz)EN/IEC 61131-2 || 3.5 mm 3-11.9 Hz)EN/IEC 61131-2
• Mtbf Reliability: 1119603 H at 24 V DC with UTE C80-810 calculation method
• Ip Degree Of Protection: IP20 conforming to EN/IEC 60529
• Ambient Air Temperature For Storage: -40-85 °C
• Overvoltage Category: class II VDE 0106-1
• Relative Humidity: 0-90 % during operation || 0-95 % during storage
• Dielectric Strength: 500 V between input and ground || 500 V between output and ground
