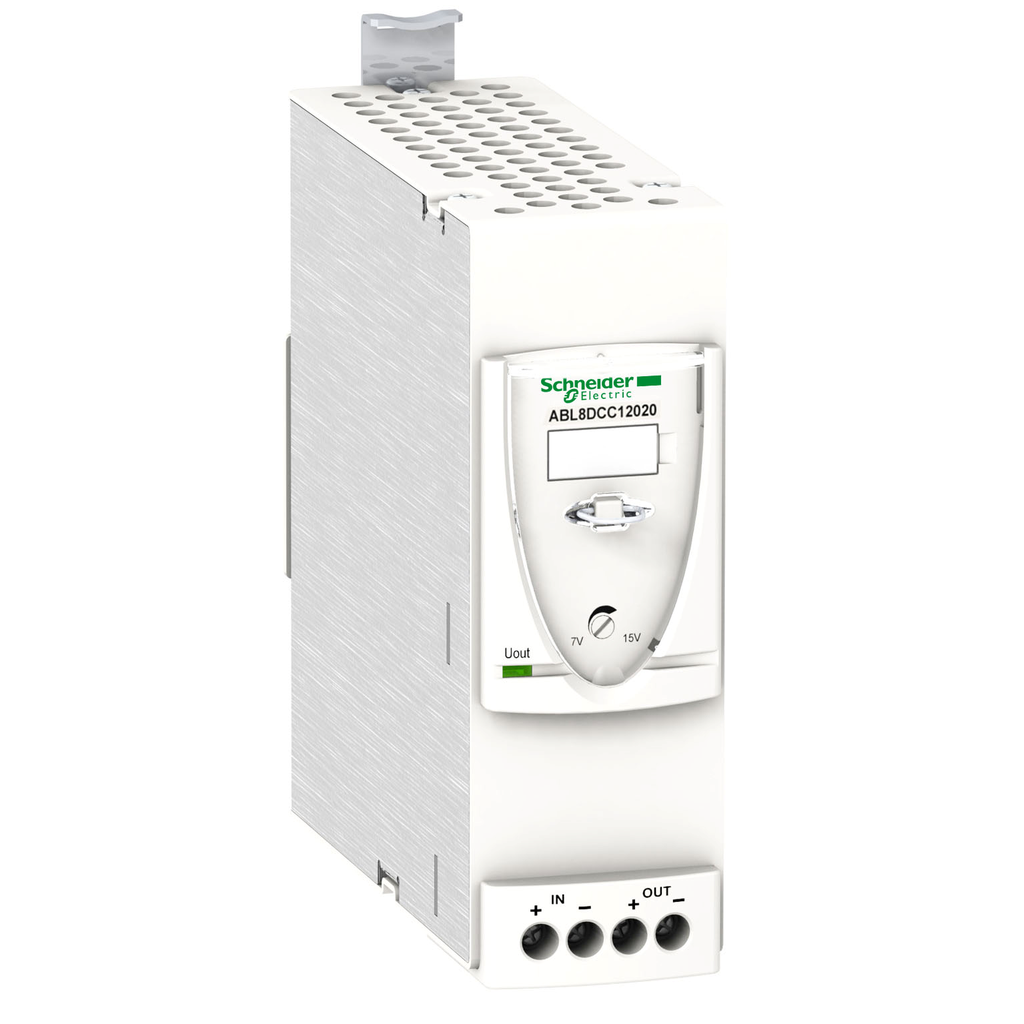

converter module 24 W - 24..28.8 V DC, 12 V DC - 2 A - for regulated SMPS

• Range Of Product: Phaseo Universal
• Output Voltage: 12 V DC
• Product Or Component Type: converter module
• Power Supply Output Current: 2 A
• Kw Rating: 24 W
• Input Voltage: 24...28.8 V DC

Contractual warranty

• Warranty: 18 months

Complementary

• Residual Ripple: <= 100 mV
• Efficiency: 82 %
• Input Voltage Limits: 22...30 V
• Net Weight: 0.3 kg
• Fixing Mode: by clips 35 mm symmetrical DIN rail horizontal || by clips 35 mm symmetrical DIN rail vertical
• Line And Load Regulation: 1...3 %
• Connections - Terminals: input connection screw type terminals 2 x 0.5...2 x 4 mm² AWG 24...AWG 10 || output connection screw type terminals 2 x 0.5...2 x 4 mm² AWG 24...AWG 10
• Output Protection Type: against overload automatic reset || against overvoltage tripping if U > 7.8 V, automatic reset || against short-circuits automatic reset
• Power Dissipation In W: 4 W
• Name Of Test: induced electromagnetic field EN/IEC 61000-4-6 level 3 || radiated electromagnetic field EN/IEC 61000-4-3 level 3 || rapid transient IEC 61000-4-4 level 3 || surge EN/IEC 61000-4-5 level 2 || conducted/radiated emissions EN 55022 Class B || electrostatic discharges EN/IEC 61000-4-2 || emission EN 61000-6-3
• Output Voltage Limits: 7...15 V
• Local Signalling: for output voltage (> 6 V) 1 LED (green)
• Input Protection Type: against reverse polarity
• Operating Altitude: 6561.68 ft (2000 m)

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP061201EN
• Sustainable Offer Status: Green Premium product
• Pvc Free: Yes
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc: Yes
• China Rohs Regulation: X
• Circularity Profile: ENVEOLI120913EN
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Product Certifications: RCM || EAC || cCSAus || UL
• Ambient Air Temperature For Operation: -25-60 °C
• Environmental Characteristic: EMC EN 50081-1 || EMC EN 61000-6-3 || EMC EN/IEC 61000-6-2 || safety EN/IEC 60950-1 || safety IEC 61204
• Vibration Resistance: 2 gn 11.9-150 Hz)EN/IEC 61131-2 || 3.5 mm 3-11.9 Hz)EN/IEC 61131-2
• Ip Degree Of Protection: IP20 conforming to EN/IEC 60529
• Ambient Air Temperature For Storage: -40-85 °C
• Relative Humidity: 0-90 % during operation || 0-95 % during storage
• Overvoltage Category: class 3
• Dielectric Strength: 500 V between input and ground || 500 V between input and output || 500 V between output and ground
