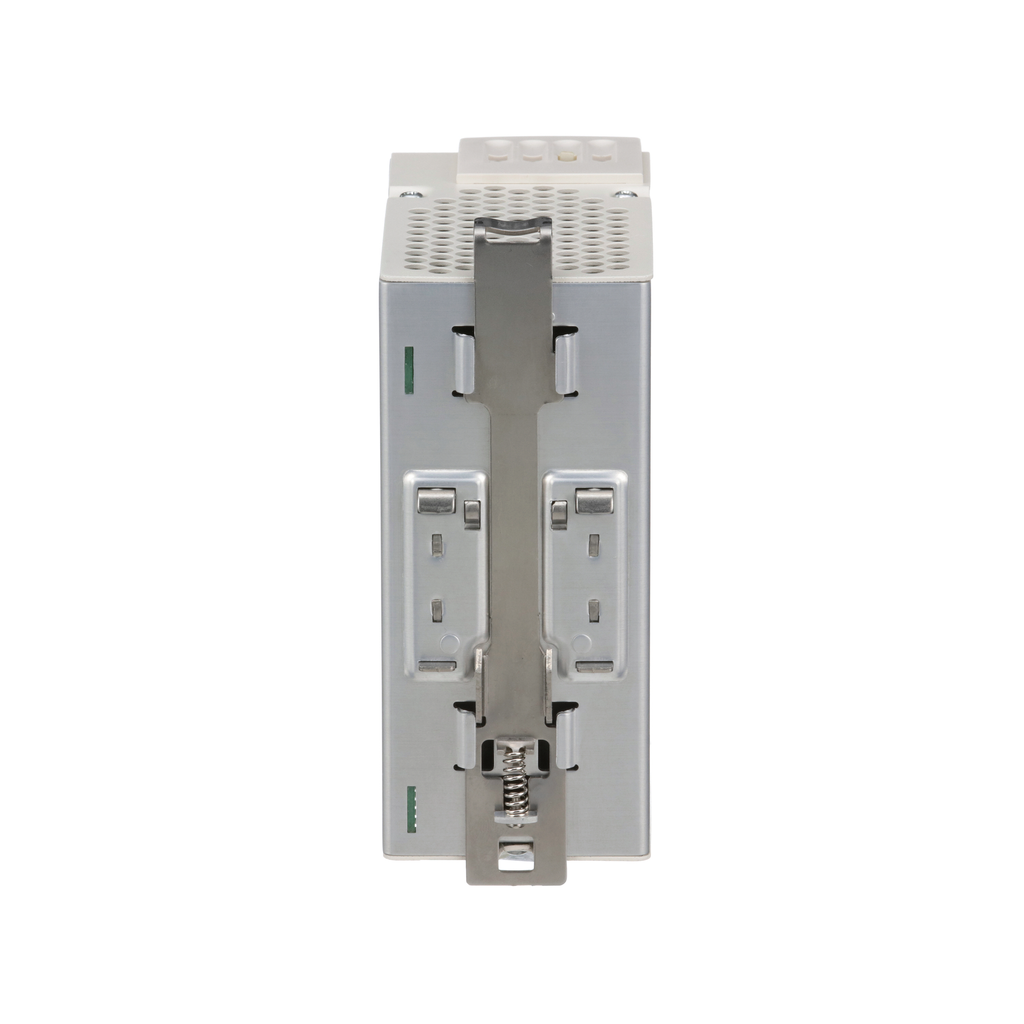

universal power supply, Phaseo, 1 or 2 phase, 100 to 500 V, 24 V, 5 A

• Range Of Product: Modicon Power Supply
• Output Voltage: 24 V DC
• Product Or Component Type: power supply
• Power Supply Type: regulated switch mode
• Anti-Harmonic Filter: low frequency harmonic currents
• Input Voltage: 100...120 V AC single phase N-L1 || 200...500 V AC phase to phase L1-L2
• Permissible Temporary Current Boost: 1.5 x In for 4 s)
• Power Supply Output Current: 5 A
• Kw Rating: 120 W

Contractual warranty

• Warranty: 18 months

Complementary

• Output Coupling: parallel || series
• Height: 143 mm
• Provided Equipment: power factor correction filter IEC 61000-3-2
• Status Led: 1 LED (green and red) output voltage || 1 LED (green, red and orange) output current
• Connections - Terminals: removable screw terminal block 2 x 2.5 mm², diagnostic relay || screw type terminals 3 x 0.5...3 x 4 mm², AWG 22...AWG 12) input connection || screw type terminals 1 x 0.5...1 x 4 mm², AWG 22...AWG 12) input ground connection || screw type terminals 4 x 0.5...4 x 4 mm², AWG 22...AWG 12) output connection || screw type terminals 1 x 0.5...1 x 4 mm², AWG 22...AWG 12) output ground connection
• Dielectric Strength: 3500 V with between input and ground || 4000 V with between input and output || 500 V with between output and ground
• Marking: CE
• Supply: SELV EN/IEC 60950-1 || SELV EN/IEC 60204-1 || SELV IEC 60364-4-41
• Net Weight: 0.7 kg
• Output Protection Type: against overload manual or automatic reset || against overvoltage 30...32 V, manual reset || against short-circuits manual or automatic reset || against undervoltage tripping if U < 21.6 V || thermal automatic reset
• Power Dissipation In W: 15.5 W
• Output Voltage Limits: 24...28.8 V adjustable
• Mounting Support: 35 x 15 mm symmetrical DIN rail || 35 x 7.5 mm symmetrical DIN rail
• Operating Position: vertical
• Width: 56 mm
• Inrush Current: 30 A
• Efficiency: 87 %
• Depth: 125 mm
• Power Factor: 0.51 at 240 V AC || 0.59 at 120 V AC

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP061201EN
• Sustainable Offer Status: Green Premium product
• Pvc Free: Yes
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation: X
• Circularity Profile: ENVEOLI120913EN
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Standards: CSA C22.2 No 60950-1 || UL 508 || EN/IEC 62368-1
• Ambient Air Temperature For Operation: 50-60 °C with derating factor mounting position A < 6561.68 ft (2000 m) || -25-50 °C without derating mounting position A < 6561.68 ft (2000 m)
• Product Certifications: cCSAus || EAC || KC || RCM || UL
• Environmental Characteristic: EMC EN 61000-6-1 || EMC EN 61000-6-3 || EMC EN 55024 || EMC EN/IEC 61000-6-4 || EMC EN/IEC 61204-3 || safety EN/IEC 60950-1 || safety EN/IEC 61204-3
• Ip Degree Of Protection: IP20 conforming to EN/IEC 60529
• Operating Altitude: 6561.68 ft (2000 m)
