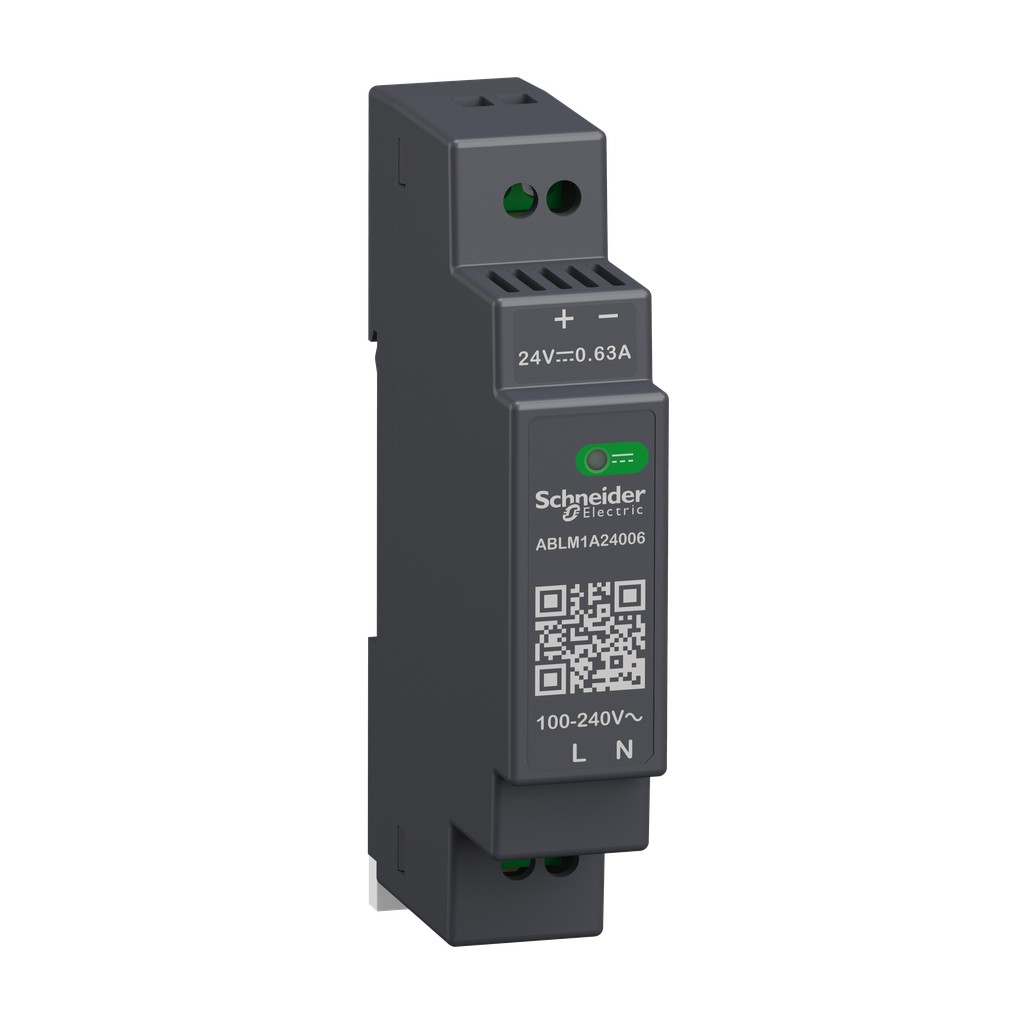

Regulated Power Supply, 100-240V AC, 24V 0.6 A, single phase, Modular

• Range Of Product: Modicon Power Supply
• Output Voltage: 24 V DC
• Product Or Component Type: power supply
• Power Supply Type: regulated switch mode
• Input Voltage: 100...240 V AC single phase || 100...240 V AC 2 phases
• Power Supply Output Current: 0.625 A
• Kw Rating: 15 W
• Enclosure Material: Plastic

Complementary

• Output Coupling: serial
• Height: 91 mm
• Residual Ripple: < 100 mV
• Status Led: 1 LED (Green) output voltage
• Holding Time: > 10 ms 115 V AC || > 60 ms 230 V AC
• Efficiency At Full Load: 90...264 V AC
• Earthing System: TN || TT || IT
• Connections - Terminals: screw connection 0.5...1.5 mm², AWG 20...AWG 16) without wire end ferrule input/output || screw connection 0.5...1 mm², AWG 20...AWG 18) with wire end ferrule input/output
• Dielectric Strength: 3000 V AC input/output
• Network Frequency Limits: 50-60 Hz
• Current Consumption: < 0.4 A 115 V AC || < 0.25 A 230 V AC
• Supply: SELV EN/IEC 60950-1 || SELV EN/IEC 60204-1 || SELV IEC 60364-4-41
• Net Weight: 0.101 kg
• Maximum Leakage Current: 0.25 mA 240 V AC
• Input Protection Type: integrated fuse (not interchangeable) 3.15 A || external protection (recommended) 20 A Curve B || external protection (recommended) 20 A Curve C || external protection (recommended) 2 A Curve B || external protection (recommended) 2 A Curve C
• Output Protection Type: against overload and short-circuits automatic reset || against over temperature manual reset || against overvoltage manual reset
• Service Life: 10 year(s)
• Meantime Between Failure [Mtbf]: 3000000 h at 25 °C, full load || 1000000 h at 55 °C, 80 % load
• Power Dissipation In W: 3.5 W
• Mounting Support: top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || double-profile DIN rail || panel mounting
• Load Capacitance: 3000 µF
• Response Time: < 2 s
• Line And Load Regulation: < 0.5 % network in line || < 1 % network 0 to 100 % load
• Width: 18 mm
• Inrush Current: 15 A 115 V || 30 A 230 V
• Efficiency: 81 % 115 V AC || 81 % 230 V AC
• Depth: 55.6 mm
• Power Factor: 0.51 at 115 V AC || 0.40 at 230 V AC

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP2004005EN
• Sustainable Offer Status: Green Premium product
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: X
• Circularity Profile: ENVEOLI2004005EN
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Standards: EN 62368-1 || EN/IEC 61010-1 || EN 61010-2-201 || EN/IEC 61204-3 || EN 61000-6-1 || EN 61000-6-2 || EN 61000-6-3 || EN 61000-6-4 || EN 61000-3-2 || EN 61000-3-3 || UL 62368-1 || UL 61010-1 || UL 61010-2-201 || CSA C22.2 No 62368-1 || CSA C22.2 No 61010-1 || CSA C22.2 No 61010-2-201 || EN/IEC 62368-1
• Ambient Air Temperature For Operation: -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m) || 55-70 °C with current derating of 2.67 % per °C mounting position A < 6561.68 ft (2000 m)
• Product Certifications: CE || cUL Listed || cUL Recognized || RCM || CB Scheme || EAC || KC || NEC class 2
• Pollution Degree: 2
• Electromagnetic Compatibility: immunity to electrostatic discharge 8 kV contact discharge) EN/IEC 61000-4-2 || immunity to electrostatic discharge 15 kV air discharge) EN/IEC 61000-4-2 || electromagnetic field immunity test 15 V/m 80 MHz...2 GHz) EN/IEC 61000-4-3 || electromagnetic field immunity test 5 V/m 2...2.7 GHz) EN/IEC 61000-4-3 || electromagnetic field immunity test 5 V/m 2.7...6 GHz) EN/IEC 61000-4-3 || immunity to fast transients 4 kV on input-output) EN/IEC 61000-4-4 || surge immunity test 4 kV between power supply and earth) EN/IEC 61000-4-5 || surge immunity test 3 kV between phases) EN/IEC 61000-4-5 || immunity to conducted disturbances 15 V 0.15...80 MHz) EN/IEC 61000-4-6 || immunity to magnetic fields 30 A/m 50...60 Hz) EN/IEC 61000-4-8 || immunity to voltage dips 100 % 1 cycle) EN/IEC 61000-4-11 || immunity to voltage dips 60 % 10 cycles) EN/IEC 61000-4-11 || immunity to voltage dips 30 % 25 cycles) EN/IEC 61000-4-11 || disturbing field emission EN 55016-2-3 || limits for harmonic current emissions EN 61000-3-2 || EN 55016-1-2 || EN 55016-2-1
• Shock Resistance: 150 m/s² 11 ms
• Vibration Resistance: 3 mm 2-9 Hz)IEC 60721-3-3 || 10 m/s² 9-200 Hz)IEC 60721-3-3
• Ip Degree Of Protection: IP20
• Operating Altitude: < 6561.68 ft (2000 m) overvoltage category III || 2000 m...5000 m overvoltage category II
• Electrical Shock Protection Class: class II without PE connection
• Electromagnetic Emission: conducted emissions EN 61000-6-3 || radiated emissions EN 61000-6-4
