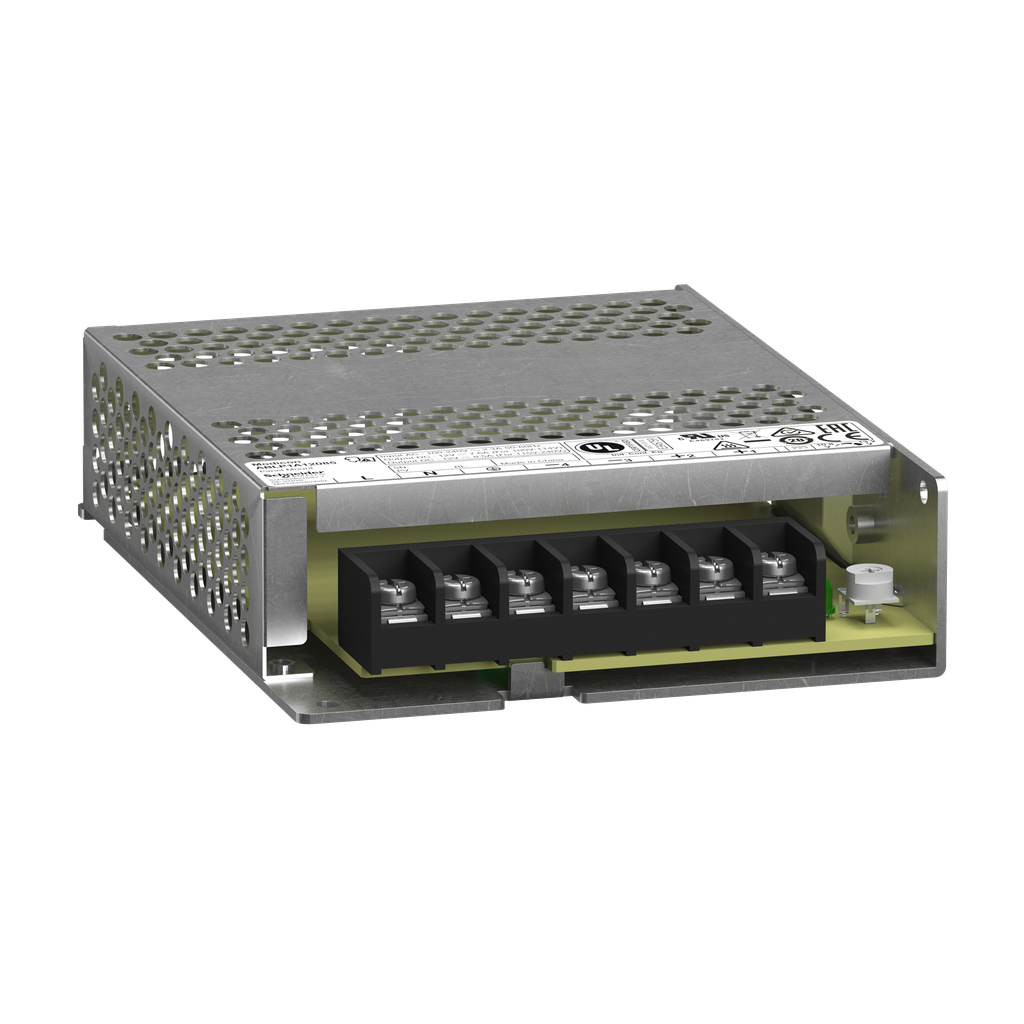

Regulated Power Supply, 100...240V AC, 12V 8.5A, single phase, Panel Mount

• Range Of Product: Modicon Power Supply
• Output Voltage: 12 V DC
• Product Or Component Type: power supply
• Power Supply Type: regulated switch mode
• Input Voltage: 100...240 V AC single phase
• Power Supply Output Current: 8.5 A
• Kw Rating: 100 W
• Enclosure Material: Aluminum

Complementary

• Output Coupling: parallel || serial
• Height: 30 mm
• Residual Ripple: < 120 mV
• Status Led: 1 LED (Green) output voltage
• Holding Time: > 20 ms 115 V AC || > 40 ms 230 V AC
• Efficiency At Full Load: 90...264 V AC
• Earthing System: TN || TT || IT
• Connections - Terminals: screw connection 0.75...2.5 mm², AWG 18...AWG 14) without wire end ferrule || screw connection 0.75...1.5 mm², AWG 18...AWG 16) with wire end ferrule
• Dielectric Strength: 3750 V AC with input to output
• Network Frequency Limits: 50-60 Hz
• Current Consumption: < 2.3 A 115 V AC || < 1.5 A 230 V AC
• Supply: SELV EN/IEC 60950-1 || SELV EN/IEC 60204-1 || SELV IEC 60364-4-41
• Net Weight: 0.3 kg
• Maximum Leakage Current: 1 mA 240 V AC
• Input Protection Type: integrated fuse (not interchangeable) 4 A
• Output Protection Type: against overload and short-circuits automatic reset || against over temperature manual reset || against overvoltage manual reset
• Service Life: 10 year(s)
• Meantime Between Failure [Mtbf]: 700000 h at 25 °C, full load conforming to SR 332
• Power Dissipation In W: 21 W
• Output Voltage Limits: 10.8...13.2 V
• Mounting Support: top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || double-profile DIN rail || panel mounting
• Load Capacitance: 4000 µF
• Response Time: < 500 ms
• Line And Load Regulation: < 0.5 % network 0 to 100 % load at 25 °C || < 1 % network full voltage range in line at 25 °C
• Width: 97 mm
• Inrush Current: 45 A 115 V || 85 A 230 V
• Efficiency: 88 % 230 V AC
• Depth: 129 mm
• Power Factor: 0.55 at 115 V AC || 0.45 at 230 V AC

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP2007017EN
• Sustainable Offer Status: Green Premium product
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: X
• Circularity Profile: ENVEOLI2007017EN
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Standards: EN 62368-1 || EN 61010-1 || EN 61010-2-201 || EN 61204-3 || EN 61000-6-1 || EN 61000-6-2 || EN 61000-6-3 || EN 61000-6-4 || EN 61000-3-2 || EN 61000-3-3 || UL 62368-1 || UL 61010-1 || UL 61010-2-201 || CSA C22.2 No 62368-1 || CSA C22.2 No 61010-1 || CSA C22.2 No 61010-2-201 || EN/IEC 62368-1
• Ambient Air Temperature For Operation: -30-50 °C without derating mounting position A, B, F, G < 6561.68 ft (2000 m) || 50-70 °C with current derating of 2 % per °C mounting position A, B, F, G < 6561.68 ft (2000 m)
• Product Certifications: CE || cULus || EAC || RCM || CB Scheme || KC
• Pollution Degree: 2
• Electromagnetic Compatibility: immunity to electrostatic discharge 8 kV contact discharge) EN/IEC 61000-4-2 || immunity to electrostatic discharge 15 kV air discharge) EN/IEC 61000-4-2 || immunity to conducted RF disturbances 15 V/m 80 MHz...2 GHz) EN/IEC 61000-4-3 || immunity to conducted RF disturbances 5 V/m 2...2.7 GHz) EN/IEC 61000-4-3 || immunity to conducted RF disturbances 5 V/m 2.7...6 GHz) EN/IEC 61000-4-3 || immunity to fast transients 4 kV on input-output) EN/IEC 61000-4-4 || surge immunity test 4 kV between power supply and earth) EN/IEC 61000-4-5 || surge immunity test 3 kV between phases) EN/IEC 61000-4-5 || immunity to conducted RF disturbances 15 V 0.15...80 MHz) EN/IEC 61000-4-6 || immunity to magnetic fields 30 A/m 50...60 Hz) EN/IEC 61000-4-8 || immunity to voltage dips EN/IEC 61000-4-11 || disturbing field emission EN 55016-2-3 || limits for harmonic current emissions EN 61000-3-2 || EN 55016-1-2 || EN 55016-2-1
• Shock Resistance: 150 m/s² 11 ms
• Vibration Resistance: 3 mm 2-9 Hz)IEC 60068-2-6 || 10 m/s² 9-200 Hz)IEC 60068-2-6
• Ip Degree Of Protection: IP10
• Operating Altitude: 5000 m
• Electrical Shock Protection Class: class I
• Electromagnetic Emission: conducted emissions EN 61000-6-3 || radiated emissions EN 61000-6-4
