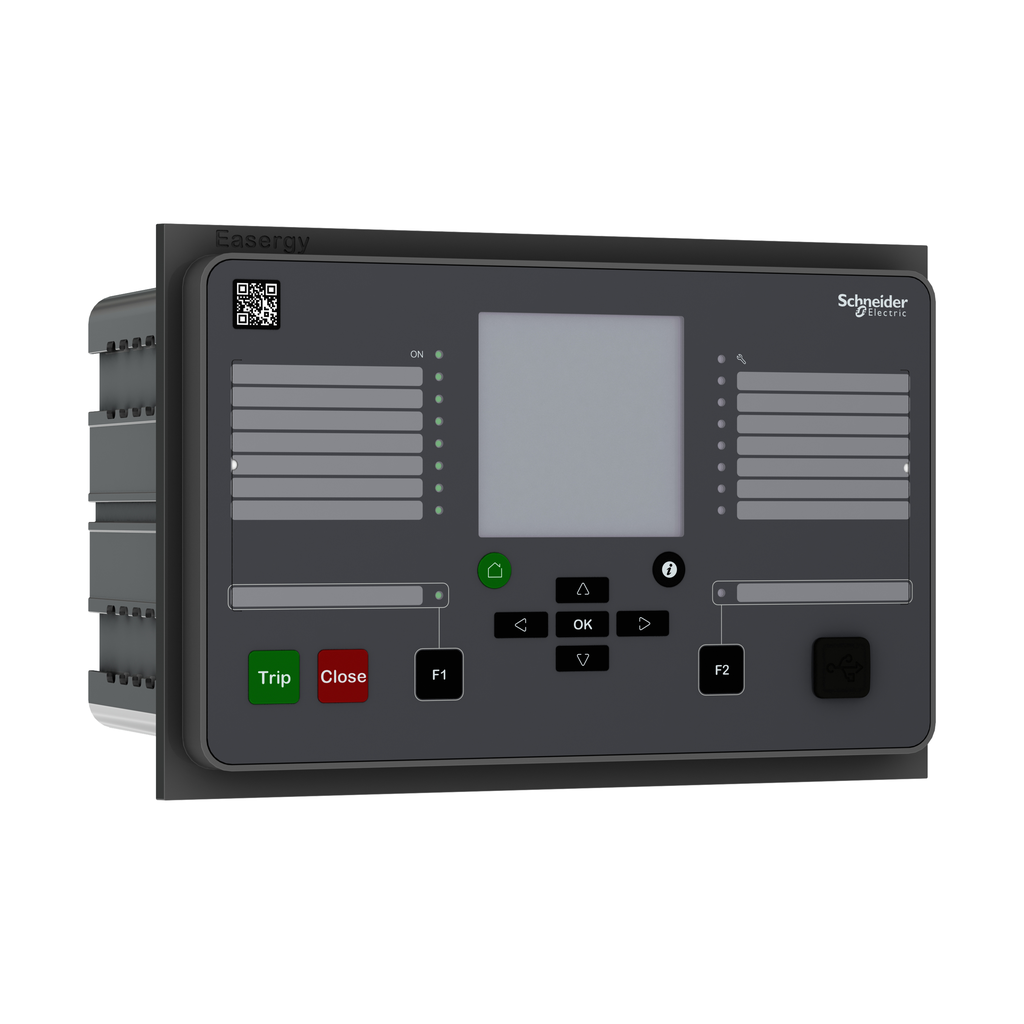

Easergy P3M32 6CT 3Io ringlug 4VT 12DI 14DO 110-230V DI110V RS485 RJ45 ANSI

• Monitoring Function: trip circuit supervision 74 || circuit breaker monitoring || relay self-monitoring
• Analogue Output Number: 0
• Analogue Input Number: 0
• Relay Type: differential current relay
• Input Type: 6 1/5 A CT phase current || 2 5/1 A CT residual current || 1 1/0.2 A CT residual current || 4 100 V/110 V VT voltage
• Range Of Product: Easergy P3
• Connections - Terminals: screw removable (digital input/output) || ring lugs fixed (current transformer) || pin removable (voltage transformer)
• Network And Machine Diagnosis Type: event recording || disturbance recording || tripping context
• Device Mounting: flush
• Control Type: switchgear control and monitoring || programmable switchgear interlocking || local control on single-line diagram || local control with I/O keys || local/remote control || 2 function keys || mobile application with Easergy SmartApp || web-server
• Number Of Outputs: 14 DO || 1 watchdog
• Digital Input Number: 12.0
• Setting: 4
• Protection Type: synchro-check 25 || undervoltage 27 || directional active underpower 37P || phase undercurrent 37 || negative sequence overcurrent 46 || negative sequence overvoltage 47 || excessive starting time, locked rotor 48/51LR || thermal overload protection 49 || earth fault overcurrent 50N/51N || phase overcurrent 50/51 || breaker failure 50BF || switch ON to fault (SOTF) || capacitor bank unbalance 51C || capacitor overvoltage 59C || overvoltage 59 || earth fault overvoltage 59N || stator earth fault 64S || restricted earth fault 64REF || motor restart inhibition 66 || directional phase overcurrent 67 || directional earth fault 67N || H2 detection 68H2 || H5 detection 68H5 || underfrequency 81/81N || rate of change of frequency 81R || lockout relay 86 || machine differential 87M || programmable stages 99 || programmable curve || cold load pick-up
• Relay Application: motor
• Integrated Connection Type: front USB port 1 || rear RJ45 1 || rear RS485 1
• Cybersecurity: password protection || port hardening
• Communication Port Protocol: IEC 61850 ed. 1 || IEC 61850 ed. 2 || IEC 60870-5-101 || DNP3 TCP || Modbus TCP || EtherNet/IP || IEC 60870-5-103 || DNP3 || Modbus RTU || DeviceNet || SPAbus
• Number Of Sensors: 0 temperature || 0 arc
• Product Or Component Type: protection relay
• Switchgear Diagnosis Type: CT/VT supervision || trip circuit supervision TCS
• Arc Flash Protection: no
• Single Line Diagram: 6 controlled + 8 displayed
• Type Of Measurement: current 3-phase || current zero sequence || current positive sequence || current negative sequence || current ratio of negative and positive || voltage phase to earth || voltage phase to phase || voltage zero sequence || voltage positive sequence || voltage negative sequence || voltage ratio of negative and positive || short circuit fault reactance || fault location current || earth fault reactance || frequency || active power || RMS active power || reactive power || RMS reactive power || apparent power || RMS apparent power || active energy || reactive energy || cos φ || tan φ || power angle || power factor || voltage phasor diagram view || current phasor diagram view || current 2nd, 15th harmonics with THD || voltage 2nd, 15th harmonics with THD || condition monitoring CB wear || voltage interruption
• Device Short Name: P3M32-CGG1A-AA1FA-BBAAB
• [Us] Rated Supply Voltage: 48...230 V AC/DC

Complementary

• Number Of Key: 2 customizable
• Operating Threshold: 110 V AC/DC
• Time Synchronisation Protocol: SNTP
• Width: 270 mm
• Height: 176 mm
• Display Type: and LCD 128 x 128 pixels with single line diagram || and LCD 128 x 128 pixels with ANSI symbols
• Net Weight: 4.2 kg maximum
• Local Signalling: 2 LEDs || 16 LEDs programmable
• Depth: 230 mm
• Web Server: embedded HTTP server

Environment

• Electromagnetic Compatibility: emission tests IEC/EN 60255-26 ed. 3 || emission tests class A CISPR 11 || emission tests class A CISPR 22 || EMC immunity IEC/EN 60255-26 ed. 3 || EMC immunity EN/IEC 61000-4-18 || EMC immunity IEC 60255-22-1 || EMC immunity level 4 EN/IEC 61000-4-2 || EMC immunity IEC 60255-22-2 || EMC immunity level 3 EN/IEC 61000-4-3 || EMC immunity IEC 60255-22-3 || EMC immunity level 4 EN/IEC 61000-4-4 || EMC immunity IEC 60255-22-4 || EMC immunity level 3 EN/IEC 61000-4-5 || EMC immunity IEC 60255-22-5 || EMC immunity level 3 EN/IEC 61000-4-6 || EMC immunity IEC 60255-22-6 || EMC immunity EN/IEC 61000-4-8 || EMC immunity level 5 EN/IEC 61000-4-9 || EMC immunity EN/IEC 61000-4-29 || EMC immunity EN/IEC 61000-4-11 || EMC immunity EN/IEC 61000-4-17 || EMC immunity IEC 60255-27 || EMC immunity class III IEC 60255-5 || EMC immunity EN/IEC 60255-1
• Mechanical Robustness: vibrations class II) IEC 60255-21-1 || vibrationsFc IEC 60068-2-6 || shocks class II) IEC 60255-21-2 || shocksEa IEC 60068-2-27 || seismic tests method A class II) IEC 60255-21-3
• Ambient Air Temperature For Storage: -40-70 °C
• Relative Humidity: 0-95 %, without condensation
• Protective Treatment: conformal coating
• Ambient Air Temperature For Operation: -40-65 °C
• Environmental Characteristic: exposure to dry heat Bd EN/IEC 60068-2-2 || exposure to cold Ad EN/IEC 60068-2-1 || exposure to damp heat in service Db EN/IEC 60068-2-30 || exposure to damp heat in service Cab EN/IEC 60068-2-78
• Operating Altitude: 6561.68 ft (2000 m)
• Ip Degree Of Protection: IP54 conforming to IEC 60529
