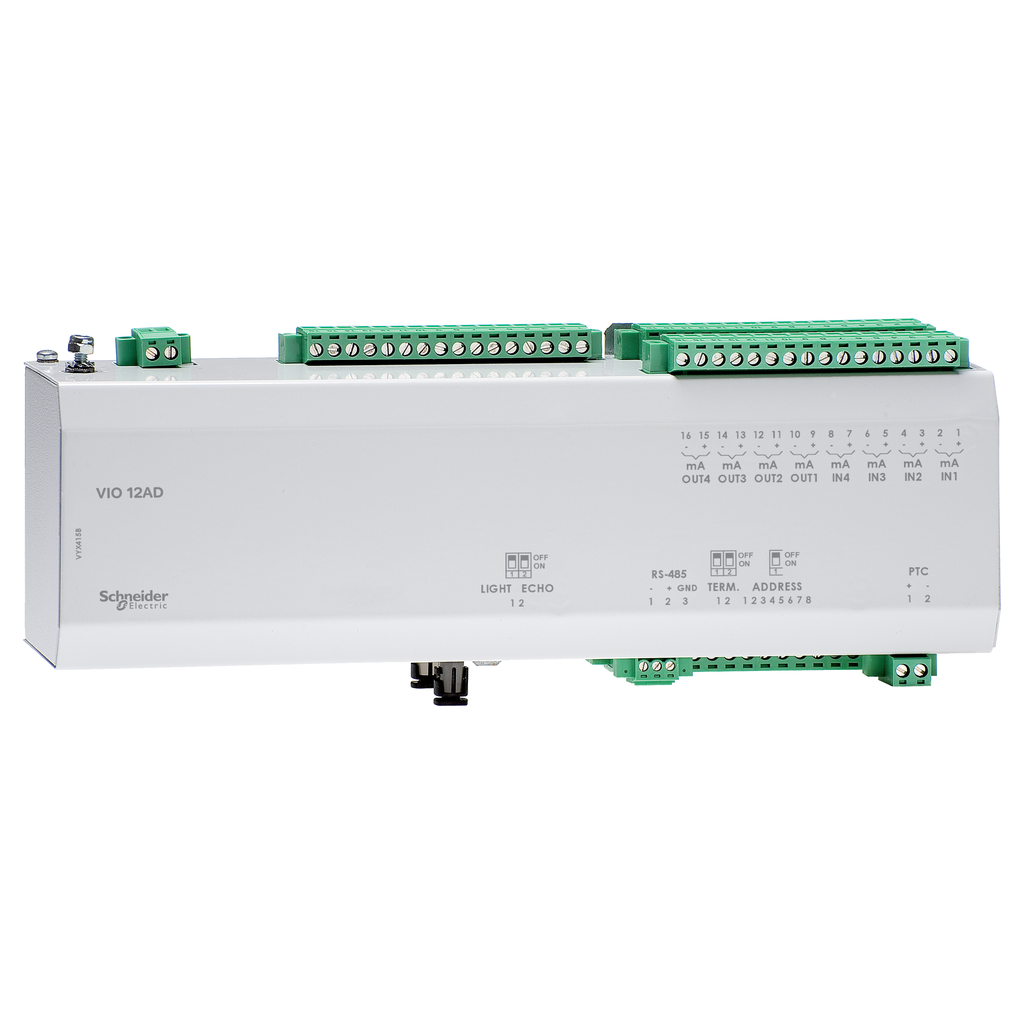

Easergy P3 accessory VIO12ADSE 48-230V RTD module 12 RTD inputs 4/4 mA in/out

• [Us] Rated Supply Voltage: 48...230 V AC/DC
• Range Of Product: Easergy P3
• Mounting Support: wall mounted || 35 mm symmetrical DIN rail
• Product Or Component Type: analog temperature module

Complementary

• Communication Port Support: fiber optic || serial link
• Analogue Input Number: 4
• Temperature Probe Type: Pt 100, Ni 100, Ni 120, Cu 10
• Analogue Output Number: 4
• Number Of Inputs: 12 RTD temperature sensor) || 1 PTC temperature sensor)

Offer Sustainability

• China Rohs Regulation: X
• Circularity Profile: ENVEOLI1411007
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1411007
• Sustainable Offer Status: Green Premium product
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• Reach Free Of Svhc: Yes

Environment

• Ambient Air Temperature For Operation: 0-55 °C
