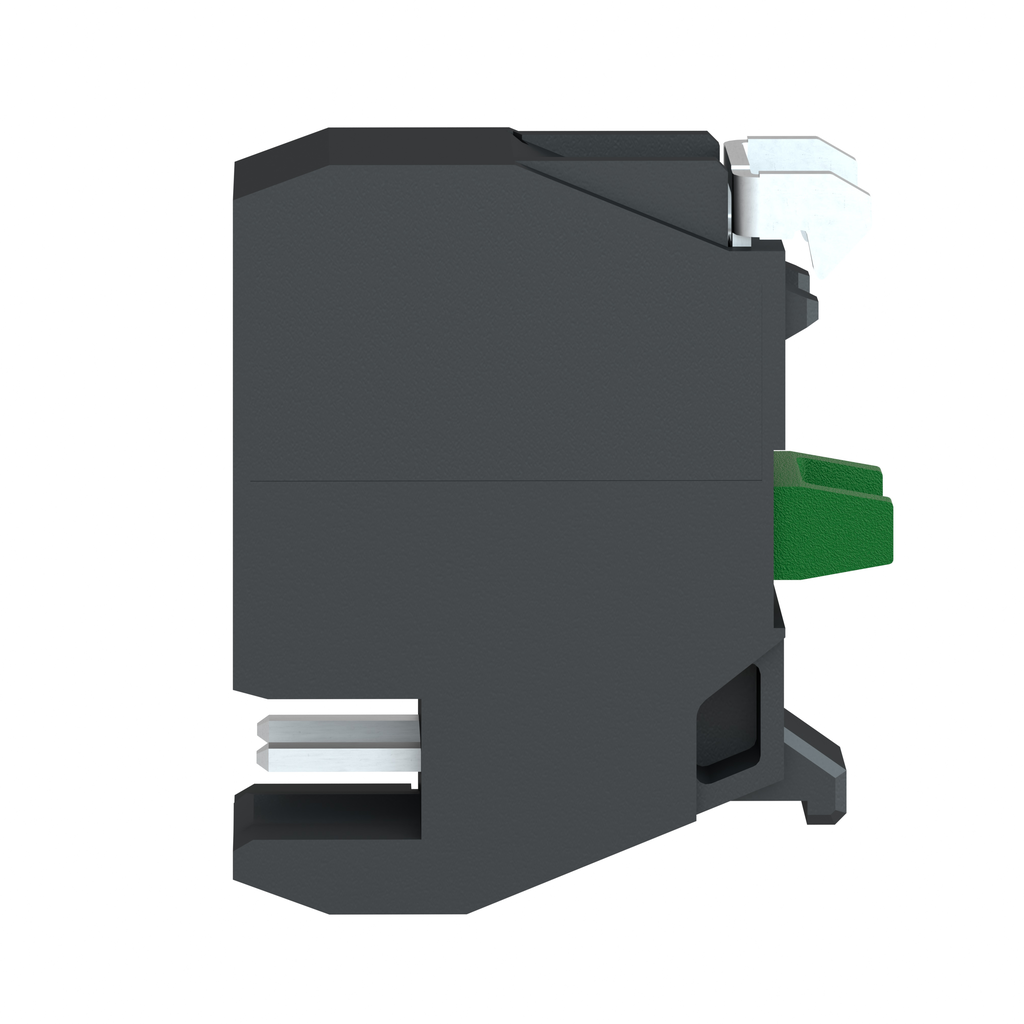

Single contact block, Harmony XB4, silver alloy, plug-in connector, 1NO

• Contacts Usage: standard contacts
• Range Of Product: Harmony XB4 || Harmony XB5
• Contact Block Type: single
• Product Or Component Type: contact block
• Ip Degree Of Protection: IP20 IEC 60529
• Connections - Terminals: plug-in connector
• Sale Per Indivisible Quantity: 5
• Contact Operation: slow-break
• Device Short Name: ZBE

Contractual warranty

• Warranty: 18 months

Complementary

• Mounting Of Block: front mounting
• Contacts Type And Composition: 1 NO
• Short-Circuit Protection: 4 A cartridge fuse gG EN/IEC 60947-5-1
• Operating Force: 2.3 N NO changing electrical state
• Operating Travel: 2.6 mm NO changing electrical state) || 4.3 mm total travel)
• Contacts Material: silver alloy (Ag/Ni)
• Positive Opening: without
• Electrical Composition Code: C11 3 ) || C14 2 ) || M10 2 )
• [Ith] Conventional Free Air Thermal Current: 10 A EN/IEC 60947-5-1
• Net Weight: 0.011 kg
• [Uimp] Rated Impulse Withstand Voltage: 4 kV EN 60947-1
• Device Presentation: basic element
• Electrical Durability: 1000000 cycles, AC-15, 1 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 1.5 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.15 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
• [Ui] Rated Insulation Voltage: 250 V 3)EN 60947-1
• [Ie] Rated Operational Current: 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A300 EN/IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1
• Mechanical Durability: 10000000 cycles

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1808008EN
• Sustainable Offer Status: Green Premium product
• Toxic Heavy Metal Free: Yes
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc: Yes
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: X
• Circularity Profile: ENVEOLI1808008EN
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Product Certifications: CSA || UL || DNV || GL || LROS (Lloyds register of shipping) || BV
• Ambient Air Temperature For Operation: -40-70 °C
• Standards: JIS C8201-5-1 || UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C8201-1
• Shock Resistance: 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Vibration Resistance: 5 gn 2-500 Hz)IEC 60068-2-6
• Ambient Air Temperature For Storage: -40-70 °C
• Protective Treatment: TH
